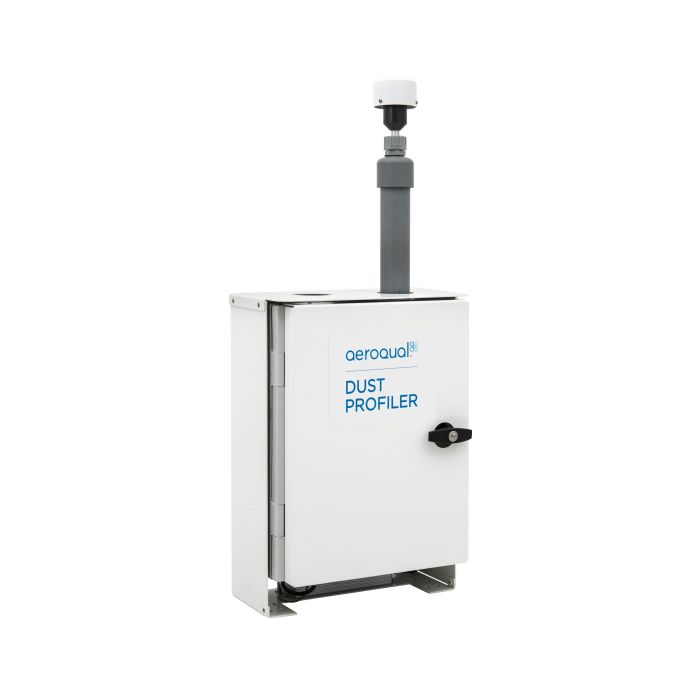

Description / Aeroqual Dust Profiler Dust Monitor
Designed for those who want maximum data from a single monitor, the Dust Profiler provides continuous and simultaneous measurement of PM10, PM2.5, PM1, and TSP. This breadth of measurement is valuable in research and monitoring studies, and industrial applications where more than one size fraction is of interest.
The Profiler comprises an optical particle counter that converts counts to a mass fraction via a proprietary algorithm stored in the system firmware. Measurements are logged and reported in real-time. The Dust Profiler is configured to display and log particle mass by default. However, there is also an option to configure the instrument to record particle counts.
The particle counter uses scattered light to measure and count particles. Light from a laser diode is collimated to illuminate the aerosol sample flow. When a particle is present it scatters the incident laser light which is detected using a 60 degree solid angle elliptical mirror at right angles to the laser beam. The amount of scattered light is converted to a voltage pulse and the amplitude of the pulse is calibrated to a particle diameter. The particles are thus assigned on the basis of size to one of eight channels. An on-board temperature sensor corrects for thermal drift, and a sheath air filter keeps the optics clean even in harsh environments.
The instrument includes an embedded PC, with over 20 years of on board data storage, and two powerful software systems as standard. Aeroqual Connect is the instrument operating software. It opens in your browser so no software needs to be installed or updated. With Aeroqual Cloud you can remotely access data on any device even when your instrument is offline. There are also several options available including: wireless communications, SMS and email notifications and weather sensors. The instrument is packaged in a robust, lockable enclosure and is light enough for one person site installations. Solar shields prevent the enclosure from overheating in climates with high solar irradiance.
Dust Profiler Options (how to order)
Note: The Dust Profiler is highly customizable to fit your every need. Please review the options closely to ensure you choose the right configuration for your application. Please call if you have any questions or need help configuring the right sensor for your application.
Optional Integrated Sensors
The Dust Sentry can be configured with additional environmental sensors.
Novalynx Pyranometer - Novalynx silicon pyranometer for measuring solar radiation.
Cirrus Noise Sensor - Cirrus Class 1 outdoor noise sensor with automatic calibration.
Met One MSO - Met One MSO multi-sensor: wind speed, wind direction, barometric pressure, air temperature, relative humidity.
Gill WindSonic Sensor - Gill WindSonic ultrasonic wind speed & direction sensor.

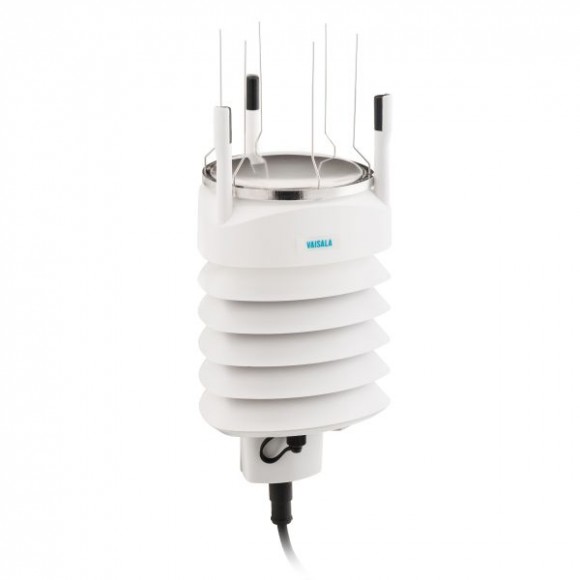

Vaisala Weather Transmitter - Vaisala multi-sensor with integrated heater, mounting kit and bird spike: wind speed, wind direction, precipitation, barometric pressure, air temp., relative humidity.
Auxiliary Module - Interface between designated third party sensors and embedded PC.
Optional Integrated Communications
Cellular IP Modem - Compact five-band GSM/GPRS/EDGE/UMTS/HSPA/3G IP gateway pre-configured for remote Connect/Cloud access (excl. SIM)
4-20mA and Relay Ouput - Output module for 4-20mA (4-channel) and relay (2-channel)
Email/SMS Alerts - Unlimited email alerts and up to 50 SMS/text alerts per month (fee per year)
Auto Data Export - Auto export data to email and FTP server (fee per year)
Software Packages
Support Software License (FREE)- Includes: table view; calibration; maintenance; diagnostics; map view; journal; and 1-month view historical data (for remote diagnostics and instrument support)
Basic Software License - Includes Support features plus: Basic charts; CSV data download; SMS/Email alerts; FTP/data export; Cloud API; and 12-month view historical data (annual license per instrument)
Plus Software License - Includes Basic features plus: Advanced charts; network view; wind roses; pollution roses; and unlimited historical data view (annual license per instrument)
Downloadable Dust Profiler - Dust Monitor Manual
More Information
| Manufacturer | Aeroqual |
|---|---|
| Detection Technology | Optical Particle Counter (OPC) |
| Power Requirements | 100-260VAC (standard): 15W / 24W* Regulated 12VDC (if required): 15W / 24W* |
| Accuracy | <±(5 µg/m3 + 15% of reading) |
| Lower Detectable Limit | <1 µg/m3 |
| Sample Flow Rate | 1.0 LPM |
| Ambient Temperature Range | -10°C to +50°C |
| Enclosure Type | Lockable IP65 GRP cabinet with integrated aluminium solar shield armour Inlet: 36cm heated inlet |
| Data Logging | 32GB Hard Drive (>20 years data storage) |
| Averaging Period | 1 min, 5 min, 10 min, 15 min, 30 min, 1 hr, 2hr, 4 hr, 8 hr, 12 hr, 24 hr |
| Dimensions (LxWxH) | 483H x 330W x 187D mm (including solar shield armour & mounting brackets) |
| Mounting | Pole, tripod and wall mounting brackets included |
| 47mm Sample Filter (Optional) | 47mm filter for particle loading analysis |
| Outputs | RS232 (legacy mode) 2 x Relay (optional) 4 x 4-20mA (optional) |
| Communication Protocol | Standard: WIFI, Ethernet (LAN) Optional: Cellular IP GPRS modem |
| Warranty | 1 Year |
| Audible Alarm | Yes |
| Calibration | Annually |
| Sensor Life | 2 Years |
| Range | PM1 PM2.5 PM10 TSP 200 µg/m3 2000 µg/m3 5000 µg/m3 5000 µg/m3 |
| Unit Features | -Measures TSP & PM1/PM2.5/PM10 -Over 20 Years of On-Board Storage -Highly Customizable Unit |
| Sensor Range | PM1/PM2.5/PM10/TSP |
| Resolution | 1 µg/m3 |
| Sensor Range | PM1/PM2.5/PM10/TSP |
