UV Based Analyzer

UV Based Ozone Analyzers offer the best and most precise measurement of ozone gas. Using a UV light and photometer allows for measurement of ozone levels without cross sensitivities associated with other detection methods.

Monitor ID	Range	Resolution	Internal Sample Pump	Features	Price
Low Range Analyzers
UV-100	0-900 ppm	0.01 ppm	Yes	-Accuracy = 2% of reading -10 Second response time -0-2.5 VDC & 4-20 mA output	$5,100
UV-106L	0-100 ppm	0.1 ppb	Yes	-Accuracy = 0.01 ppm or 2% or reading -10 Second response time -USB, RS-232, 0-2.5 VDC, 4-20 mA outputs -Internal datalogging Rental Option	$5,300
UV-202	0-250 ppm	0.1.5 ppb	Yes	-Accuracy = 1.5 ppb or 2% of reading -20 Second response time -USB, RS-232, 0-2.5 VDC, 4-20 mA outputs -Internal datalogging	$5,200
UV-205	0-250 ppm	0.1 ppb	Yes	-Accuracy = 1 ppb or 2% of reading -4 Second response time -Dual Beam Design -USB, RS-232, 0-2.5 VDC, 4-20 mA outputs -Internal datalogging	$7,100

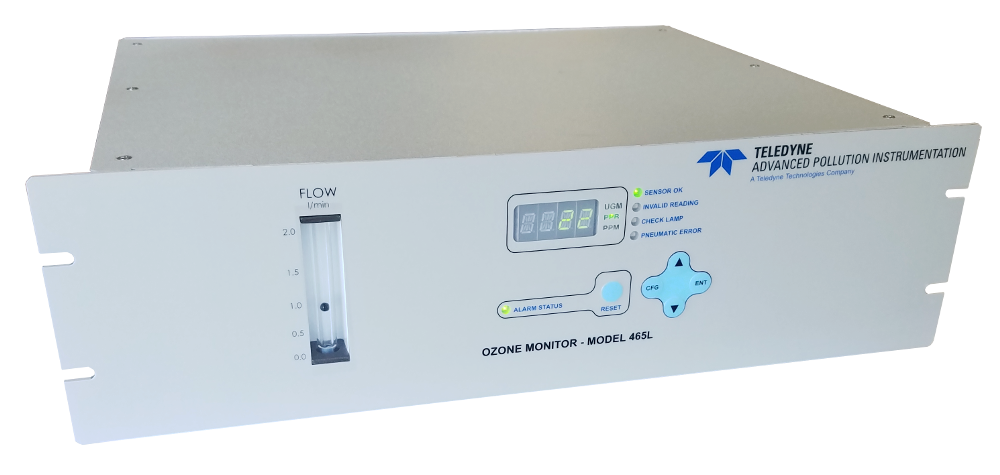

M465L	0-500 ppm	0.001 ppm	Yes	-Accuracy = 0.5% of full scale -30 Second Response Time -Rack or NEMA mount -5 VDC, 4-20 mA output -Multi-channel option	Call for price
Medium Range Analyzers
UV-106M	0-1,000 ppm	0.01 ppm	Yes	-2% Accuracy -10 Second sample time -5 VDC, 4-20 mA output -Internal Datalogging Rental Option	$5,300
UV-106MH	0-10,000 ppm	0.1 ppm	Yes	-2% Accuracy -10 Second sample time -USB, RS-232, 0-2.5 VDC, 4-20 mA output -Internal Datalogging	$5,800

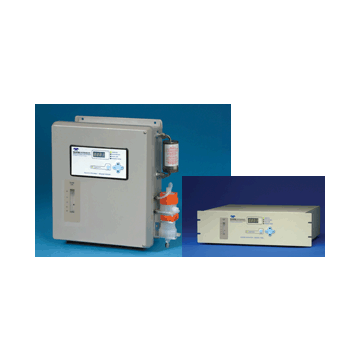

M465M	0-10,000 ppm	1 ppm	Yes	-Accuracy = 0.5% of scale -45 second response time -Rack or NEMA mount -Optional sample Conditioner -5 VDC & 4-20 mA output	Call For Price
High Concentration Ozone Analyzers
UV-HCR	0-400 g/m3 0-25%	0.1 g/m3 0.01 %	No	-LCD Display with trend graph -Simple to use design -Low Cost -Fast Response Time	Call For Price
M452	0-400 g/m3 0-25%	0-15 VDC	No	-Compact OEM Design -0-15 VDC Output -RS-232 or RS485 -Fast Response Time	Call For Price
M454	0-400 g/m3 0-25%	0.1 g/m3 0.01 %	No	-Fast Sampling Time (real-time) -Simple to use design -Compact DIN mount desing -4-20 mA output	Call For Price
UV-106H	0-400 g/m3 0-20%	0.1 g/m3 0.01 %	No	-User Settable Ranges and units -2-second response time -Integrated datalogging -4-20 mA output Rental Option	$5,800
M465H	0-400 g/m3 0-25%	0.1 g/m3 0.01 %	No	-User Settable Ranges and Units -Fast Response Time -Simple to use design -Best Accuracy -Rack or NEMA mount	Call For Price
Calibration Source
Model 306	0 ppb 30-1,000 ppb	1 ppb	Yes	-Compact ozone calibration source -Calibrate ozone monitors	$6,300
Measure Ozone in Water
UV-106-W	0-100 ppm	0.1 ppm	No	-Measure Ozone In water	$16,800
