GX-3R Pro Gas Detector
The GX-3R Pro is the world’s smallest 5-gas monitor weighing only 4.58 ounces and fits in the palm of your hand (2.9” W x 2.6” H x 1.06” D). It simultaneously monitors and displays 5 different gases. In addition to monitoring standard confined space gases, LEL, O2, CO, & H2S, the GX-3R Pro has a 5th channel where you can add infrared or toxic gas sensors (Hydrogen Cyanide (HCN) and Nitrogen Dioxide (NO2) sensors are currently available for the GX-3R Pro). Two of the four sensor slots have interchangeable sensors providing flexible configurations, which can easily be changed in the field.
As low as
$400.00
1 week lead time from the manufacturer
Related Products
Check items to add to the cart or
Benefits:
Compact and Lightweight: The GX-3R Pro is the world's smallest 5-gas monitor, weighing only 4.58 ounces and fitting in the palm of your hand. Its dimensions are 2.9” W x 2.6” H x 1.06” D, making it highly portable and convenient to carry.
Simultaneous Monitoring: It can simultaneously monitor and display data for 5 different gases, allowing for comprehensive gas detection in real-time.
Wide Gas Range: In addition to standard confined space gases like LEL, O2, CO, and H2S, the GX-3R Pro offers a 5th channel where you can add infrared or toxic gas sensors, such as Hydrogen Cyanide (HCN) and Nitrogen Dioxide (NO2), enhancing its versatility and applicability.

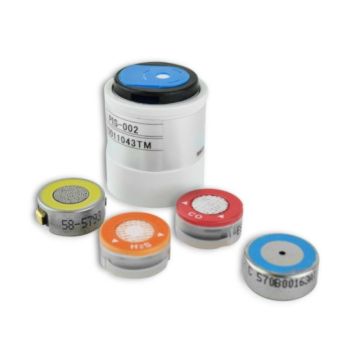

Interchangeable Sensors: Two of the four sensor slots are designed for interchangeable sensors, providing flexibility in sensor configurations. These sensors can be easily changed in the field, optimizing adaptability.
Availability of Additional Sensors: The availability of new toxic gas sensors, such as Hydrogen Cyanide (HCN) and Nitrogen Dioxide (NO2), adds to the options for monitoring hazardous gases.

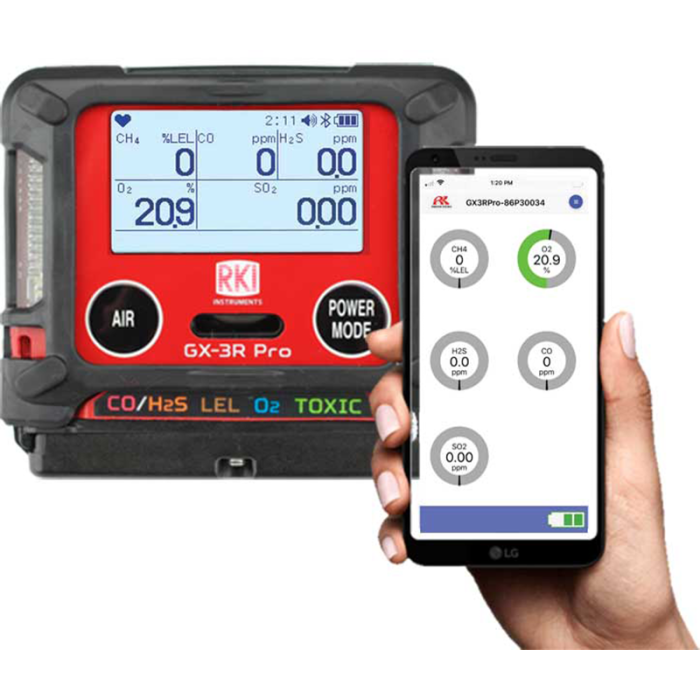

Bluetooth Wireless Communication: The GX-3R Pro comes equipped with Bluetooth wireless communication, enabling direct gas reading display on a phone app, available for both iOS and Android devices. This feature enhances data accessibility and remote monitoring capabilities.
Man-Down Alarm: The device includes a man-down alarm feature, which can be crucial for worker safety in hazardous environments.
Power Supply Options: Users have the choice between alkaline or rechargeable power supply options, providing flexibility in power management.
Long Battery Life: The Lithium-ion battery pack offers an impressive 25-hour operating time and can fully charge in just 3 hours, ensuring extended use without frequent recharging.
Warranty: The GX-3R Pro comes with a 3-year warranty, offering peace of mind and support for an extended period.
Non-Compliance Indicator: The instrument features a non-compliance indicator that notifies users with flashing LED lights in specific conditions, such as when the instrument has not been bump tested, calibration is due, or there was a gas alarm event. This feature helps ensure instrument reliability and safety compliance.
Adjustable Notification Interval: The 30-second interval for the non-compliance indicator is adjustable, allowing customization to suit specific monitoring needs.
Standard Accessories:
- Alligator clip
- Protective rubber boot
- Charger
- Calibration adapter
Applications:
- Personal monitoring
- Confined spaces
- Refineries/petrochemical
- Utilities
- Oil and Gas
- Water/wastewater
- Fire services
- Construction
Datalogging:
10 seconds = 10 hours
5 minutes = 300 hours
10 minutes = 600 hours
Instrument logs user ID, station ID, Calibration & bump test history, Alarm Events & Alarm Interval Trends

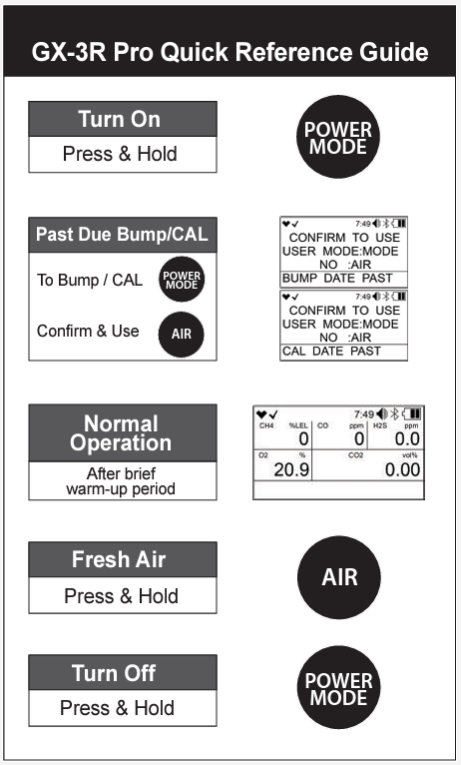

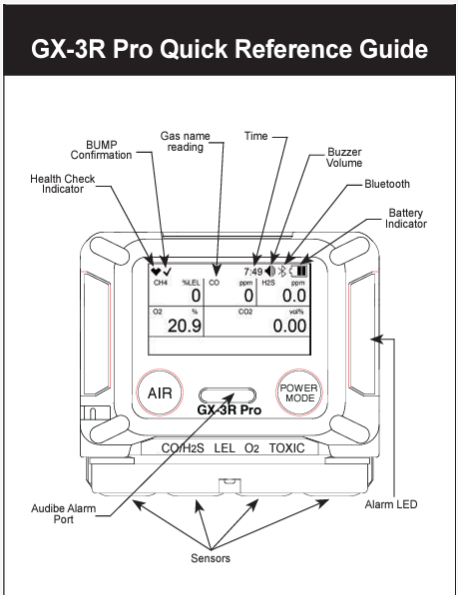

Quick Start Guide:
Specifications:
| Gas: | Detection Range: | Alarm Set Points: | Continuous Operation: |
| Carbon Monoxide (H2 Compensated) | 0-2000 ppm |
A1: 25 ppm A2: 50 ppm A3: 1200 ppm WA: 25 ppm STEL: 200 ppm |
|
| Hydrogen Sulfide (H2S) | 0-200 ppm |
A1: 5 ppm A2: 30 ppm A3: 100 ppm TWA: 1.0 ppm STEL: 5.0 ppm |
|
| Combustible Gases | 0-LEL (1% LEL) |
1st: 10% LEL 2nd: 25% LEL 3rd: 50% LEL Over:100% LEL
|
|
| Oxygen (O2) | 0-40% Vol |
Low 1: 19.5% Low 2: 18.0% High: 23.5% Over: 40.0%
|
|
| Hydrogen Cyanide (HCN) | 0-30 ppm |
A1: 5.0 ppm A2: 10.00 ppm A3: 30.00 ppm TWA: 4.7 ppm STEL: 10 ppm |
|
| Ammonia (NH3) | 0-400 ppm |
A1: 25.0 ppm STEL: 1.0 ppm A2: 35.0 ppm TWA: 0.30 ppm A3: 300.0 ppm |
|
| Nitrogen Dioxide (NO2) | 0-20 ppm |
A1: 2.00 ppm A2: 4.00 ppm A3: 20.00 ppm TWA: 0.20 ppm STEL: 1.00 ppm |
|
| Phosphine (PH3) | 0-20 ppm |
A1: 0.30 ppm STEL: 1.0 ppm A2: 0.60 ppm TWA: 0.30 ppm A3: 0.60 ppm |
|
| Sulfur Dioxide (SO2) | 0-100 ppm |
A1: 2 ppm A2: 5 ppm A3: 100 ppm TWA: 0.25 ppm STEL: 0.25ppm |
|
| Carbon Dioxide (CO2) |
0-10% Vol 0-10000 ppm |
A1: 0.50% Vol. A2: 3.00% Vol. A3: 4.00% Vol. TWA: 0.50% Vol. │ STEL: 3.00% Vol.
A1: 5,000 ppm A2: N/A TWA: N/A STEL: N/A |
Alarms:
| Alarm | Methods |
| Gas Alarm | Trouble Alarm |
| Flashing LEDs, continuous buzzer, flashing gas value, vibration | Flashing LEDs, intermittent buzzer, display of error message |
Common Specifications:
| Sample Method |
Diffusion
|
| Response Time |
T90 in 30 seconds
|
| Datalogging: |
10 sec. intervals = 1- hrs. 5 min. intervals = 300 hrs, 10min. intervals = 600 hours Logs user ID, station ID, Calibration & Bump Test history, Alarm Events & Alarm Interval Trends
|
| Battery Options |
Alkaline battery pack only Alkaline and Li-Ion battery pack with 100-240 VAC Charger Li-Ion battery pack with 100-240 VAC Charger Li-Ion battery pack with 12 VDC charger and vehicle plug Li-Ion battery pack only (no charger) Li-Ion battery pack with 100-240 VAC and 12 VDC chargers Li-Ion battery pack with 100-240 VAC charger and USB charger
|
| Display |
Full dot LCD with Autobacklight and Autorotation
|
| Operating Temp. & Humidity |
-20°C ~ +50°C -40°C ~ +60°C
|
| Dimensions |
2.9” W x 2.6” H x 1.06” D
|
| Case Material |
Dust and water resistant to IP-66/68 (2m,1h) approval. Drop height 23 ft
|
| Bluetooth Communication |
BLE: with iOS and Android phone app: RK Link
|
Power Sources:
| Config | Li-ion | Alkaline |
| 4-gas + EC | 25 hours | 16 hours |
| 4-gas + EC with Bluetooth | 23 hours | 14 hours |
| 4-gas + IR | 16 hours | 7 hours |
| 4-gas + IR with Bluetooth | 15 hours | 6 hours |
Manuals:
- Manual
| Manufacturer | RKI Intruments |
|---|---|
| Description | The GX-3R Pro is the world’s smallest 5-gas monitor weighing only 4.58 ounces and fits in the palm of your hand. It simultaneously monitors and displays 5 different gases. |
| Call For Price | Yes |
| Gas | Carbon Monoxide (CO), Combustible, Hydrogen Sulfide (H2S), Oxygen (O2) |
| 4-20 mA Output | No |
| Field Replaceable Sensor | No |
| Min, Max, Avg | No |
| Voltage Output | None |
| Datalogging | No |
| Rechargeable | Yes |
| Field Replaceable Battery | Yes |
| Warranty | 1 Year |
| Audible Alarm | Yes |
| Features | The GX-3R Pro is the world’s smallest 5-gas monitor weighing only 4.58 ounces and fits in the palm of your hand. It simultaneously monitors and displays 5 different gases. |
| Mobile | Fixed |
| Sampling Method | Fan |
| Unit Features | - Smallest & lightest 5 gas monitor - Simple 2-button operation - Large LCD Auto-backlit display • 25 hours of operation (Lithium-ion battery) - Field replaceable sensors & filters - Water and dust resistant design, IP66/68 |
| Sensor Range | Gas Depedent - Over 20 Different Gas Variations |
