High Hydrocarbon Gas Sensor
High Hydrocarbon Gas Sensor for the D12-IR. (00-1376)
- SKU
- ATI 00-1376
Related Products
Description / High Hydrocarbon Gas Sensor

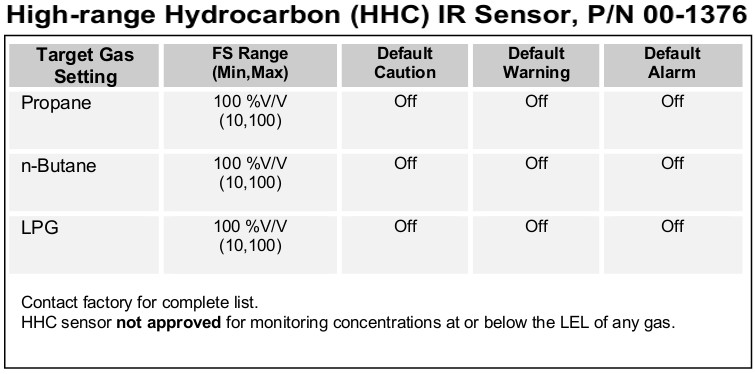

This High-range Hydrocarbon (HHC) sensor has a range of 0-100%VOL and is designed to monitor high concentrations of hydrocarbon gas in locations where high concentrations are likely to exist normally, and usually above the UEL of the respective gas. Gases listed in this sensor’s table include Propane, n-Butane, and LPG. Each gas must be span calibrated at the factory to permit its selection in the field. This sensor is not recommended for Methane, and is not recommended for monitoring concentrations at or below the LEL of any gas.
All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.Â
**Calibration Service Request Form **
|
Calibration costs do vary, see below to get an estimate:Â Calibration Fee: $150 Analyzer Calibration Fee: $300 PM Calibration Sensor Fee: $330 Genie Calibration Fee: $265 ATI Calibration Fee: $205 ** note that prices are subject to change per labor and parts required. |
More Information
| Manufacturer | ATI |
|---|---|
| Gas | Hydrocarbon (HC) |
| Sensor Type | GSS (Gas Sensitive Semiconductor) |
| Accuracy | . |
| Standard Range | 0-100%vol |
| Monitor sensor fits | D12-IR |
| Warranty | 1 Year |
