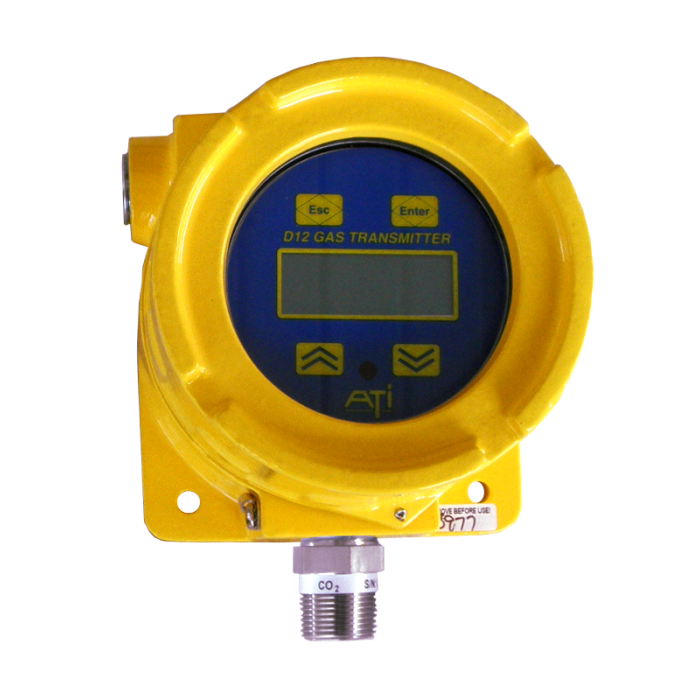

D12Ex-IR Infrared Toxic Gas Transmitter

ATI's D12-IR Infrared Toxic Gas Transmitter is a corrosion resistant enclosure that uses the compact IR sensor to meet hazardous area requirements. It can be used for detection of Methane, High Hydrocarbon (HC), Carbon Dioxide (CO2), or Nitrous Oxide (NOx).

As low as $1,725.00
ATI's D12-IR Infrared Toxic Gas Transmitter is great for measurement and data transmission of combustible gas (methane, ethane, propane, or butane), carbon dioxide, volumetric methane, or nitrous oxide to a remote display and alarm equipment in a 3-wire mode. It offers reliable service since it uses the compact IR sensor.  These gas sensors will have a longer life and provide gas measurement stability because of the infrared sensing technology.  Although the presence of silicon vapors, hydrogen sulfide, and halogenated hydrocarbons can quickly degrade sensor performance. Because the IR gas sensor is always in active state, the infrared transmitter continuously monitors critical sensor functions and indicates any sensor problems, both on the display and via the analog output.


D12-IR Features:

LCD Graphics Display: Gas concentrations are displayed in large, easy to read numbers. The display also provides alarm indication and complete menus for setting up operating parameters. A backlight is standard for good visibility in low light.

Internal Data Logger: Measured gas values are stored at user definable intervals and can be recalled when needed on the LCD display. Data can be downloaded using the MODBUS™ interface.

Non-Intrusive Operation: Operating functions such as calibration, alarm setup, alarm reset, data view, and setup options are all available using a magnetic tool. It is not necessary to open the enclosure when making adjustments.

Password Protection: Program settings stored in the transmitter may be protected by a user selectable 4-digit password. Operators may still review all functions, but changes may only be made by authorized personnel.

Modular Electronics: The D12 electronic assembly plugs easily into the power supply board in the base of the enclosure. Transmitters can be removed for wiring and quickly replaced in the event of a fault condition.

Explosion Proof Enclosure: Transmitters are designed for operation in hazardous areas. The cast aluminum housing for the D12 transmitter is rated for Class 1, Division 1, Group B, C, D locations and is UL, FM, and CSA certified.

Scalable 4-20 mA: The output range for a particular sensor is programmable within the range boundaries set in that sensor.

Explosion-proof Sensor Design: Infrared sensing element is protected by stainless steel housing and flame arrestor.

Fail-safe Sensor Operation: Because the IR sensor is always in active state, the transmitter continuously monitors critical sensor functions and indicates any sensor problems, both on the display and via the analog output.

High Range Methane Measurement: D12-IR transmitters can be factory calibrated for volumetric methane measurement in special applications. Ranges from 0-10% to 0-100% by volume are available. A separate sensor is also available for high percent level measurements of heavier hydrocarbons such as butane and propane.

Sensor Calibration History: Each time a sensor is zeroed or spanned, the data is stored in memory. Calibration history can be recalled and sensor condition reviewed by operating personnel when necessary.

Three Internal Alarm Relays: Optional relay outputs can be used for local alarm functions. All relays are programmable for set point, hysteresis, on-delay, off-delay, and other variables. Even a remote reset feature is provided for in the transmitter design.

Analog Output Simulation: Transmitter analog output can be set to user definable values. This provides for complete loop testing without the need to apply gas to the sensor.

Relay Output Simulation: Alarm relays may be activated on command to allow testing of local alarm devices. Any combination of relays may be activated based on operator selection. Output and alarms may also be inhibited for maintenance and calibration.

Serial Communication Interface: The transmitter is available with either HART™ or MODBUS™ protocol. The HART™ protocol supports the HART™ Universal and Common Practice Commands at 1200 baud using the Bell 202 FSK modem standard. The MODBUS™ protocol supports 9600 baud access to concentration and status information, and supports alarm setup and many other functions on either RS485 or RS232 (software selectable).

 D12-IR comes in a corrosion resistant enclosure using the compact IR sensor to meet hazardous area requirements

D12-IR Summary:

ATI's Series D12 Gas Transmitter line now includes a versatile infrared system that can be configured for LEL or select toxic gases. The D12-IR utilizes a compact IR sensor in a corrosion resistant housing with sintered flame arrestor to meet hazardous area classification requirements, and is suitable for most plant environments.

The D12-IR gas transmitter eliminates the poisoning inherent in catalytic bead sensors. While these gas detection sensors offer reliable service, the presence of silicon vapors, hydrogen sulfide, and halogenated hydrocarbons can quickly degrade sensor performance. Infrared sensing technology is not susceptible to these potential interferes. This means the gas sensors will have a longer life and provide gas measurement stability.

D12-IR gas transmitters can be factory calibrated for volumetric methane measurements in special applications. The infrared gas transmitters are available by volume in ranges 0-10% to 0-100%. A separate gas sensor is also available for high percent level measurements of heavier hydrocarbons such as butane and propane.

The D12-IR gas transmitter can also be configured with infrared sensors for carbon dioxide (CO2) or nitrous oxide (N2O) gas detection. All gas detection sensor versions can operate in diffusion mode for ambient air or with a flow cell for pumped samples.

Because the IR gas sensor is always in active state, the infrared transmitter continuously monitors critical sensor functions and indicates any sensor problems, both on the display and via the analog output.

Gas transmitters are designed for operation in hazardous areas. The cast aluminum housing for the D12 gas transmitter is rated for Class 1, Division 1, and Group B, C, D locations, and the gas transmitter is UL, FM, and CSA certified.

The D12-IR gas transmitter is available with either HART™ or MODBUS™ or protocol. The HART™ protocol supports the Universal and Common Practice Commands at 1200 baud using the Bell 202 FSK modem standard. The MODBUS™ protocol supports 9600 baud access to concentration and status information, and supports alarm setup and many other functions on either RS485 or RS232 (software selectable).



D12 Options (how to order):

Note: The D12 is highly customizable to fit your every need.  Please review the options closely to ensure you choose the right configuration for your application.  Please call if you have any questions or need help configuring the right sensor for your application.

Transmitter Type:
Choose Electrochemical sensor for toxic gas applications.  Choose combustible gas sensor for combustible gasses and environments.  Either configuration is available with or without the optional alarm board.

Sensor Module:
Choose the gas and range of detection required for your application

Digital Output:
Standard 4-20 mA output is provided with all sensors
HART interface is available for all sensors

Modbus interface is only available for RS-485 sensors, and 115 VAC sensors.



D12 Specifications:

Sensor Type Single path Non-dispersive Infrared (NDIR)
Range User adjustable within limits of selected sensor
Response Time 90% in 10 seconds
Accuracy Generally ±5% of value, but limited by available calibration gas accuracy
Repeatability  ±1% (Electronic)
Linearity  ±0.5% (Electronic)
Zero Drift Less than 1% full scale per month, non-cumulative
Span Drift Dependent on operating environment but generally less than 1% per month
Analog Output 4-20 mA, 675 ohms maximum at 24 VDC
Power Requirements         12 - 30 VDC, 350 mA maximum in 3-wire connection
Serial Interface: HART™ (1200 baud modem interface )
MODBUS™ (1200-9600 – RS232 or RS485, s/w  selectable)
Alarm Relays: Three SPDT, 5 A @ 230 VAC resistive
Relay Coil: Programmable either normally energized or normally deenergized.
Controls: 4 magnetic switches on front of transmitter
Enclosure Explosion-proof, Class 1, Div. 1, Groups B, C, & D.
Display Graphics LCD, 96w x 32h, backlit, transflective



D12 Sensor Dimensions



Replacement Sensors for D-16
Product Maximum Range Minimum Range Range Resolution Price
Plug-in Smart sensor
ATI Acetic Acid vapor Sensor 0-100 ppm (00-1045)
0-500 ppm 0-100 ppm 0-100 ppm 1 ppm
$435.00
Plug-in Smart sensor
ATI Acetylene Sensor 0-500 ppm (00-1057)
0-2000 ppm 0-200 ppm 0-2000 ppm 1 ppm
$380.00
Plug-in Smart sensor
ATI Acid Gases Sensor 0-20 ppm (00-1038)
0-200 ppm 0-10 ppm 0-20 ppm 0.1 ppm
$435.00
Plug-in Smart sensor
ATI Alcohol Sensor 0-200 ppm (00-1043)
0-500 ppm 0-50 ppm 0-200 ppm 1 ppm
$380.00
Plug-in Smart sensor
ATI Alcohol Sensor 0-2000 ppm (00-1044)
0-2000 ppm 0-500 ppm 0-2000 ppm 1 ppm
$380.00
Plug-in Smart sensor
ATI Ammonia Sensor 0-1000 ppm (00-1011)
0-2000 ppm 0-500 ppm 0-1000 ppm 1 ppm
$540.00
ATI Ammonia Sensor 0-200 ppm (00-1010)
ATI Ammonia Sensor 0-200 ppm (00-1010)
0-500 ppm 0-50 ppm 0-200 ppm 1 ppm
$435.00
Plug-in Smart sensor
ATI Arsine Sensor 0-10 ppm (00-1025)
0-200 ppm 0-10 ppm 0-100 ppm 0.1 ppm
$563.00
Plug-in Smart sensor
ATI Arsine Sensor 0-1000 ppb (00-1024)
0-2000 ppm 0-500 ppm 0-1000 ppm 1 ppb
$563.00
Plug-in Smart sensor
ATI Bromine Sensor 0-2 ppm (00-1000)
0-5 ppm 0-1 ppm 0-2 ppm 0.01 ppm
$380.00
 Plug-in Smart sensor
ATI Bromine Sensor 0-20 ppm (00-1001)
0-200 ppm 0-5 ppm 0-20 ppm 0.1 ppm
$355.00
Plug-in Smart sensor
ATI Carbon Dioxide Sensor 0-1% (00-1886)
0-1.5% 0-0.2% 0-1% 0.01%
$675.00
Plug-in Smart sensor
ATI Carbon Monoxide Sensor 0-200 ppm (00-1012)
0-1000 ppm 0-50 ppm 0-200 ppm 1 ppm
$355.00
ATI Chlorine Dioxide Sensor 0-1 ppm (00-1425)
ATI Chlorine Dioxide Sensor 0-1 ppm (00-1425)
0-5 ppm 0-1 ppm 0-1 ppm 0.01 ppm
$435.00
ATI Chlorine Dioxide Sensor 0-1000 ppm (00-1359)
ATI Chlorine Dioxide Sensor 0-1000 ppm (00-1359)
0-1000 ppm 0-200 ppm 0-1000 ppm 1.0 ppm
$485.00
00-1004 CLO2 sensor
ATI Chlorine Dioxide Sensor 0-2 ppm (00-1004)
0-5 ppm 0-1 ppm 0-2 ppm 0.01 ppm
$400.00
ATI Chlorine Dioxide Sensor 0-20 ppm (00-1005)
ATI Chlorine Dioxide Sensor 0-20 ppm (00-1005)
0-200 ppm 0-5 ppm 0-20 ppm 0.1 ppm
$375.00
ATI Chlorine Sensor 0-2 ppm (00-1002)
ATI Chlorine Sensor 0-2 ppm (00-1002)
0-5 ppm 0-1 ppm 0-2 ppm 0.01 ppm
$400.00
ATI Chlorine Sensor 0-20 ppm (00-1003)
ATI Chlorine Sensor 0-20 ppm (00-1003)
0-200 ppm 0-5 ppm 0-20 ppm 0.01 ppm
$355.00
Plug-in Smart sensor
ATI Diborane Sensor 0-10 ppm (00-1027)
0-200 ppm 0-10 ppm 0-10 ppm 0.1 ppm
$540.00
Plug-in Smart sensor
ATI Diborane Sensor 0-1000 ppb (00-1026)
0-2000 ppm 0-500 ppm 0-1000 ppb 1 ppb
$590.00
Plug-in Smart sensor
ATI Dimethylamine (DMA) Sensor 0-100 ppm (00-1450)
0-200 ppm 0-100 ppm 0-100 ppm 1 ppm
$495.00
Plug-in Smart sensor
ATI Ethylene Oxide Sensor 0-20 ppm (00-1039)
0-200 ppm 0-20 ppm 0-20 ppm 0.1 ppm
$380.00
Plug-in Smart sensor
ATI Flourine Sensor 0-20 ppm (00-1007)
0-20 ppm 0-5 ppm 0-20 ppm 0.1 ppm
$355.00
Plug-in Smart sensor
ATI Fluorine Sensor 0-2 ppm (00-1006)
0-5 ppm 0-1 ppm 0-2 ppm 0.01 ppm
$380.00
Plug-in Smart sensor
ATI Formaldehyde Sensor 0-1000 ppm (00-1349)
0-2000 ppm 0-500 ppm 0-1000 ppm 1 ppm
$600.00
Plug-in Smart sensor
ATI Formaldehyde Sensor 0-20 ppm (00-1040)
0-200 ppm 0-20 ppm 0-20 ppm 0.1 ppm
$400.00
Plug-in Smart sensor
ATI Germane Sensor 0-10 ppm (00-1029)
0-200 ppm 0-10 ppm 0-10 ppm 0.1 ppm
$540.00
Plug-in Smart sensor
ATI Germane Sensor 0-1000 PPB (00-1028)
0-200 ppm 0-10 ppm 0-1000 ppb 1 ppb
$590.00
Plug-in Smart sensor
ATI Hydrocarbon Sensor (00-1516)
0-500 ppm 0-50 ppm 0-1000 ppm 1 ppm
$465.00
Plug-in Smart sensor
ATI Hydrogen Bromide Sensor 0-20 ppm (00-1455)
0-200 ppm 0-10 ppm 0-20 ppm 0.1 ppm
$435.00
Plug-in Smart sensor
ATI Hydrogen Chloride Sensor 0-20 ppm (00-1017)
0-200 ppm 0-10 ppm 0-20 ppm 0.1 ppm
$435.00
ATI Hydrogen Cyanide Sensor 0-20 ppm (00-1018)
ATI Hydrogen Cyanide Sensor 0-20 ppm (00-1018)
0-200 ppm 0-10 ppm 0-20 ppm 0.1 ppm
$435.00
Plug-in Smart sensor
ATI Hydrogen Fluoride Sensor 0-20 ppm (00-1019)
0-200 ppm 0-10 ppm 0-20 ppm 0.1 ppm
$465.00
00-1169 H2O2 Sensor
ATI Hydrogen Peroxide Sensor 0-1000 ppm (00-1169)
0-2000 ppm 0-200 ppm 0-1000 ppm 1 ppm
$575.00
Plug-in Smart sensor
ATI Hydrogen Peroxide Sensor 0-20 ppm (00-1042)
0-100 ppm 0-10 ppm 0-20 ppm 0.1 ppm
$400.00
Plug-in Smart sensor
ATI Hydrogen Selenide Sensor 0-10 ppm (00-1031)
0-200 ppm 0-10 ppm 0-10 ppm 0.1 ppm
$540.00
Plug-in Smart sensor
ATI Hydrogen Selenide Sensor 0-1000 ppb (00-1030)
0-2000 ppb 0-500 ppb 0-1000 ppb 1 ppb
$590.00
Plug-in Smart sensor
ATI Hydrogen Sensor 0-2000 ppm (00-1041)
0-2000 ppm 0-500 ppm 0-2000 ppm 1 ppm
$435.00
ATI Hydrogen Sensor 0-4% (00-1013)
ATI Hydrogen Sensor 0-4% (00-1013)
0-10% 0-1% 0-4% 0.01%
$410.00
ATI Hydrogen Sulfide Sensor 0-50 ppm (00-1020)
ATI Hydrogen Sulfide Sensor 0-50 ppm (00-1020)
0-200 ppm 0-10 ppm 0-50 ppm 0.1 ppm
$400.00
Plug-in Smart sensor
ATI Hydrogen Sulfide Sensor 0-500 ppm (00-1469)
0-1000 ppm 0-200 ppm 0-500 ppm 1 ppm
$465.00
Plug-in Smart sensor
ATI Iodine Sensor 0-2 ppm (00-1036)
0-5 ppm 0-1 ppm 0-2 ppm 0.01 ppm
$380.00
Plug-in Smart sensor
ATI Iodine Sensor 0-20 ppm (00-1037)
0-200 ppm 0-5 ppm 0-20 ppm 0.1 ppm
$355.00
ATI Nitric Oxide Sensor 0-200 ppm (00-1021)
ATI Nitric Oxide Sensor 0-200 ppm (00-1021)
0-500 ppm 0-50 ppm 0-200 ppm 1 ppm
$400.00
ATI Nitrogen Dioxide Sensor 0-20 ppm (00-1022)
ATI Nitrogen Dioxide Sensor 0-20 ppm (00-1022)
0-200 ppm 0-10 ppm 0-20 ppm 0.1 ppm
$380.00
Plug-in Smart sensor
ATI NOx Sensor 0-200 ppm (00-1181)
0-500 ppm 0-50 ppm 0-200 ppm 1 ppm
$380.00
Plug-in Smart sensor
ATI Oxygen Sensor 0-25% (00-1014)
0-25% 0-5% 0-25% 0.01%
$375.00
Plug-in Smart sensor
ATI Ozone Sensor 0-1,000 ppb (00-1163)
0-2,000 ppb 0-500 ppb 0-1000 ppb 1 ppb
$435.00
Plug-in Smart sensor
ATI Ozone Sensor 0-1000 ppm (00-1358)
0-1000 ppm 0-200 ppm 0-1000 ppm 1 ppm
$500.00
Plug-in Smart sensor
ATI Ozone Sensor 0-2 ppm (00-1008)
0-5 ppm 0-0.01 ppm 0-2 ppm 0.01 ppm
$400.00
Plug-in Smart sensor
ATI Ozone Sensor 0-20 ppm (00-1009)
0-200 ppm 0-0.1 ppm 0-20 ppm 0.1 ppm
$350.00
Plug-in Smart sensor
ATI Peracetic Acid Vapor sensor 0-2 ppm (00-1704)
0-5 ppm 0-1 ppm 0-2 ppm 0.1 ppm
$765.00
ATI Peracetic Acid Vapor sensor 0-20 ppm (00-1705)
ATI Peracetic Acid Vapor sensor 0-20 ppm (00-1705)
0-100 ppm 0-10 ppm 0-20 ppm 1 ppm
$715.00
Plug-in Smart sensor
ATI Phosgene Sensor 0-100 ppm (00-1016)
0-100 ppm 0-5 ppm 0-10 ppm 0.1 ppm
$540.00
Plug-in Smart sensor
ATI Phosgene Sensor 0-2ppm (00-1015)
0-5 ppm 0-1 ppm 0-2 ppm 0.01 ppm
$540.00
Plug-in Smart sensor
ATI Phosphine Sensor 0-10 ppm (00-1033)
0-200 ppm 0-10 ppm 0-10 ppm 0.1 ppm
$540.00
Plug-in Smart sensor
ATI Phosphine Sensor 0-1000 ppb (00-1032)
0-2000 ppb 0-500 ppb 0-1000 ppb 1 ppb
$590.00
Plug-in Smart sensor
ATI Phosphine Sensor 0-1000 ppm (00-1034)
0-2000 ppm 0-200 ppm 0-1000 ppm 1 ppm
$620.00
Plug-in Smart sensor
ATI Silane Sensor 0-10 ppm (00-1035)
0-200 ppm 0-10 ppm 0-10 ppm 0.1 ppm
$535.00
Plug-in Smart sensor
ATI Sulfur Dioxide Sensor 0-20 ppm (00-1023)
0-200 ppm 0-10 ppm 0-20 ppm 0.1 ppm
$380.00

Downloads:

D12-IR Product Spec Sheet

D12-IR Product Manual

D12-IR Support Drawings



More Information
Manufacturer ATI
Call For Price No
Gas Carbon Dioxide (CO2), Methane (CH4), Nitric Oxide (NO)
4-20 mA Output Yes
Field Replaceable Sensor Yes
Auto Test Generator None
Min, Max, Avg No
Voltage Output None
Power Requirements 12-30 VDC
Datalogging No
Rechargeable No
Field Replaceable Battery Yes
Warranty 1 Year
Unit Features -XP CLass-1, Div-1 Rated - 4-20 mA Output - Remote Sensor Options - Optonal Auto-Test - Digital Communications - Inferred Sensor Detection Method
Sensor Range

Gas Dependent

Integrated Relays Yes
Sensor Range Gas Dependent
Write Your Own Review
You're reviewing:D12Ex-IR Infrared Toxic Gas Transmitter
Your Rating
We found other products you might like!
Loading...
