K-5520A Hydrogen Peroxide

K-5520A Peroxide Kit is used to determine Peroxide levels from 25-250 ppm.

Replacement ampoules for the K-5520A Test Kit can be found here.

Hydrogen Peroxide Information

2-5 Business Days
SKU
K-5520A
  $73.00

Description / K-5520A Hydrogen Peroxide

Why Choose HR CHEMets kits?

HR CHEMets®  is the new way to test at high ranges and replaces the now discontinued VACUettes product line. This product's measurement ranges overlaps with the discontinued K-5510B test kit.

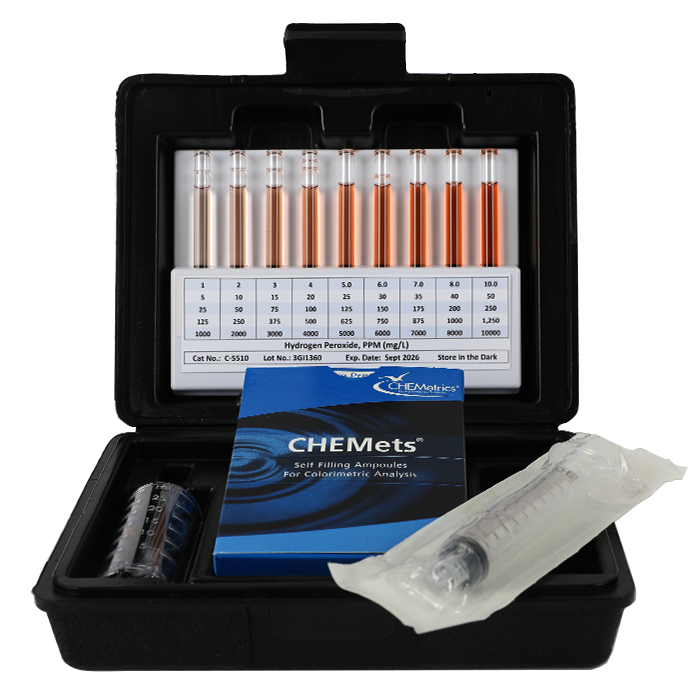

Included:

     -30 self-filling Ampoules

     -Comparator

     -Diluter snapper cup

     -Micro test tube

     -Instruction Manual

Method:

The Hydrogen Peroxide CHEMets®1 test method employs theferric thiocyanate chemistry.² In an acidic solution, hydrogen peroxide oxidizes ferrous iron. The resulting ferric iron reacts with ammonium thiocyanate to form ferric thiocyanate, a red/orange colored complex, in direct proportion to the hydrogen peroxide concentration.
Ferric iron and peracetic acid (PAA) will produce high test results. Cupric copper also interferes with the test. Testing for peroxide in the presence of PAA or cupric copper requires a modified test procedure.



1. Place a pipette tip firmly onto the end of the MiniPet®4 (fig. 1). Note: Use a fresh pipette tip for each test.  2. Depress the plunger on the minipet. Immerse the tip in the sample to be tested and release the plunger. A portion of the sample will be drawn into the tip (fig. 2).
3. Hold the minipet over the empty sample cup, and depress the plunger to dispense sample (fig. 3). 4. Dilute the contents of the sample cup to the 25 ml mark with distilled water (fig. 4).

5. Add solutions to the sample cup in the following order (fig. 5).

5 drops S-1404 Stabilizer

5 drops S-1405 Catalyzer (green)

5 drops S-1406 Activator (blue)

6. Immediately place the CHEMet ampoule, tip first, into the sample cup. Snap the tip. The ampoule will fill leaving a bubble for mixing (fig. 6).

To mix the ampoule, invert it several times, allowing the bubble to travel from end to end. Dry the ampoule. Obtain a test result  5 minutes after snapping the tip.

7. Obtain a test result by placing the ampoule between the color standards until the best color match is found (fig. 7).

NOTE: Use the concentration scale on the comparator label that corresponds to the range of the test procedure being used.

0 - 10,000 ppm Test Procedure

  1. Using the syringe provided, obtain 3 mL of the sample to be tested and dispense it into the empty Sample Prep Cup.
  2. 2. Dilute to the 15 mL mark with distilled water. Perform the entire 0 - 2000 ppm Test Procedure using this pre-diluted sample.

More CHEMetrics Kits for Hydrogen Peroxide:

Titretsoxid
Product Number Method MDL Range
K5530 Ceric Sulfate Tirant with Ferroin Indicator 0.10% 0.1-1.0% (up to 20% with dilution)
Vacuettes
Product Number Method MDL Range
K5520D Ferric Thiocyanate 5 ppm 5-50 ppm
K5520A Ferric Thiocyanate 10 ppm 25-250 ppm
K5520B Ferric Thiocyanate 20 ppm 125-1250 ppm
K5520C Ferric Thiocyanate 200 ppm 1000-10,000 ppm
Chemets Kits
Product Number Method MDL Range
K5502 DPD 0.025ppm 0-0.5 ppm
K5510 Ferric Thiocyanate 0.05 ppm 0-0.8 & 1-10 ppm
Vacu-Vials
Product Number Method   Range
K5513 DPD   0-3.0 ppm
K5543 Ferric Thiocyanate   0-6.00 ppm



Downloads:

K-5520A Instructions

Safety Data Sheets

Hydrogen Peroxide Tech Sheet

More Information

Manufacturer CHEMetrics
Gas Hydrogen Peroxide (H2O2)
4-20 mA Output No
Voltage Output None
Power Requirements 4 AAA Batteries
Datalogging No
Warranty 1 Year
Range 0-50 ppm and 60-600 ppm

We found other products you might like!

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
i-2016
$631.00

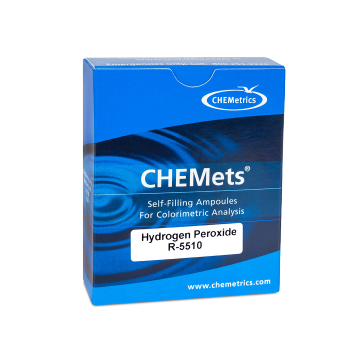

R-5510
