ATI Nitric Oxide Replacement Sensor 00-0093
ATI Nitric Oxide Replacement Sensor 00-0093

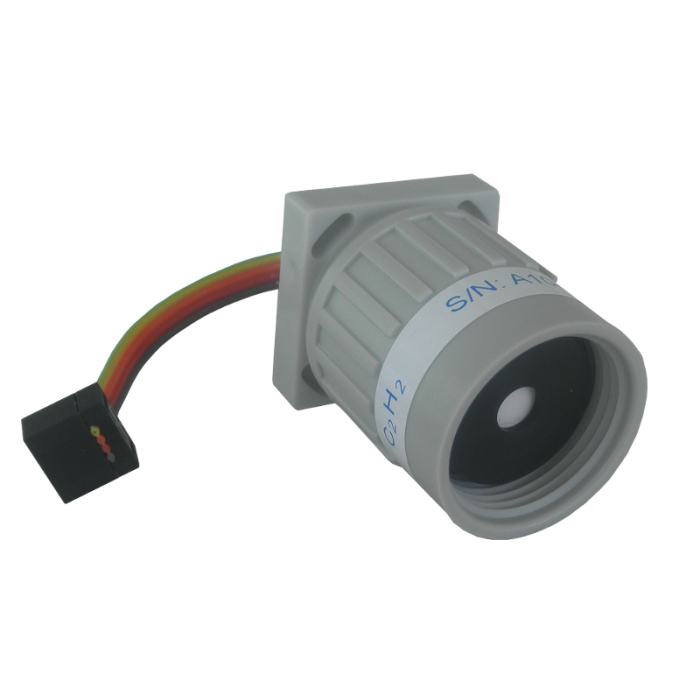

PN - 00-0093, A10-25 Nitric Oxide sensor. Replacement sensor for ATI A14/A11 or B12 Gas Detectors.
Replaces Nitric Oxide sensor, standard calibration range is 0-100 ppm Nitric Oxide detection.
- SKU
- ATI 00-0093
$253.00
Related Products
Description / ATI Nitric Oxide Replacement Sensor 00-0093
Replacement sensor for ATI A14/A11 or B12 Gas Detectors.
Replaces Nitric Oxide sensor, 0-100 ppm range
Sensor can be installed in existing transmitter and is a simply plug in connection. Sensor must be calibrated on transmitter for proper operation. For information on calibration follow this link, or contact our office.
More Information
| Manufacturer | ATI |
|---|---|
| Gas | Nitric Oxide (NO) |
| Sensor Type | Electrochemical Cell |
| Range | 0-100 ppm |
| Accuracy | Generally ±5% of value, but limited by available calibration gas accuracy. |
| Standard Range | 0-100 ppm |
| Minimum Range | 0-50 ppm |
| Maximum Range | 0-200 ppm |
| Monitor sensor fits | A14/A11, B12 |
| Sensitivity | 1.0 ppm |
| Operational Temperature Range | -25° to +55°C |
| Operational RH Range | 0-95% non-condensing |
| Warranty | 1 Year |
