K-2103 Chloride

K-2103 Chloride Vacu-Vials Kit is used to determine Chloride levels from 0-40.0 ppm.

Chloride Information


The K-2103 Chloride Kit was designed to accurately measure the levels of Chloride in water from 0-40.0 ppm. K-2103 uses the Ferric Thiocyanate Method. The Chloride Vacu-vials® test employs the ferric thiocyanate chemistry. Chloride reacts with mercuric thiocyanate to liberate thiocyanate ion. Ferric ion reacts with thiocyanate ion to produce an orange-brown thiocyanate complex in proportion to the chloride concentration. Results are expressed as ppm (mg/L) Cl-

Chloride is the most common inorganic anion found in water and wastewater. The Maximum Secondary Contaminant Level for drinking water for chloride is 250 mg/L. Natural sources of salt are the ocean and various salt deposits above and below ground. Chloride is very corrosive to most metals in systems with elevated pressures and temperatures such as boilers and oil-drilling equipment.

  *Contains mercury. Dispose according to local, state or federal laws

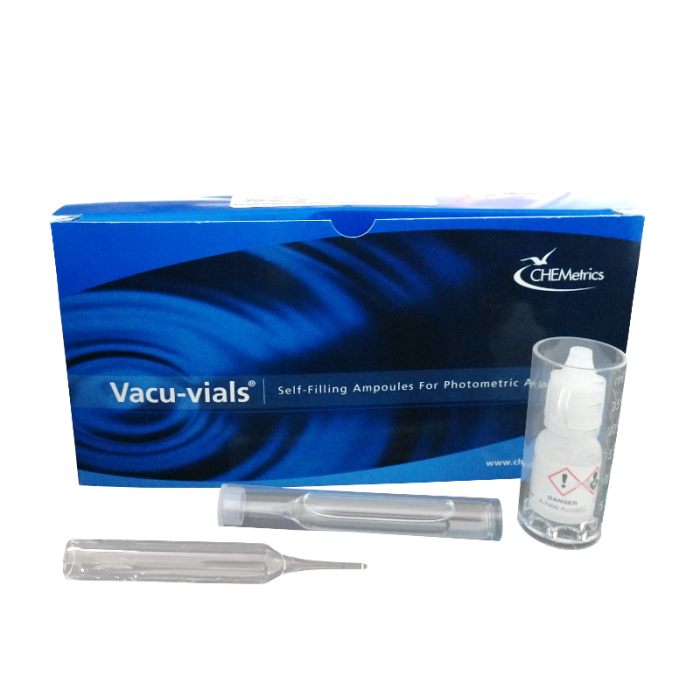

 What's included:

  • 30 Ampoules
  • 25 mL Sample Cup
  • Activator Solution
  • Ampoule Blank
  • 1 mL Syringe
  • Instruction Manual


How to use:

  1. The Instrument must be turned on.
  2. Put the Zero ampoule into the device and cover with the light shield piece to zero out the unit. (NOTE: This must be zeroed any time the unit is turned off and turned back on)
  3. Fill to the 20 mL mark in the sample cup with your water.Fill the sample cup to 25ml

  4. Add 1 mL of Activator Solution and stir the sample cup.
  5. Snap the end of the Vacu-vial in the water on the bottom/side of the 25 mL sample cup.Snap the tip of the ampoule on the bottom and side of the sample cup
  6. Mix the contents of the ampoule by tipping back and forth a few times.Tip the vacu-vial back and forth to mix
  7. Dry the vacu-vial and wait 1 minute for color development.Dry vacu-vial and then insert into the I-2019
  8. Place the vacu-vial ampoule into the device (flat end first) for readout.


K-2103 Instructions

Chloride Tech Sheet

Chloride Information


WARNING! This product can expose you to chemicals including methanol, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

More Information
Manufacturer CHEMetrics
Call For Price No
Gas Chloride
4-20 mA Output No
Voltage Output None
Power Requirements 4 AAA Batteries
Datalogging No
Warranty 1 Year
