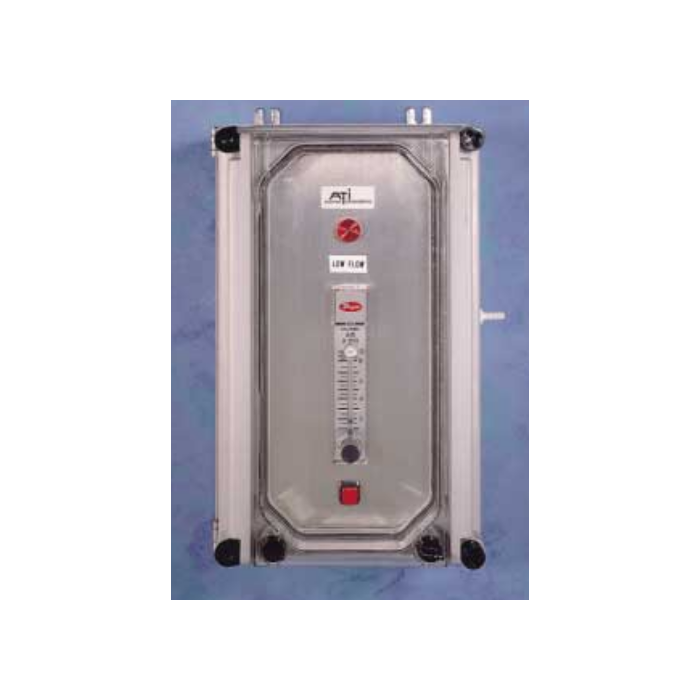

A21 Gas Sampler

A21 Gas Sampling System is designed to draw gas samples from ducts or other hard to access location, and deliver the sample to a gas sensor located in a more convenient location.


The A21 Gas Sampler is an electrically operated gas sampler that is designed to draw a gas sample from a duct, vent stacks, enclosed space or hard to reach location and deliver the sample to a gas sensor (like the D12 or B12) that is located in a more convenient spot. It is best to locate the gas sensor on the vacuum (inlet) side of the sample system to ensure the gas concentration is not affected.

In addition to the sampling pump, the A21 Gas Sampler contains the components necessary to insure reliable gas sample measurement.  A flowmeter is mounted on the front panel to allow the user to adjust the sample flowrate to the desired value (normally around 500 cc./min).  Internal to the system is a loss of flow detector that will warn of sampling system problems that could compromise the gas measurement system.  An alarm light on the front panel indicates "loss of flow" while an internal relay can be used to indicate this alarm remotely.

It's high quality diaphragm pump is operated by a brushless DC motor to provide continuous sample over long periods of time. These pumps are rated for over 10,000 hours of continuous operation, and the diaphragms in the pumps are able to be replaced easily when needed.  The pumps will draw gas samples against a vacuum of up to 10" Hg.


Typical installation of the A21 Gas Sampler

Response through tubing:

1/8” ID tubing at 29 seconds/ 100 feet

3/16” ID tubing at 65 seconds/ 100 feet

1/4” ID tubing at 116 seconds / 100 feet


A21 Options (Guide to ordering)

Power Supply:

120 VAC Version OR  12 VDC Version (operates from any 12 VDC power supply)


Inlet filter assembly (00-0703) - a special fitting is available with the A21 to insure that excessive amounts of dirt or particulate water do not enter the system.  The filter assembly consists of an inlet body and replacement membrane filter held in place by a screw on cap. A membrane is installed at the factory, and a package or spare filters is supplied.  The inlet filter assembly is designed for either insertion into a duct or pipe, or hang in an enclosed space.  A 1 1/4" NPT pipe thread is provided near the pack of the housing to adapt to pipes or ducts.  The rear of the housing contains a 1/4" ID soft tube fitting for sample line connection.  The filter will require replacement every 2-3 months (possibly more frequently depending on the location).

Optional Inlet Filter Assembly for the A21 sampling system


- Package of 10 replacement inlet filters (05-0026)


Power 120 Vac, 50/60Hz, 1 A OR 12VDC, 1A max
Pump 12 VDC powered diaphragm type
Flowrate Adjustable, 300 - 1000 cc/min, 500 cc/min recommended
Inlet Quick disconnect hose barb fitting for 1/4" ID flexible tubing
Outlet Hose barb for 1/4" ID flexible tubing

Low Flow alarm lamp on front panel
SPDT alarm relay for low flow remote indication
SPDT power fail relay located on DC power supply (120 VAC version only)

Enclosure NEMA 4X Fiberglass with clear polycarbonate window
Temperature Operating: -10 to 45 C
Storage: -25 to 55 C



A21 Product Spec Sheet

A21 Manual

A21 Dimensions Drawings

More Information
Manufacturer ATI
Call For Price No
Gas Acid Gases, Acteylene (C2H2), Alcohol, Ammonia (NH3), Arsine (AsH3), Bromine (Br2), Carbon Monoxide (CO), Chlorine (Cl2), Chlorine Dioxide (ClO2), Diborane (B2H6), Ethylene Oxide (ETO), Fluorine (F2), Formaldehyde (CH2O), Germane (GeH4), Hydrocarbon (HC), Hydrogen (H2), Hydrogen Chloride (HCl), Hydrogen Cyanide (HCN), Hydrogen Fluoride (HF), Hydrogen Peroxide (H2O2), Hydrogen Selenide (H2Se), Hydrogen Sulfide (H2S), Iodine (I2), Nitric Oxide (NO), Nitrogen Dioxide (NO2), Nitrogen Oxides (NOx), Oxygen (O2), Ozone (O3), Phosgene (COCl2), Phosphine (PH3), Silane (SiH4), Sulfur Dioxide (SO2)
4-20 mA Output No
Sensor Acid Gases 0-10 ppm
Field Replaceable Sensor No
Auto Test Generator None
Min, Max, Avg No
Voltage Output None
Power Requirements 120VAC or 12VDC
Datalogging No
Rechargeable No
Field Replaceable Battery No
Warranty 1 Year
Audible Alarm Yes
Range Adjustable
Unit Features

-Rated For Over 10,000 Hrs.

-Easily Replaceable Pumps

-Designed for Ducts, Vent Stacks, & Enclosed Spaces

Sensor Range


Integrated Relays Yes
Sensor Range Adjustable
