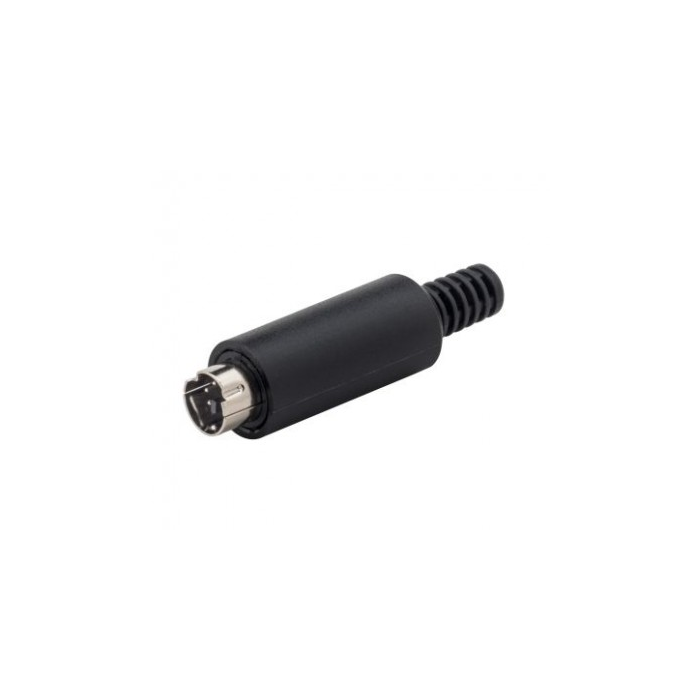

Plug-in Temp & RH Sensor

The Aeroqual Temp & Relative Humidity sensor is a plug-in device compatible will all Aeroqual Handheld monitors.

Series, 200, 300, 500

3 In Stock
SKU
AQ TRH
  $144.00

Description / Plug-in Temp & RH Sensor

Plug-in SHT7x Sensirion Temperature and Relative Humidity sensor designed specifically for use on the Series 200, 300, and 500 Portable Monitors. It can be used simultaneously with any gas sensor head connected to the base monitor to report temperature and relative humidity readings direct to the display. When used on the Series 500 Portable Monitor the data will also be logged direct to the device.



Relative Humidity:

Parameter: Conditions: Value: Units:
Accuracy tolerance Type ±1.5 %RH

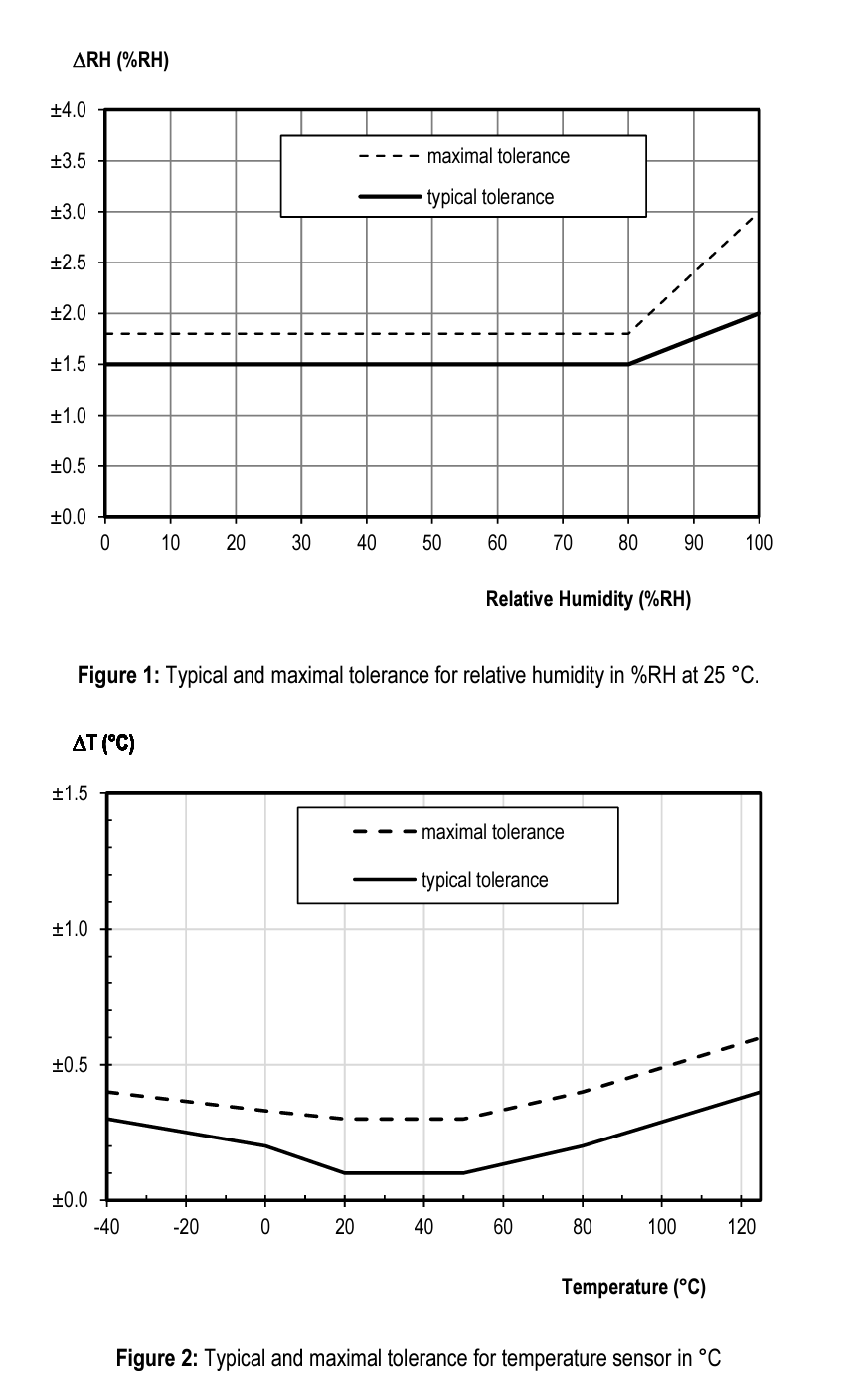

Max. see Figure 1 -
Repeatability Low type 0.21 %RH
Medium type 0.15 %RH
High type 0.08 %RH
Resolution Type 0.01 %RH
Hysteresis At 25 °C +/-0.8 %RH
Specified range Non-condensing environment 0 to 100 %RH
Response time τ63% 8ˆ6 s
Long-Term drift Typ. <0.25 %RH/y



Parameter: Conditions: Value: Units:
Accuracy tolerance Type 20°C to 50°C ±0.1 °C
Max. see Figure 2 -
Repeatability Low type 0.15 °C
Medium type 0.08 °C
High type 0.04 °C
Resolution Type 0.01 °C
Operating range - -40 to 105 °C
Response time Ï„ 63% >2 s
Long-Term drift Typ. <0.03 °C/y





Downloads:

Datasheet









More Information

Manufacturer Aeroqual
Quickbooks Stock Level 3.000000
Unit Features

Part Number#: AQ TRH

Warranty 1 Year
Monitor Type S-200, S-300, S-500
