Aeroqual Ammonia (NH3) Sensor Head 0-100 ppm (ENG)
Aeroqual Ammonia (NH3) Sensor Head 0-100 ppm (ENG)
The Aeroqual 0-100 ppm Ammonia Sensor Head is designed to provide accurate, consistent readings of the ammonia in your ambient airspace. It can serve as a replacement to your existing Ammonia head, or can add ammonia-sensing capability to your current Aeroqual monitor!
- SKU
- AQ ENG
Related Products
Description / Aeroqual Ammonia (NH3) Sensor Head 0-100 ppm (ENG)
Ammonia (NH3) sensor head. Gas Sensitive Electrochemical (GSE) head will measure Ammonia from 0-100 ppm with a 0.1 ppm resolution providing a <±10% accuracy.
Detailed info sheet on Aeroqual Ammonia Sensor
Full list of technical information and specifications for all Aeroqual sensors
This head uses an active sensor technology with an internal fan to pull air accross the GSE sensor at a specific flow rate for accurate gas detection. The fan will pull a fresh gas stream across the GSE sensor every 120 seconds for accurate Ammonia detection.
This sensor head will be a direct fit onto any Series-300, Series-500 or Ranger Aeroqual ozone monitor. This head can be purchased as an addition to your existing monitor, or with a new base unit. To purchase with a base unit see our Aeroqual ozone monitor page. If you currently have an Aeroqual ozone monitor this sensor will be a direct fit for your current monitor.
Compare the Series 300 and 500, Aeroqual Ranger monitors:
| Compare the Aeroqual handheld devices |
|
|
|
| Interchangeable sensor head | Yes | Yes | Yes |
| Digital LCD Display | Yes | Yes | Yes |
| Min, Max, Average readings on screen | Yes | Yes | Yes |
| Field Replaceable Battery | Yes | Yes | Yes |
| Remote Sensor Capability | Yes | Yes | Yes |
| Temp and HR Sensor optional | Yes | Yes | Yes |
| External Control Outputs | Yes | Yes | Yes |
| Audible Alarm | Yes | Yes | Yes |
| High and Low Alarms | Yes | Yes | Yes |
| 0-5 VDC Analog output | Yes | Yes | Yes |
| Zero Calibration capability | Yes | Yes | Yes |
| Span Calibration capability | Yes | Yes | Yes |
| Internal Data Logging Capability | No | Yes | Yes |
|
PC connection cables and capability |
No | Yes |
Yes |
|
Built in wi-fi connection |
No | No |
Yes |
|
Hot-Swap Service |
Yes | Yes |
Yes |
Detailed Sensor Specifications for Aeroqual ambient sensors
Click on image to expand
Calibration:
This sensor is a Gas Sensitive Electrochemical (GSE) sensor. The Aeroqual ENG sensor has a detection range of 0-100 ppm, so the calibration gas you use must fall within this range. Refer to the table below for our recommended calibration gas options.
Range Range Range
Product
Range
Price
50ppm
25 ppm, 50 ppm, 100 ppm, 250 ppm, 300 ppm
Multiple Ranges
Call For Price

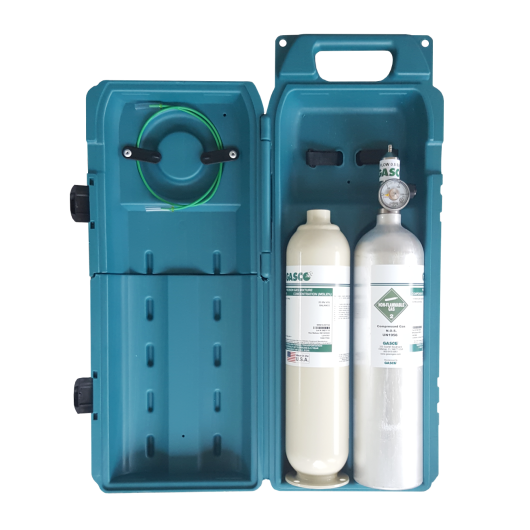

Ammonia Calibration - Kit 58L

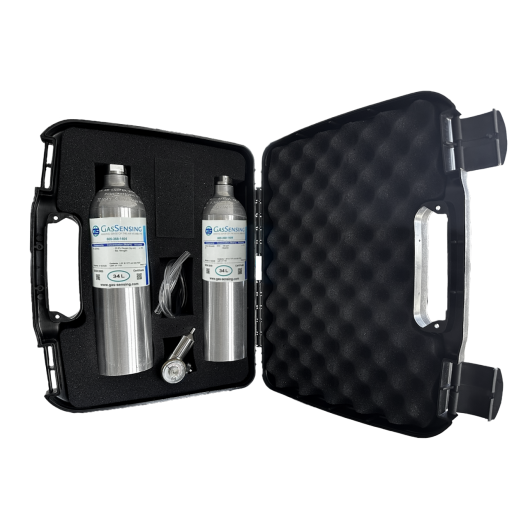

Ammonia Calibration Kit

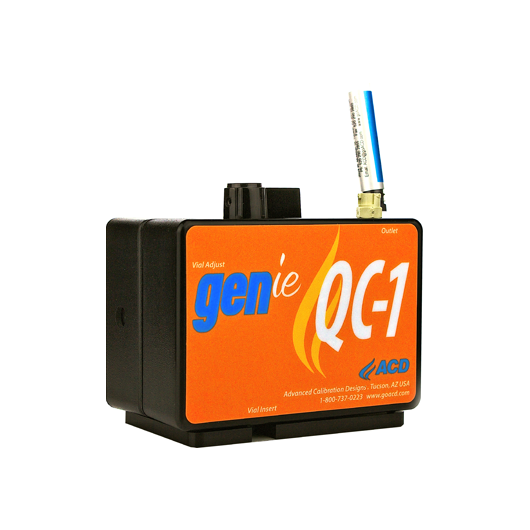

GENie QC-1 Ammonia Calibration System
Sensor Type:
There are two types of Aeroqual sensors, type 1 and type 2.
The type 1 is used with the S-200, S-300, S-500, Ranger and S-900 monitors.
The type 2 is calibrated specifically with fittings on the end allowing it to be used with the ENC enclosure and in the S930
All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.Â
More Information
| Manufacturer | Aeroqual |
|---|---|
| Gas | Ammonia (NH3) |
| Sensor Type | GSE (Gas Sensitive Electrochemical) |
| Range | 0-100 ppm |
| Maximum Exposure | 200 ppm |
| Monitor sensor fits | S-200 / S-300 / S-500, Series-900, Series-930, Ranger |
| Minimum Detection Limit | 0.2 ppm |
| Accuracy | < +/- 10 ppm |
| Resolution | 0.1 ppm |
| Response Time | <60 s |
| Sampling Method | Fan |
| Operational Temperature Range | 0 to 40°C |
| Operational RH Range | 10 to 90% |
| Warranty | 6 Month |
