BW Ozone Sensor 0-1ppm (SR-G04)
Replacement Ozone (O3) sensor for the GasAlert Extreme that reads 0-1ppm. Simply remove the old sensor and replace with this new pre-calibrated sensor.
- SKU
- Gaxt Repl O3 Sensor
Related Products
Description / BW Ozone Sensor 0-1ppm (SR-G04)
0-1 ppm Ozone (0.01ppm increments)

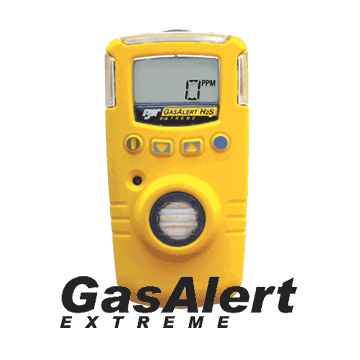

Replacement sensor for the GAXT-G-DL
To replace a sensor complete the following.
- Deactivate the detector.
- Remove the four machine screws on the rear shell and remove the rear shell.
- Remove the tow machine screws from the PCB.
- Remove the PCB. Place the PCB on a clean, non-conductive surface.
- Replace the sensor.
- Allow the new sensor 5 minutes to stabilize before use. For a new ETO or NO sensor, allow the new sensor 2 hours to stabilize before use.
- Re-assemble the detector. When assembling the detector, perform the following:
- Clean the seal on the front and rear shells with a soft damp clean cloth. Do no use solvents, soaps or polishes.
- Ensure the front and rear shells are properly aligned to ensure a proper environmental seal.
- Torque the screws to 3-4 in-lbs in a crisscross pattern to ensure a proper environmental seal. Do not over tighten.
More Information
| Manufacturer | Honeywell / BWT |
|---|---|
| Gas | Ozone (O3) |
| Standard Range | 0-1 ppm |
| Field Replaceable Sensor | Yes |
| Field Replaceable Battery | Yes |
| Monitor sensor fits | GAXT |
| Sensor Type | Electrochemical Cell |
| Accuracy | ± 5% of value |
| Alarms | Visual, Vibrating, Audible (95 dB) for Low, High, STEL, TWA |
| Operational Temperature Range | -4 to +122 F / -20 to +50 C |
| Operational RH Range | 15-95% Non-condensing |
| Warranty | 1 Year |
