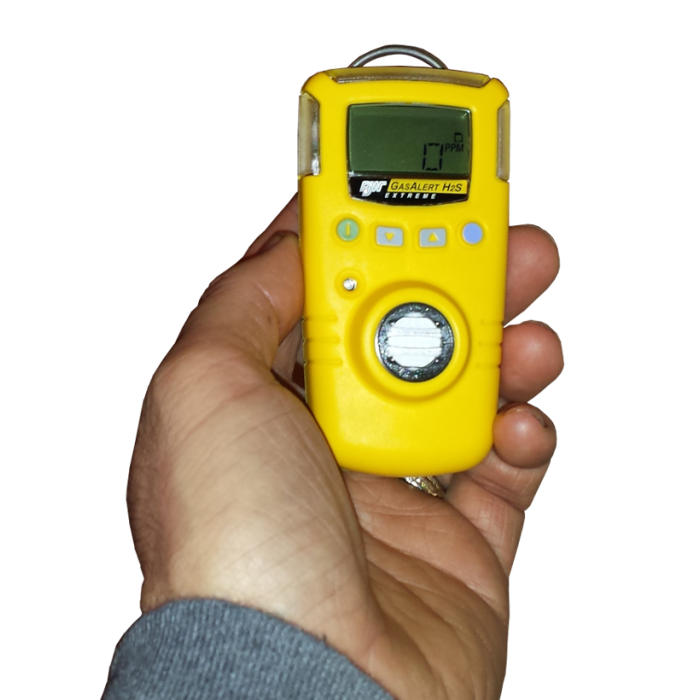

GasAlert Extreme H2S 0-100 ppm (GAXT-H-DL)
This hydrogen sulfide monitor is ideal for personnel safety monitoring. Its small size allows it to be comfortably worn for an entire work shift, and its various alarms (visual, vibrating, and audible) notify a worker immediately of dangerous hydrogen sulfide levels. The rugged design and 2-year warranty keep maintenance and replacement costs low. User-friendly features include long battery life, field-replaceable sensor (with MicroDock II Test and Calibration accessory), and configurable settings.
GAXT-H-DL has been replaced with the BW Solo H2S - CLICK HERE
- SKU
- GAXT-H-DL
Related Products
Description / GasAlert Extreme H2S 0-100 ppm (GAXT-H-DL)
GAXT-H-DL has been replaced with the BW Solo H2S - CLICK HERE
0-100 ppm Hydrogen Sulfide (H2S) Monitor with a 1 ppm resolution.
Along with the benefits and abilities mentioned above, the Gas Alert Extreme also inherits many of the features that you have come to expect as standards from BW:
- Real-time gas concentrations via continuous LCD
- Comfortable to wear due to its compact and lightweight design
- Water Resistant
- Simple, automatic calibration when combined with the MicroDock II Test and Calibration accessory
- Self-Tests on boot up for full-functionality (see table below)
- Bright wide-angled visual alarm bars
- Built-in concussion-proof boot
In addition, features of the GasAlert Extreme monitor family include:
- Vibrating alarm in addition to audible/visual alarms
- Internal datalogging
- Built-in languages include: English, French, German, Spanish, Portuguese
- Passcode protection to prevent tampering
GasAlert Extreme Standard Specifications
| Tests | Sensor integrity, circuitry, battery and audible/visual alarms on activation. Battery (continuous) |
| Pump |
Compatible with the Sampler motorized pump. |
| Typical Battery Life |
1.5 year battery life (typical) with replaceable 3V battery. |
| User Options |
|
| Ratings | EMI / RFI: Complies with EMC Directive 89/336/EEC IP 66/67 |
| Certifications and Approvals |
UL: Class I, DIv. 1, Gr. A, B, C, D American Bureau of Shipping ATEX: CE II 1 G T4 IECEx: Ex ia IIC T4 CE (European Conformity) |
| Warranty | Full two year warranty including sensors (One year NH3, Cl2, ETO, ClO2 sensors) |
Downloads:
.
More Information
| Manufacturer | Honeywell / BWT |
|---|---|
| Gas | Hydrogen Sulfide (H2S) |
| Sensor Type | Electrochemical Cell |
| Operational Temperature Range | -40 to +122 F / -40 to +50 C |
| Operational RH Range | 15 - 90 % (non-condensing) |
| Weight | 2.9 oz / 82 g |
| Dimensions | 1.1 x 2.0 x 3.75 inches |
| Alarms | Visual, Vibrating, Audible (95 dB) for Low, High, STEL, TWA |
| Datalogging | Yes |
| Datalogging Note | Datalogging requires accessory |
| Field Replaceable Sensor | Yes |
| Field Replaceable Battery | Yes |
| Warranty | 2 Year |
| Range | 0-100 ppm |
