Carbon Dioxide 0-5% Gas Sensor

Carbon Dioxide 0-5% Gas Sensor for the D12-IR. (00-1377)

Carbon Dioxide Information

SKU
ATI 00-1377
  $600.00

Description / Carbon Dioxide 0-5% Gas Sensor

This standard range Carbon Dioxide (CO2) sensor provides a “CO2” (1-5%VOL), and “Low-CO2” (2000-5000ppm) setting to improve the accuracy of readings for high and low concentrations of Carbon dioxide. The “shape” of the sensor’s response at lower concentrations differs from that at higher concentrations, and the accuracy of readings are improved by using the linearization that more closely fits the response of the sensor.

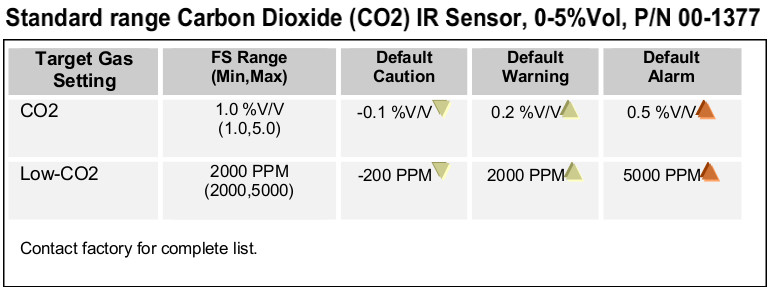

The standard range and target settings for the carbon dioxide sensor 00-1377

Carbon Dioxide Information





All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.

**Calibration Service Request Form **

Calibration Costs:

Calibration costs do vary, see below to get an estimate:

Calibration Fee: $150

Analyzer Calibration Fee: $300

PM Calibration Sensor Fee: $330

Genie Calibration Fee: $265

ATI Calibration Fee: $205

** note that prices are subject to change per labor and parts required.

More Information

Manufacturer ATI
Gas Carbon Dioxide (CO2)
Sensor Type GSS (Gas Sensitive Semiconductor)
Range 0-5%
Accuracy .
Standard Range 1-5% vol
Monitor sensor fits D12-IR
Warranty 1 Year
