K-7004D Nitrite

This product has been discontinued.

The replacement product is on its way!



K-7004D Nitrite Kit was designed to obtain Nitrite levels from 0-80 ppm

Replacement ampoules for the K-7004D Test Kit can be found here.

Nitrite Information

Call For Price

2-5 business days

Why Choose CHEMetrics Vacuettes kits?

VACUettes ampoules are designed for highly concentrated samples. They employ a patented auto-dilution feature that eliminates the need for a time-consuming and error-prone preliminary dilution. As a result, the entire test takes only 2 to 3 minutes, with a rate of accuracy comparable to a volumetric procedure. The basic design of these 7 mm ampoules is the same as CHEMets ampoules, however, a capillary tip is attached to the tip of each ampoule.

Safe and Reliable Results:

While traditional methods often require multiple steps and thorough preparation, these test kits allow you to obtain dependable results with a few simple steps. By simplifying the testing method, Vacuettes test kits reduce the potential for operator error. Additionally, each of the ampoules contained in the test kits is vacuum sealed which helps eliminate the problem of obtaining inaccurate results from stale or unstable reagents. These reagents are stored right in the tip of each ampoule and sealed in glass, thereby minimizing direct contact with the chemicals.

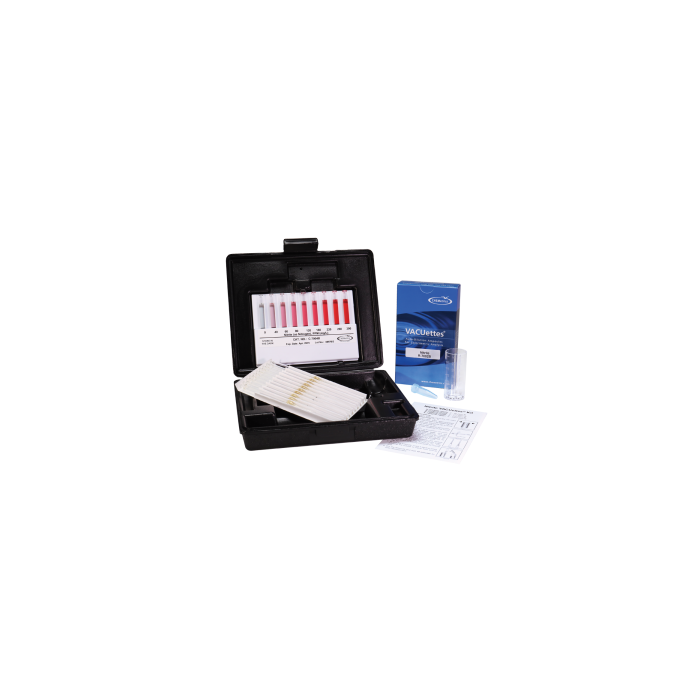

What's Included:

     -30 self-filling Ampoules

     -Comparator

     -Diluter snapper cup

     -Micro test tube

     -Instruction Manual



Method:

The K-7004D Nitrite Kit was designed to accurately measure the levels of Nitrite in water from 0-80 ppm. K-7004D uses the Azo Dye Formation Method, in which Nitrite diazotizes with a primary aromatic amine in an acidic solution to produce a highly colored azo dye. The intensity of the color is directly proportional to the concentration of nitrite in the sample. Nitrate will not interfere. Results are expressed as ppm (mg/L) NO2-N.

Nitrite, an intermediate in the nitrogen cycle, is formed during the decomposition of organic matter but readily oxidizes to form nitrate. These processes occur in wastewater treatment plants, water distribution systems, and natural waters. Nitrites are useful as corrosion inhibitors, preservatives, pigments, and in manufacturing many organic preservative chemicals. A Maximum Contaminant Level of 1 mg/L has been established by the USEPA for nitrite-nitrogen in drinking water.



1. Fill the diluter snapper cup to the -ml- mark with distilled water. 2. Fill the micro-test tube approximately halfway with the sample to be tested.
3. Holding the VACUette almost horizontally,
touch the tip to the contents of the micro-test
tube.
4. Place the VACUette between the vertical tip
guides on the inside of the dilutor snapper
cup and snap the ampoule tip.

5. To mix the ampoule, invert it several times,
allowing the bubble to travel from end to end.
6. Dry the ampoule. Obtain the test result 10 minutes after snapping the tip.
7. Place the ampoule into the center of the round comparator and hold it toward a source of light, viewing from the bottom. Rotate the comparator until the color below the ampoule shows the closest match. 8. For higher concentrations, use the flat comparator. Place the ampoule between the color standards, moving it along the comparator until you can determine the closest match.

For more detailed instructions, see the link at the bottom of the page.

P6508:

WARNING! This product can expose you to chemicals including ethylene glycol, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

More CHEMetrics Kits for Nitrite:

Titrets
Product Number Method MDS Range Price
K7025 Ceric Sulfate Titrant with Ferroin Indicator 250 ppm 250-2500 ppm as NaNO2 $33.00
K7050 Ceric Sulfate Titrant with Ferroin Indicator 500 ppm 500-5000 ppm as NaNO2 $33.00
Vacu-Vials
Product Number Method   Range Price
K7003 Azo Dye Formation   0-1.00 ppm as N $32.00
Chemets Kits
Product Number Method MDL Range Price
K7004 Azo Dye Formation 0.2 ppm 0-2.5 ppm as N $68.00
Vacuettes
Product Number Method MDL Range Price
K7004D Azo Dye Formation 4 ppm 0-80 ppm as N $61.00
K7004A Azo Dye Formation 10 ppm  0-170 ppm as N $61.00
K7004B Azo Dye Formation 20 ppm 0-300 ppm as N $61.00
K7004C Azo Dye Formation 200 ppm 0-3000 ppm as N $62.00



Downloads:

K-7004A-D Instructions

Safety Data Sheet

Nitrite Tech Sheet

Nitrite Information

More Information
Manufacturer CHEMetrics
Call For Price No
Gas Nitrite
4-20 mA Output No
Voltage Output None
Power Requirements 4 AAA Batteries
Datalogging No
Warranty 1 Year
