Q46/62-63 Residual Chlorine Monitor

Residual dissolved chlorine monitor.  Measure free chlorine or combined chlorine in water real time.

Display, control, and alarms are possible with the Q46 monitor.

Chlorine Information

SKU
q46-62-63

Customizable Options:

  $2,500.00

Description / Q46/62-63 Residual Chlorine Monitor

Monitor Your Chlorine Reagent Free!

Chlorine Monitor is an upgraded version of our proven Q45H system for continuous water quality monitoring of free or combined chlorine. Monitor capabilities have been expanded to include options for a 3rd analog output or for adding additional low power relay outputs. Digital communication options for Profibus DP, Modbus RTU or Ethernet IP have been added, as well.

 Residual Chlorine Measurement

The Q46H system uses a polarographic membraned sensor to measure chlorine directly, without the need for chemical reagents. When needed, automatic pH compensation may be added for highest free chlorine measurement accuracy. Systems are available to provide 4-20 mA outputs for chlorine, pH, and temperature to allow easy CT calculations.



Q46H systems are economical to purchase, economical to maintain, and provide long term accuracy and reliability for your chlorine monitoring needs.

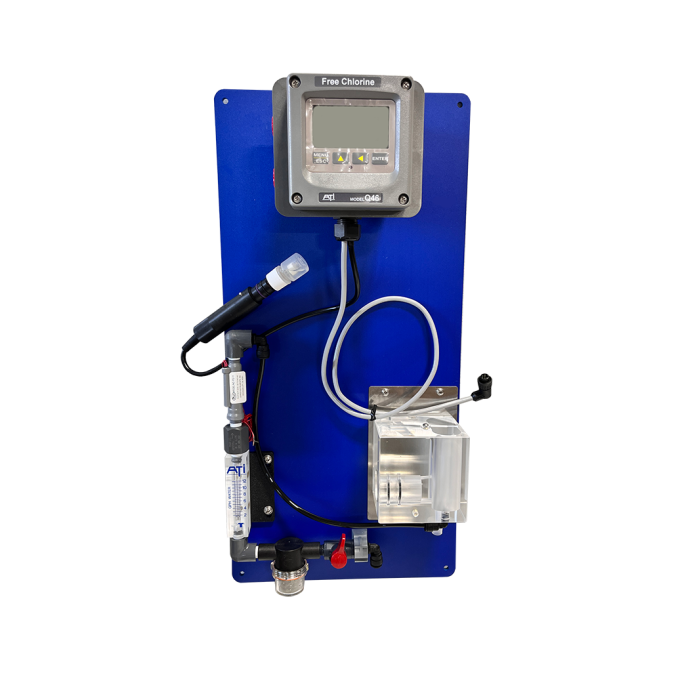

Chlorine sensor assembled to wall
Simple Installation
The Q46H can be supplied mounted to a panel for easy on-site installation.  Image shows the Q46 panel option will flow controls and flow switch, with the constant head flowcell, with the optional PH sensor added.

Sensor & Flowcell Options

Two types of chlorine sensors are available. One is designed for flowcell installation, and the other is for submersion applications. Free chlorine monitoring should always be done using a flowcell system. Good control of sample flow and pressure is important for accurate measurement. The standard constant-head flowcell should be used for most applications. A sealed flowcell and a low-volume flowcell are also available for special applications. Consult your ATI representative for application assistance.



Submersible combined chlorine sensors can sometimes be used for measuring total chlorine in wastewater effluent. Wastewater effluents containing more than 1 PPM of ammonia, often result in a chlorine residual that is more than 90% monochloramine. Direct measurement with a submersible sensor can provide a dependable monitor without all the sampling and chemicals associated with total chlorine measurement.

Submersion and flowcell sensors
Submersible and flowcell sensors
Sealed residual chlorine flow cell
Sealed Flowcell
Constant head flowcell for residual chlorine measurement
Constant head flowcell assembly

Sensor Stabilization

Chlorine sensors, especially free chlorine, require up to 8 hours of stabilization time when first installed or after membrane change. ATI offers a battery powered “polarizer” that can be used to stabilize a spare sensor so it is ready to run within a few minutes of installation. Polarizers simply plug into the sensor connector and require no adjustments.



Product Features



Free or Combined Chlorine

Q46H Monitors are factory set for either Free or Combined Chlorine measurement, but can easily be converted from one to the other in the field.

Economical Operation

Reagent-less operation and low parts cost makes the Q46H your best choice for chlorine monitoring applications in potable water, wastewater, cooling water, or high purity water systems.

Automatic pH Compensation

For free chlorine monitoring under widely varying pH conditions, automatic pH compensation may be added to maintain the highest measurement accuracy at pH levels up to 9.5.

Dual Chlorine/pH Monitoring

Even when pH correction is not required, adding a pH sensor to the system converts the monitor to a dual analyzer, providing 4-20 mA outputs for both chlorine and pH.

Flexibility

Programmable range options from 0-200 PPB up to 0-200 PPM provide maximum application flexibility.

AC or DC Power Options

Power options include universal 90-260 VAC or 12-24 VDC.

Analog Output Options

Two isolated 4-20 mA outputs are standard, with an option for a third output if required. Default setting provides analog outputs for chlorine and pH.

PID Output

Standard PID control function assignable to one analog output.

Digital Communications

Available in either Profibus-DP, Modbus-RTU or Ethernet-IP.

Relay Outputs

Three SPDT relays are standard, with relay functions programmable for alarm, control, or trouble indication. Three additional low power relays available as an option.

Flexible Mounting

NEMA 4X (IP-66) enclosure is suitable for wall, pipe, or panel mounting.

Clear Display

Back-lit large LCD display provides clear visibility in any lighting conditions. A scrolling second line on the display provides additional information and programming prompts.





Downloads:

Q46H/63 Combined Chlorine System Manual

Q46H/62 Free Chlorine System Manual

Q46H Residual Chlorine Monitor Brochure

Q46H Typical System Diagrams

Q46H System Drawings

 Links to more info:

Q46 Ethernet/IP Communications Manual

Q46 Modbus Communications Manual

Q46 Modbus TCP/IP Communications Manual

Q46 Profibus Communications Manual

Chlorine Information

More Information

Manufacturer ATI
Gas Chlorine (Cl2)
4-20 mA Output Yes
Relays 2 Alarm Relays + 2 Control Relays
Voltage Output None
Power Requirements 12-30 VDC, 120 VAC or 220 VAC 50/60 hz. please specify desired voltage when ordering
Datalogging No
Warranty 1 Year

We found other products you might like!

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.

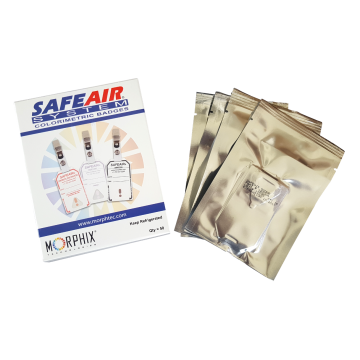

Each box comes with 50 badges, there are 10 badges in each bag.
