K-6002 Iron in Brine

K-6002 Iron in Brine Kit was designed to obtain Iron levels from 0-100 and 100-1000 mg/L

Replacement ampoules for the K-6002 Test Kit can be found here.

Iron Information

$78.00

Why Choose CHEMetrics Chemets kits?

CHEMetrics Chemets self-filing reagent ampoules are a great way to test for dissolved substances in liquids. These visual test kits allow you to obtain results by measuring the color of the sample according to the color comparators provided with the kit. This unique method allows you to attain results quickly and accurately with minimal contact with potentially hazardous materials.

Safe and Reliable Results

While traditional methods often require multiple steps and thorough preparation, these test kits allow you to obtain dependable results with a few simple steps. By simplifying the testing method, Chemets test kits reduce the potential for operator error. Additionally, each of the ampoules contained in the test kits is vacuum sealed which helps eliminate the problem of obtaining inaccurate results from stale or unstable reagents. These reagents are stored right in the tip of each ampoule and sealed in glass, thereby minimizing direct contact with the chemicals.

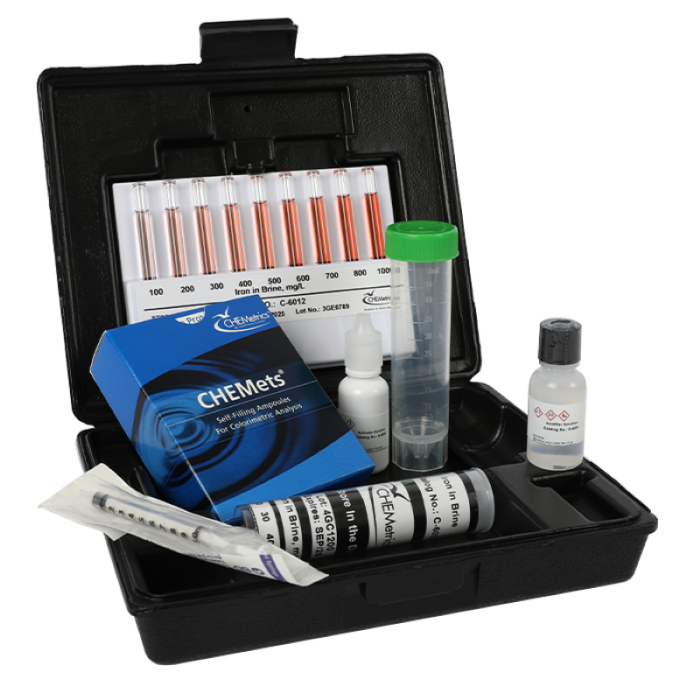

What's included:

  • 30 self-filling Ampoules
  • low and high-range comparators
  • 1 25 mL Sample Cup
  • Acidifier Solution
  • Activator Solution
  • 50 mL sample cup with cap
  • 1 mL syringe
  • Instruction Manual


Method

The K-6002 Iron in Brine Kit was designed to accurately measure the levels of Iron in brine from 0-100 and 100-1000 mg/L. K-6002 uses the Ferric Thiocyanate Method. The Iron in Brine test employs the ferric thiocyanate chemistry. In an acidic solution, hydrogen peroxide oxidizes ferrous iron. The resulting ferric iron reacts with ammonium thiocyanate forming a red-orange colored thiocyanate complex, in direct proportion to the iron concentration.

1. Using one of the syringes provided, obtain 0.5 mL of the sample to be tested, and then dispense it into the empty 50 mL cup. Using the other syringe, obtain 1.0 mL of Acidifier Solution and dispense it into the sample cup. 2. Add 5 drops of Activator Solution. Swirl the cup briefly and wait two minutes before diluting the contents of the sample cup to the 50 mL mark with distilled water. Cap the cup and shake to mix.
3. Place the CHEMets ampoule tip-first into the sample cup. Snap the tip and the ampoule will automatically fill. 4. To mix the ampoule, tilt it from side to side, allowing the bubble to travel from end to end. Dry the ampoule. Test results should be obtained within 1 minute after snapping the ampoule tip.
5. Place the ampoule into the center of the round comparator and hold it toward a source of light, viewing from the bottom. Rotate the comparator until the color below the ampoule shows the closest match. 6. For higher concentrations, use flat comparator. Place the ampoule between the color standards, moving it along the comparator until you can determine the closest match.

For more detailed instructions, see the link at the bottom of the page.

P6508

WARNING! This product can expose you to chemicals including methanol, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.



More CHEMetrics Kits for Iron

Vacu-Vials
Product Number Method   Range Price
K6023 PDTS (total)   0-0.25 ppm $30.00
K6003 Phenanthroline (total & soluble)   0-6.00 ppm $30.00
K6203 Phenanthroline (total & ferrous)   0-6.00 ppm $33.00
Chemets Kits
Product Number Method MDS Range Price
K6210 Phenathroline (total & ferrous) 0.05ppm 0-1 & 1-10ppm $67.00
K6010 Phenanthroline (total & ferrous) 0.05 ppm 0-1 & 1-10ppm $67.00
K6002 Ferric Thiocyanate (iron in brine) 5 mg/L  0-100 & 100-1000 mg/L  $73.00
Vacuettes
Product Number Method MDS Range Price
K6210D Phenantholine (total & ferrous) 5 ppm 0-30 & 30-300 ppm $72.00
K6010D Phenanthroline (total & soluable) 5 ppm 0-30 & 30-300 ppm $72.00
K6010A Phenanthroline (total & soluable) 10 ppm 0-60 & 60-600 ppm $72.00
K6010B Phenanthroline (total & soluable) 20 ppm 0-120 & 120-1200 ppm $72.00
K6010C Phenanthroline (total & soluable) 200 ppm 0-1200 & 1200-12,000 ppm $72.00



Downloads:

K-6002 Instructions

Safety Data Sheet

Iron Information

More Information
Manufacturer CHEMetrics
Call For Price No
Gas Iron
4-20 mA Output No
Voltage Output None
Power Requirements 4 AAA Batteries
Datalogging No
Warranty 1 Year
