UV-106M OEM Ozone Analyzer

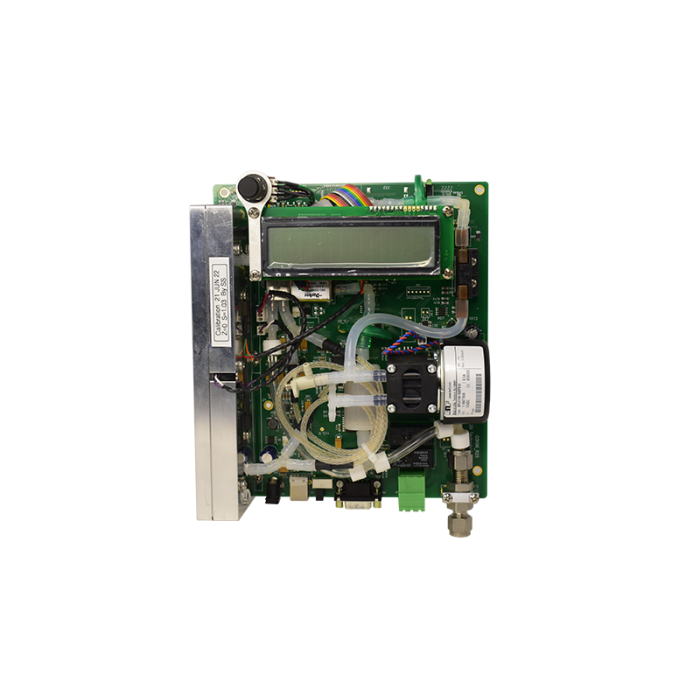

The UV-106-M is a low range ozone analyzer featuring ozone measurements up to 1,000 ppm with low range measurement of ozone down to 0.01 ppm.The OEM configuration is designed as an "Ozone Analyzer on a board" in which nearly all of the components are mounted directly to the printed circuit board.

Bench mount ozone analyzer is compact and easy to use.  The UV-106-M can be purchased in either the bench mount or NEMA enclosure.

Integrated sample pump will pull a sample of ozone from your process or location into the analyzer and measure ozone in that gas stream.  A UV lamp and receptor are used to determine the quantity of ozone in gas by determining the rate of ozone absorption by the UV lamp.  This method of ozone detection will offer accurate detection of ozone at levels up to 1,000 without compromising low range detection below 1 ppm, while eliminating most cross-sensitivity from other gasses.

If you're looking to temporarily monitor ozone, we have a UV-106-M Ozone Analyzer Rental available here.

Features:

- Measurement based on UV absorption

- OEM Configuration

- Low power consumption; can be battery operated

- Internal data logger with real time clock

- On-board microprocessor with interactive menus includes data averaging options of 10 s, 1 m, 5 m and 1 hr

- USB and RS-232 output of time/date, O3 concentration, internal temperature and pressure

- Analog output (0-2.5 V and 4-20 mA) of ozone concentration in user selected units

- Two level relay for control purposes (e.g., control of ozone source or turn warning light on and off)

- Long-life pump (15,000 hr)



Standard Enclosure:

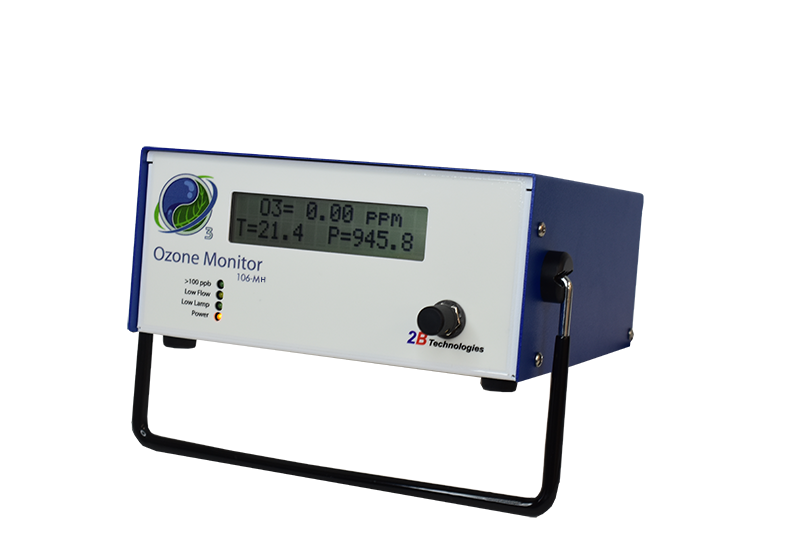

The UV-106 comes standard in a bench mount configuration making it simple to set up for many applications.



Industrial Enclosure:



For applications where a wall mount analyzer, or rugged enclosure for harsh environments are a better fit, the NEMA enclosure can be used for the UV-106-M Ozone Analyzer.







Filters:

We highly recommend replacing the filter frequently to prevent contamination of the flow path by particulate matter.



Ozone Scrubber:

The UV-106's Series have an internal scrubber that should be replaced frequently to prevent contamination of the flow path by particulate matter.



Downloads

UV-106-M Manual
