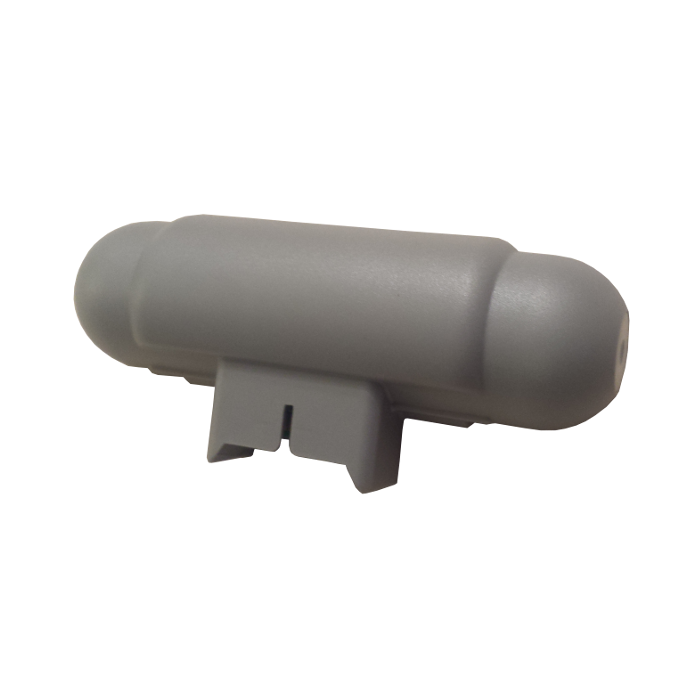

Aeroqual Hydrogen (H2) Sensor Head 0-5000 ppm (HA)
Hydrogen (H2) sensor head. Gas Sensitive Semiconductor (GSS) head will measure Hydrogen gas from 0-5000 ppm with a 1 ppm resolution providing +/- 10% accuracy.
- SKU
- AQ HA
Description / Aeroqual Hydrogen (H2) Sensor Head 0-5000 ppm (HA)
Hydrogen (H2) sensor head whose Gas Sensitive Semiconductor (GSS) technology will measure Hydrogen gas from 0-5000 ppm with a 1 ppm resolution providing a <± 10% accuracy.
This sensor uses an active sensor technology with an internal fan to pull air across the GSS sensor at a specific flow rate for accurate gas detection. The fan will pull a fresh gas stream across the GSS sensor every 30 seconds for accurate Hydrogen gas detection.
Full list of technical information and specifications for all Aeroqual sensors
This sensor head will be a direct fit onto any Series-200, Series-300, Series-500 or Ranger Aeroqual ozone monitor. This head can be purchased as an addition to your existing monitor, or with a new base unit. To purchase with a base unit see our Aeroqual ozone monitor page. If you currently have an Aeroqual monitor this sensor will be a direct fit for your current monitor.
Compare the Series 300 and 500, Aeroqual Ranger monitors:
| Compare the Aeroqual handheld devices |
|
|
|
| Interchangeable sensor head | Yes | Yes | Yes |
| Digital LCD Display | Yes | Yes | Yes |
| Min, Max, Average readings on screen | Yes | Yes | Yes |
| Field Replaceable Battery | Yes | Yes | Yes |
| Remote Sensor Capability | Yes | Yes | Yes |
| Temp and HR Sensor optional | Yes | Yes | Yes |
| External Control Outputs | Yes | Yes | Yes |
| Audible Alarm | Yes | Yes | Yes |
| High and Low Alarms | Yes | Yes | Yes |
| 0-5 VDC Analog output | Yes | Yes | Yes |
| Zero Calibration capability | Yes | Yes | Yes |
| Span Calibration capability | Yes | Yes | Yes |
| Internal Data Logging Capability | No | Yes | Yes |
|
PC connection cables and capability |
No | Yes |
Yes |
|
Built in wi-fi connection |
No | No |
Yes |
|
Hot-Swap Service |
Yes | Yes |
Yes |
Detailed Sensor Specifications for Aeroqual ambient sensors
Click on image to expand
Sensor Type:
There are two types of Aeroqual sensors, type 1 and type 2.
The type 1 is used with the S-200, S-300, S-500, Ranger and S-900 monitors.
The type 2 is calibrated specifically with fittings on the end allowing it to be used with the ENC enclosure and in the S930
All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.Â
**Calibration Service Request Form **
|
Calibration costs do vary, see below to get an estimate:Â Calibration Fee: $150 Analyzer Calibration Fee: $300 PM Calibration Sensor Fee: $330 Genie Calibration Fee: $265 ATI Calibration Fee: $205 ** note that prices are subject to change per labor and parts required. |
More Information
| Manufacturer | Aeroqual |
|---|---|
| Quickbooks Stock Level | -1.000000 |
| Quickbooks Stock Date Expected | 2025-01-23 00:00:00 |
| Gas | Hydrogen (H2) |
| Sensor Type | GSS (Gas Sensitive Semiconductor) |
| Range | 0-5000 ppm |
| Maximum Exposure | 20000 ppm |
| Monitor sensor fits | S-200 / S-300 / S-500, Series-900 |
| Minimum Detection Limit | 5 |
| Accuracy | < +/- 10% |
| Resolution | 1 ppm |
| Response Time | <90 s |
| Sampling Method | Fan |
| Operational Temperature Range | 0 to 40 C |
| Operational RH Range | 10 to 90% |
| Warranty | 6 Month |
