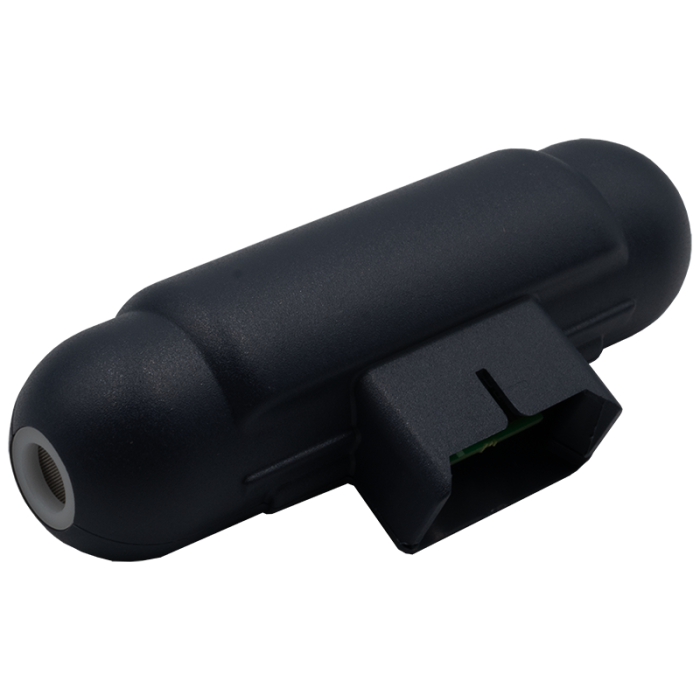

This Sulfer Dioxide (SO2) Sensor Head uses Gas Sensitive Electrochemical (GSE) technology to detect Sulfer Dioxide from 0-10 ppm at 0.01 ppm resolution with <±0.05 ppm accuracy (in concentrations from 0 - 0.5 ppm) or  <± 10% accuracy (in concentrations from 0.5 -10 ppm).

This sensor uses an active sensor technology with an internal fan to pull air across the GSE sensor at a specific flow rate for accurate gas detection.  This fan pulls a stream of air past the sensor every 60 seconds providing a new reading of SO2 levels.  This provides a 60 second response time for the sensor.

Full list of technical information and specifications for all Aeroqual sensors

Sulfer Dioxide Information

Full list of Aeroqual Products

This sensor head will be a direct fit onto any Series-200, Series-300, Series-500 or Ranger Aeroqual monitor.  This head can be purchased as an addition to your existing monitor, or with a new base unit.  To purchase with a base unit see our Aeroqual monitor page.  If you currently have an Aeroqual monitor this sensor will be a direct fit for your current monitor.

Compare the Series 300 and 500, Aeroqual Ranger monitors:

Detailed Sensor Specifications for Aeroqual ambient sensors

Click on image to expand

Sensor Type:

There are two types of Aeroqual sensors, type 1 and type 2.
The type 1 is used with the S-200, S-300, S-500, Ranger and S-900 monitors.
The type 2 is calibrated specifically with fittings on the end allowing it to be used with the ENC enclosure and in the S930

Calibration:

The Aeroqual AQ ESO sensor has a detection range of 0-10 ppm, so the calibration gas you use must fall within this range. Refer to the table below for our recommended calibration gas options.

Calibration Gas

Link copied: https://www.gas-sensing.com/aeroqual-products/aeroqual-sulfer-dioxide-sensor-0-10-ppm-eso.html#calibration-gas

Product	Range	Price
Sulfur Dioxide Calibration Gas	Multiple Ranges	$220.00
Sulfur Dioxide Calibration Kit	5 ppm, 10 ppm, 15 ppm, 20 ppm, 25 ppm	$472.00

Sulfur Dioxide Calibration Gas

$220.00

Range

Multiple Ranges

View Details

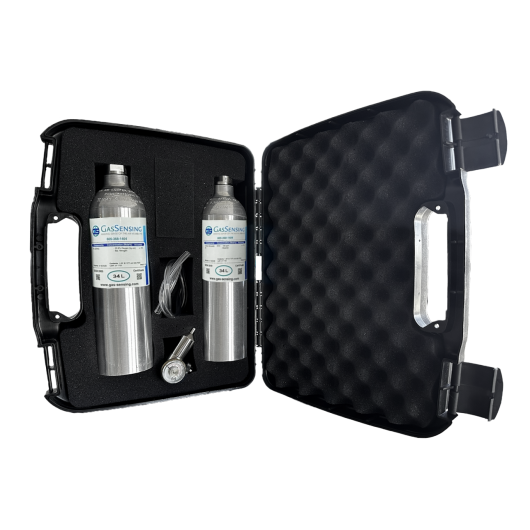

Sulfur Dioxide Calibration Kit

$472.00

Range

5 ppm, 10 ppm, 15 ppm, 20 ppm, 25 ppm

View Details

All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.

**Calibration Service Request Form **
