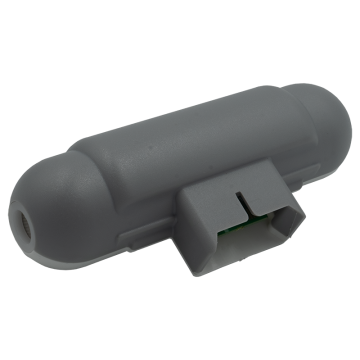

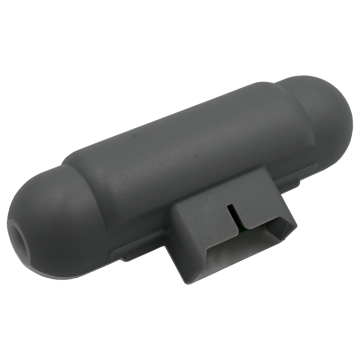

Aeroqual VOC PID Sensor Head 0-30 ppm (PDL - VOC)
This Volatile Organic Compound (VOC) sensor head uses Photo Ionization Detector (PID) technology and will measure VOC's from 0-30 ppm at 0.01 ppm resolution while providing +/- 10% accuracy.
- SKU
- AQ VOC
Description / Aeroqual VOC PID Sensor Head 0-30 ppm (PDL - VOC)
This Volatile Organic Compound (VOC) sensor head uses Photo Ionization Detector (PID) technology and will measure VOC's from 0-30 ppm at 0.01 ppm resolution while providing +/- 10% accuracy.
This sensor head will be a direct fit onto any Ranger, Series-300, or Series-500 Aeroqual ozone monitor. This head can be purchased as an addition to your existing monitor, or with a new base unit. To purchase with a base unit see our Aeroqual ozone monitor page. If you currently have an Aeroqual ozone monitor this sensor will be a direct fit for your current monitor. The Ranger, Series-300, or Series-500 will automatically detect this as a 0-30 ppm VOC head and react accordingly.
Calibrated against isobutylene (other specific VOC calibrations are available on request).
Sensor information:
Aeroqual PID Sensor Response time and specific VOC response
Aeroqual PID sensor vs GSS sensor response
Other VOC Sensors Available from Aeroqual:
VOC 0-25 ppm - GSS sensor head
VOC 0-500 ppm - GSS sensor head
VOC 0-2,000 ppm - PID sensor head
Compare the Series 300, 500, and Ranger monitors:
| Compare the Aeroqual handheld devices |
|
|
|
| Interchangeable sensor head | Yes | Yes | Yes |
| Digital LCD Display | Yes | Yes | Yes |
| Min, Max, Average readings on screen | Yes | Yes | Yes |
| Field Replaceable Battery | Yes | Yes | Yes |
| Remote Sensor Capability | Yes | Yes | Yes |
| Temp and HR Sensor optional | Yes | Yes | Yes |
| External Control Outputs | Yes | Yes | Yes |
| Audible Alarm | Yes | Yes | Yes |
| High and Low Alarms | Yes | Yes | Yes |
| 0-5 VDC Analog output | Yes | Yes | Yes |
| Zero Calibration capability | Yes | Yes | Yes |
| Span Calibration capability | Yes | Yes | Yes |
| Internal Data Logging Capability | No | Yes | Yes |
|
PC connection cables and capability |
No | Yes | |
|
Built in wi-fi connection |
No | No | |
|
Hot-Swap Service |
No | No |
Yes |
View a brochure with specifications on the Series-300, and 500 and Ranger.
Detailed Sensor Specifications for Aeroqual ambient sensors:
Click on image to expand
Sensor Type:
There are two types of Aeroqual sensors, type 1 and type 2.
The type 1 is used with the S-200, S-300, S-500, and S-900 monitors.
The type 2 is calibrated specifically with fittings on the end allowing it to be used with the ENC enclosure and in the S930
Full list of technical information and specifications for all Aeroqual sensors
All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.Â
**Calibration Service Request Form **
|
Calibration costs do vary, see below to get an estimate:Â Calibration Fee: $150 Analyzer Calibration Fee: $300 PM Calibration Sensor Fee: $330 Genie Calibration Fee: $265 ATI Calibration Fee: $205 ** note that prices are subject to change per labor and parts required. |
More Information
| Manufacturer | Aeroqual |
|---|---|
| Quickbooks Stock Level | 2.000000 |
| Quickbooks Stock Date Expected | 2025-01-03 00:00:00 |
| Gas | VOC |
| Sensor Type | PID (Photo Ionization Detector) |
| Range | 0-20 ppm |
| Maximum Exposure | 100 ppm |
| Monitor sensor fits | S-200 / S-300 / S-500, Series-900 |
| Minimum Detection Limit | 0.01 ppm |
| Accuracy | < +/- 10% |
| Resolution | 0.01 ppm |
| Response Time | <60 s |
| Sampling Method | Fan |
| Operational Temperature Range | 0 to 40 C |
| Operational RH Range | 10 to 90% |
| Warranty | 6 Month |
