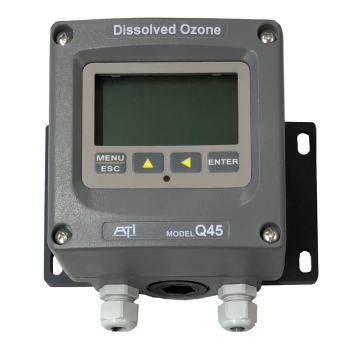

ATI Q45H/64 with Flowcell
ATI Q45H/64 with Flowcell
Dissolved Ozone Monitor, Measure ozone with ppb resolution or, up to 200 ppm.
4-user selectable ranges. 4-20 mA output and digital display to show dissolved ozone levels in water.
Includes flow-cell and sensor assembly.
- SKU
- ATI Q45H/64-1-1-1
Related Products
Description / ATI Q45H/64 with Flowcell

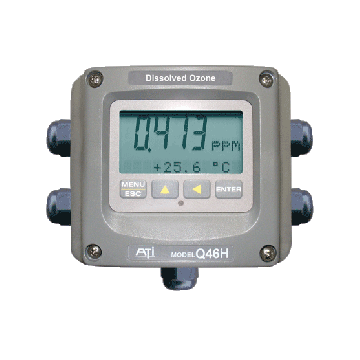

The Q45H/64 Dissolved Ozone Meter is the ideal choice when accurate dissolved ozone levels are required to be displayed locally via an LCD display, or remotely via a 4-20 mA output. The Q45 system offers all the same sensor and range features as the Q46 system but without the integrated PID loop, relay control, or multiple 4-20 mA outputs.
Q45H/64 Kit with Constant Head Flowcell
Configuration of this Q45H/64 kit
- 12-24 VDC, 2-Wire (Single output only)
- Sensor with constant head flowcell and 25' cable
User Selectable Ranges:
Ozone ranges are user selectable; the following 4 user selectable ranges are available on the Q45h/64
- 0-200 ppb (1 ppb resolution)
- 0-2.000 ppm (0.001 ppm resolution)
- 0-20.00 ppm (0.01 ppm resolution)
- 0-200.0 ppm (0.1 ppm resolution)
All ranges are user settable with display panel on the Q45.
| Sensor Type | Membrane-covered Polargraphic (flow type or submersible) |
| Range | 0-200.0 PPB, 0-2.000 PPM, 0-20.00 PPM, 0-200.0 PPM (mg/l) |
| Response Time | 90% in 60 seconds |
| Accuracy | +0.5% of selected range or 0.02 ppm |
| Repeatability | 0.3% of selected range or 0.01 ppm |
| Sensitivity | 0.05% of selected range |
| Analog Output |
2-Wire unit: Single 4-20 mA DC, 450 ohms maximum External DC: Two 0-2.5 VDC, 50K ohms minimum |
| Power Requirements |
2-Wire unit: 17-30 VDC, 25 mA maximum External DC: 5-17 VDC, 10 mA maximum |
| Output Isolation | 600 V Galvanic isolation |
| Enclosure | NEMA 4X (IP-66) Polycarbonate, V-0 flammability |
| Display | 4 digit, 0.75” numeric LCD with 12 digit second line, LED back light |
| Weight | 1 lbs. (0.45 Kg) |
| Wetted Materials | PVC and Titanium |
| Sensor Cable | 25 ft. (7.5 m) standard, 100 ft. (30 m) max. with junction box |
| Sample Temperature | 0-50° C |
| Sample Pressure | 0-50 PSIG (Pressure controlled to fixed value) |
| Temperature Sensor | Internal Pt100 RTD |
| Flowcell Materials | Acrylic with barb fittings |
| Sample Flowrate | 7-15 GPH (0.5-1.0 LPM) |
| Sample Connections | 1/4” I.D. hose barb inlet, 1/2” I.D. hose barb drain for standard flowcell |
| Certifications | CE marked to BS EN 61326-1:2006 Standard UL and CSA General Purpose |
| Size | 4.4”H x 4.4”W x 3.5”D (111 x 111 x 90 mm) |
| Mounting Options | Wall or pipe mounting bracket supplied |
| Conduit Entry | Two PG-9 cord grips, 0.16-0.31” diameter cable |
| Ambient Temperature | Operating: -40° to + 60°C Storage: -40° to + 70°C |
| Ambient Humidity | 0-95%, Non-condensing |
Notes:
All systems are supplied with one package of membranes, one 120 cc bottle of electrolyte, and one spare parts kit containing 3 each of all o-rings and special screws.
Flowcell for Dissolved O3 / pH Combo system should be kept within 25’ for monitor.
Q45H/64 Features:
- Wide Detection Ranges - User Settable ranges from 0-200 PPB up to 0-200 PPM provide maximum application flexibility.
- Loop Power or External DC Power Options - 2-wire loop powered unit standard (17 - 30 VDC), or external DC power (5-17 VDC)
- Analog Output - Isolated 4-20 mA output is standard
- Clear Display - Back-lit large LCD display provides clear visibility in any lighting conditions. A scrolling second line on the display provides additional information and programming prompts.
- Flexible Mounting - NEMA 4X (IP-66) enclosure is suitable for wall, pipe, or panel mounting.
Sensor & Flowcell:
| Constant Head Flowcell
This Q45H/65 is confgured with the Constant Head Flowcell for consistant performance. The Q45H/64 provides the best performance when used with the constant-head flowcell. Water pressure on the sensor and water flow are automatically controlled via the gravity flow chambers in the flowcell. Water flows of 400 - 500 cc/min will be used. |
 |
Calibration:
The Q45H Ozone Sensors must be calibrated on-site with the customers' water in process. As pressure and water flow will affect the calibration it is important to perform the calibration in the specific process the sensor will be used to measure ozone in.
Calibration frequency will depend upon ozone concentration in the water and water quality. Higher dissolved ozone levels will consume the electrolyte solution and membrane quality quicker than low levels of ozone. At ozone levels below 2.0 ppm we find the Q45H can maintain stable readings for 6-months at a time between calibrations. However, at ozone levels greater than 20 ppm calibration should be performed at least monthly and ozone levels greater than 100 ppm will require weekly or even daily calibration.
A bottle of electrolyte solution and a pack of 10 membranes are shipped with each Q45H Dissolved Ozone Meter.
Calibration should be performed with a colorimetric dissolved ozone test kit. Below are a few kits we suggest and the potential applications for each.
I-2022 SAM Dissolved Ozone Meter
Best for low level detection of ozone, below 0.75 ppm
I-2019 SAM Dissolved Ozone Meter
Best for high level detection of ozone, direct read to 5.0 ppm
K-7404 Dissolved Ozone Kit
Low cost option to measure ozone from 0 - 3.0 ppm
Replacement Membrane Assembly ATI 00-0042 Screw, O-rings spare parts kit ATI 05-0004 Membranes ATI 05-0002 D. O3 Electrolyte ATI 09-0008 Listing Description Replacement Membrane Assembly ATI 00-0042 Listing Description Screw, O-rings spare parts kit ATI 05-0004 Listing Description Membranes ATI 05-0002 Listing Description D. O3 Electrolyte ATI 09-0008
Product
Listing Description
Price

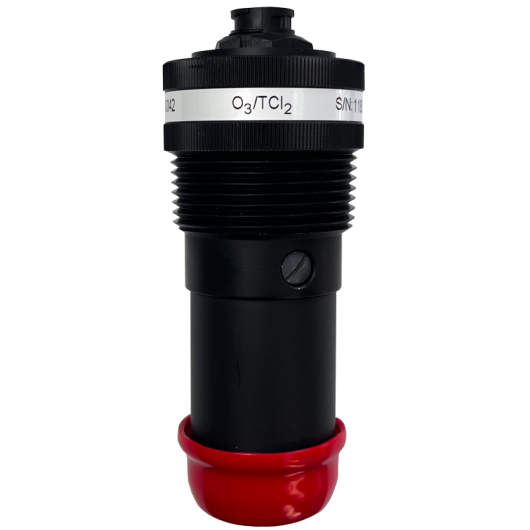

ATI Dissolved Ozone Sensor (00-0042)

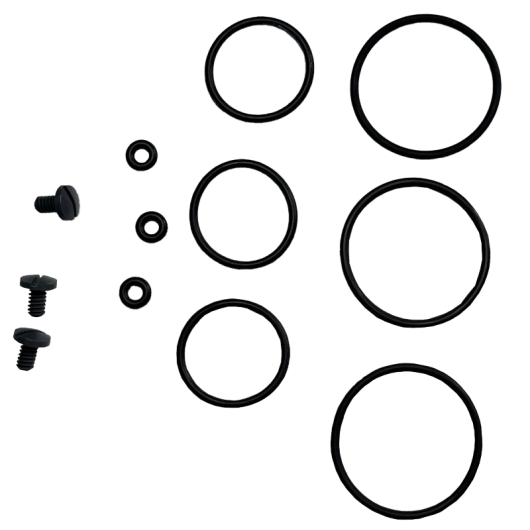

ATI Q46R Spare Parts Kit (05-0004)

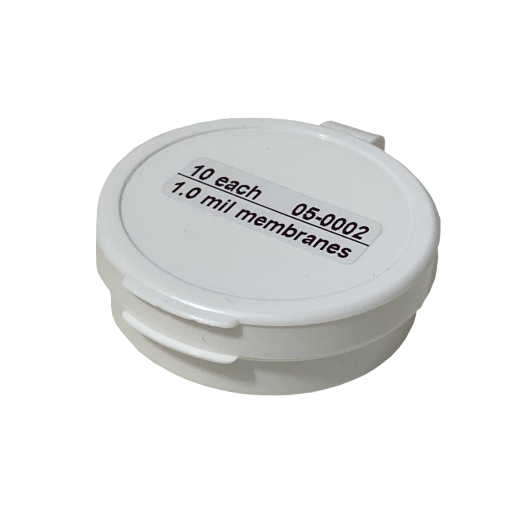

Membranes for Q46H/64 & Q45H/64

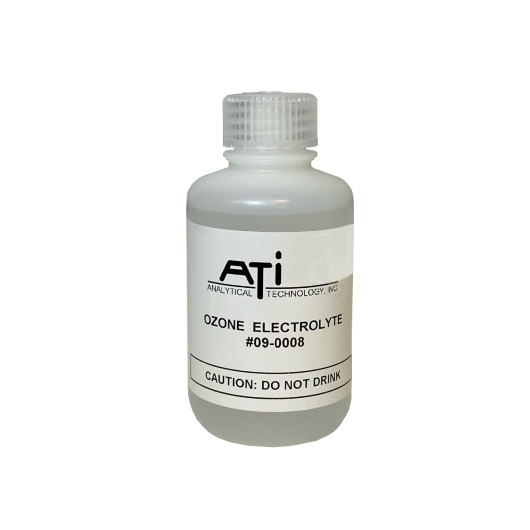

Ozone Electrolyte Solution
Interference-Free Dissolved Ozone Measurement
Q45H/64 monitors use a polarographic membrane sensor to accurately measure Ozone in water. The sensor operates much like a battery, generating current that is linearly proportional to the concentration of chlorine dioxide in solution. An Ozone permeable membrane isolates the sensor from the measured sample and insures that the measurement is interference free.
Two versions of the sensor are available, a sensor intended for installation in a flowcell and a sensor intended for submersion applications. Requiring minimal maintenance, sensors are easy to use and easy to maintain. An integral RTD provides temperature compensation and allows temperature to be displayed and transmitted from the monitor.
Sensor Stabilization
Ozone sensors require 2 to 4 hours of stabilization time when first installed or after membrane change. ATI offers a battery powered polarizer that can be used to stabilize a spare sensor so it is ready to run within a few minutes of installation. Polarizers simply plug into the sensor connector and require no adjustments.
Sensor Polarizer can be added to the Q45H in the options section above. Separate polarizers are available for the submersion and flowcell style sensors.
Installation Images:
Below are images and examples of Q45H/65 Installation.
Monitor and Flowcell Mounting
 |
 |
Constant Head Flowcell
The Constant Head Flowcell is the best option for accurate and repeatable dissolved ozone measurements. Water will flow through the flowcell at a rate of 400-500 cc/min (0.4 - 0.5 LPM). Water flow must be regulated with an upstream needle valve or flow restrictor. Water will flow through the flowcell under gravity and flow to drain. Ensure the drain line is 3/8" ID or larger and flows downhill to a drain, or, back into the process water tank under gravity,.
 |
 |
 |
Panel Mounting
The Q45H/64 monitor can be panel-mounted onto your control box for a clean and professional look. An optional Panel Mount kit is available that can be added when purchasing.
 |
 |
How to Videos:
Downloads:
More Information
| Manufacturer | ATI |
|---|---|
| Listing Description |
|
| 4-20 mA Output | No |
| Voltage Output | None |
| Datalogging | No |
| Warranty | 1 Year |
| Range | 0 - 200 ppb, 0 - 2.00 ppm, 0 - 20.00 ppm, 0 - 200.0 ppm |
