K-6020B Iron
K-6020B Iron Kit is used to determine soluble and total iron levels from 250-2500 ppm.

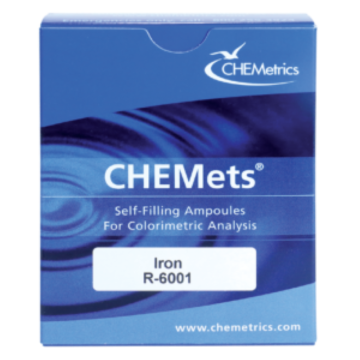

Replacement ampoules for the K-6020B Test Kit can be found here.
- SKU
- K-6020B Iron
Related Products
Description / K-6020B Iron
Why Choose HR CHEMets kits?
HR CHEMets® is the new way to test at high ranges and replaces the now discontinued VACUettes product line.
Included:
|
- 30 self-filling Ampoules - Comparator - Diluter snapper cup - Micro test tube - Iron activator -Instruction Manual |
Method:
The Iron CHEMets®1 test method employs the phenanthroline chemistry.2,3,4 Ferrous iron reacts with 1,10-phenanthroline to form an orange colored complex in direct proportion to the soluble iron concentration. Total iron (ferrous plus ferric) is determined by adding a mixture of thioglycolic acid and ammonia to the sample. This mixture dissolves most forms of particulate iron. Certain forms of very insoluble iron (magnetite, ferrite, etc.) require a digestion procedure in place of the Total Iron Procedure.
| 1. Using the syringe provided, obtain 2.5 mL of the sample to be tested, and then dispense it into the empty sample cup. | 2. Dilute the contents of the sample cup to the 25 mL mark with distilled water (fig 1). |
 |
 |
| 3. Place the CHEMet ampoule, tip first, into the sample cup. Snap the tip. The ampoule will fill leaving a bubble for mixing (fig 2). | 4. To mix the ampoule, invert it several times, allowing the bubble to travel from end to end. Dry the ampoule. Obtain a test result 4 minutes after snapping the tip. Obtain a test result by placing the ampoule between the color standards until the best color match is found (fig. 3). |
 |
 |
For more detailed instructions, see the link at the bottom of the page.
More CHEMetrics Kits for Iron:
| Vacu-Vials | ||||
|---|---|---|---|---|
| Product Number | Method | Range | Price | |
| K6023 | PDTS (total) | 0-0.25 ppm | $30.00 | |
| K6003 | Phenanthroline (total & soluble) | 0-6.00 ppm | $30.00 | |
| K6203 | Phenanthroline (total & ferrous) | 0-6.00 ppm | $33.00 | |
| Chemets Kits | ||||
| Product Number | Method | MDS | Range | Price |
| K6210 | Phenathroline (total & ferrous) | 0.05ppm | 0-1 & 1-10ppm | $67.00 |
| K6010 | Phenanthroline (total & ferrous) | 0.05 ppm | 0-1 & 1-10ppm | $67.00 |
| K6002 | Ferric Thiocyanate (iron in brine) | 5 mg/L | 0-100 & 100-1000 mg/L | $73.00 |
| Vacuettes | ||||
| Product Number | Method | MDS | Range | Price |
| K6210D | Phenantholine (total & ferrous) | 5 ppm | 0-30 & 30-300 ppm | $72.00 |
| K6020D | Phenanthroline (total & soluable) | 5 ppm | 0-30 & 30-300 ppm | $72.00 |
| K6020A | Phenanthroline (total & soluable) | 10 ppm | 0-60 & 60-600 ppm | $72.00 |
| K6020B | Phenanthroline (total & soluable) | 20 ppm | 0-120 & 120-1200 ppm | $72.00 |
| K6020C | Phenanthroline (total & soluable) | 200 ppm | 0-1200 & 1200-12,000 ppm | $72.00 |
Downloads:
More Information
| Manufacturer | CHEMetrics |
|---|---|
| Gas | Iron |
| 4-20 mA Output | No |
| Voltage Output | None |
| Datalogging | No |
| Warranty | 1 Year |
| Range | 250-2500 ppm |
