SM-6 Sensor 0-20 ppm SM-X
Description / SM-6 Sensor 0-20 ppm SM-X

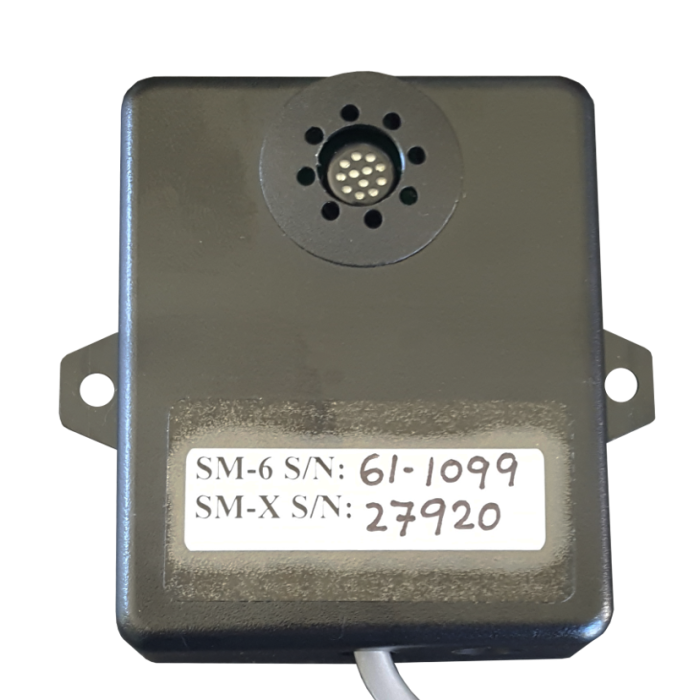

The SM-6 Sensor can be used as a stand-alone OEM solution with RS-232 communications, or used as the sensor module with the OS-4 or OS-6 Ozone Monitors.
The SM-6 uses the standard SM-X replaceable Sensor Chip. The SM-X is precalibrated and can be replaced in the SM-6 without any other changes necessary, and nothing to be shipped back for calibration.
If the intention is to use this as a stand-alone sensor it is best to call for details on the application. The SM-6 uses a very specific RS-232 communications protocol to provide ozone data. This will limit the number of uses for this as an OEM type sensor.
Downloads:
Links:
EcoSensors Calibration information
General Calibration Information
More Information
| Manufacturer | Eco Sensors |
|---|---|
| Gas | Ozone (O3) |
| Resolution | 0.01 ppm |
| Response Time | 1 second |
| Sensor type | Electrochemical |
| Sampling Method | Diffusion |
| Alarms | no |
| Operational Temperature Range | 35 - 100 deg F |
| Operational RH Range | 0 - 85% RH |
| Power Requirements | 12 VDC |
| Field Replaceable Battery | No |
| Warranty | 1 Year |
| Range | 0-20 ppm |
