OEM-1 Ozone Controller
OEM-1 Ozone Controller is great for integrated solutions or use within your ozone generator. A simple and effective method to control ozone levels, or shut down equipment in the event of an ozone leak. The sensor range is 0-0.1ppm.
The OEM-1 is powered by either 120 VAC OR 12 VDC. The OEM-1 offers a 0-1 VDC output signal.
For reference the OEM-2 is a 12/24 VDC powered device that offers a 4-20 mA output signal.
- Buy 5 for $305.00 each and save 14%
- Buy 10 for $270.00 each and save 24%
1-4 = $275 each
5-9 = $225 each
10+ = $195 each
*Call for quantity discounts
The model OEM-1 is a system to control ozone generators and alarms based on an adjustable ozone concentration set point. It is designed to work with plug-in sensor modules for 0-0.1 ppm. These are specified when ordering by putting the ppm range after the model number. For example, a .1 ppm OEM-1 board system would be OEM-1-.1 and the replacement sensor module for it would be SM-1-.1. These same sensor modules also work in our OEM-2 boards which have advanced features such as 4-20 mA output. The sensors modules can also be located at a distance from the OEM-1 boards by 2 or 8 meter cables. These are readily available DIN M/F 5 pin extension cables.

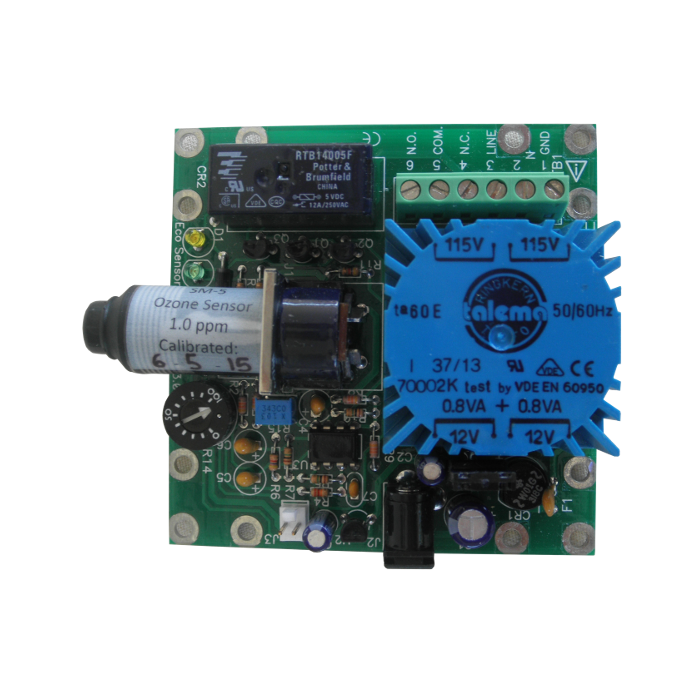

One component of the OEM-1 system is the base board which incorporates the power supply, final signal processing, set-point controls, and the output relay. The other component is the sensor mounted with its associated electronics in a cylindrical DIN plug. This is pre-calibrated in our lab so that the sensor module and main board module together work as a calibrated system. If the sensor module is damaged, it is simply replaced by another pre-calibrated module.
OEM-1 Ozone Sensor Replacement:
Sensor replacement on OEM-1 is simply plug-n-play. Remove the old SM-1 and replace with new.
|Quickbooks Stock Level
|Call For Price
|Heated Metal Oxide (HMOS)
|NO/NC relay for control purposes
|Operational Temperature Range
|35 - 100 deg F
|Operational RH Range
|0 - 85% RH
|3.25-in wide x 3.25" long x 0.875" tall
|Field Replaceable Battery
|Replace with Pre-Calibrated Sensor Annually
-Field Replaceable Sensor
-User Settable Relay
-0-1 VDC Output
-Optional Remote Sensor Cable
0-0.1 ppm (O3)
