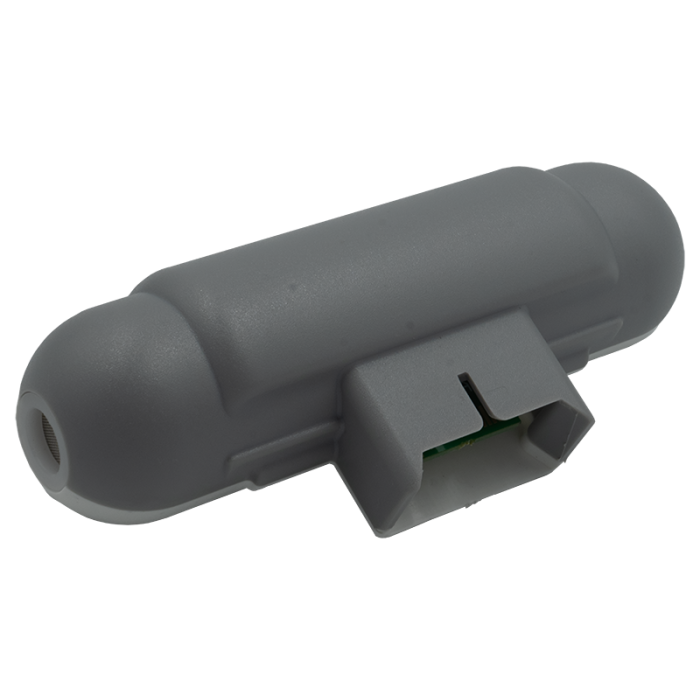

Aeroqual Hydrogen Sulfide (H2S) Sensor Head 0-100 ppm (EHT)
Aeroqual Hydrogen Sulfide (H2S) Sensor Head 0-100 ppm (EHT)
Hydrogen Sulfide (H2S) Head uses Gas Sensitive Electrochemical (GSE) technology to detect H2S gas from 0-100 ppm at 0.1 ppm resolution with <±0.1 ppm accuracy (in concentrations from 0 - 5 ppm) or <± 10% accuracy (in concentrations from 5 -100 ppm.)
- SKU
- AQ EHT
Related Products
Description / Aeroqual Hydrogen Sulfide (H2S) Sensor Head 0-100 ppm (EHT)
Hydrogen Sulfide (H2S) Head uses Gas Sensitive Electrochemical (GSE) technology to detect H2S gas from 0-100 ppm at 0.1 ppm resolution with <±0.1 ppm accuracy (in concentrations from 0 - 5 ppm) or <± 10% accuracy (in concentrations from 5 -100 ppm)
This head uses an active sensor technology with an internal fan to pull air across the GSE sensor at a specific flow rate for accurate gas detection. The fan pulls a stream of air past the sensor every 30 seconds providing a new reading of H2S levels and a 60-second response time.
Full list of technical information and specifications for all Aeroqual sensors
Full list of Aeroqual Products
This sensor head will be a direct fit onto any Series-200, Series-300, Series-500 or Ranger Aeroqual ozone monitor. This head can be purchased as an addition to your existing monitor, or with a new base unit. To purchase with a base unit see our Aeroqual ozone monitor page. If you currently have an Aeroqual monitor this sensor will be a direct fit for your current monitor.
Compare the Series 300 and 500, Aeroqual Ranger monitors:
| Compare the Aeroqual handheld devices |
|
|
|
| Interchangeable sensor head | Yes | Yes | Yes |
| Digital LCD Display | Yes | Yes | Yes |
| Min, Max, Average readings on screen | Yes | Yes | Yes |
| Field Replaceable Battery | Yes | Yes | Yes |
| Remote Sensor Capability | Yes | Yes | Yes |
| Temp and HR Sensor optional | Yes | Yes | Yes |
| External Control Outputs | Yes | Yes | Yes |
| Audible Alarm | Yes | Yes | Yes |
| High and Low Alarms | Yes | Yes | Yes |
| 0-5 VDC Analog output | Yes | Yes | Yes |
| Zero Calibration capability | Yes | Yes | Yes |
| Span Calibration capability | Yes | Yes | Yes |
| Internal Data Logging Capability | No | Yes | Yes |
|
PC connection cables and capability |
No | Yes |
Yes |
|
Built in wi-fi connection |
No | No |
Yes |
|
Hot-Swap Service |
Yes | Yes |
Yes |
Detailed Sensor Specifications for Aeroqual ambient sensors
Click on image to expand
Calibration:
The Hydrogen Sulfide (H2S) Head uses Gas Sensitive Electrochemical (GSE). The Aeroqual AQ EHT sensor has a detection range of 0-100 ppm, so the calibration gas you use must fall within this range. Refer to the table below for our recommended calibration gas options.
| Product | Range | Price |
|---|---|---|
 Hydrogen Sulfide (H2S) Calibration Kit
|
10 ppm, 25 ppm, 50 ppm |
$472.00
|

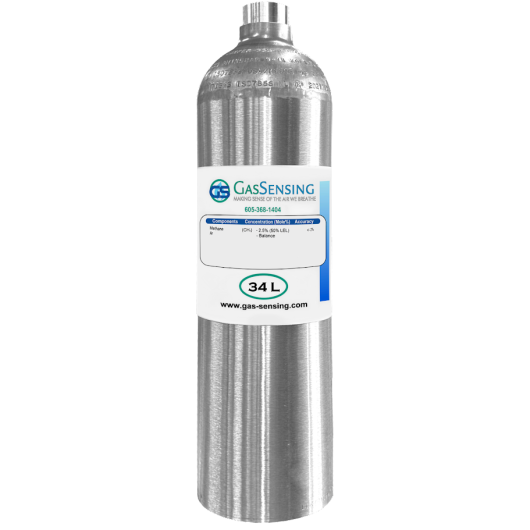

 Hydrogen Sulfide Calibration Gas
|
Multiple Ranges |
$200.00
|
Hydrogen Sulfide (H2S) Calibration Kit
Range
Hydrogen Sulfide Calibration Gas
Range
All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.Â
More Information
| Manufacturer | Aeroqual |
|---|---|
| Gas | Hydrogen Sulfide (H2S) |
| Sensor Type | GSE (Gas Sensitive Electrochemical) |
| Range | 0-100 ppm |
| Maximum Exposure | 200 ppm |
| Monitor sensor fits | S-200 / S-300 / S-500, Series-900 |
| Minimum Detection Limit | 0.4 ppm |
| Accuracy | < ± 0.5 ppm 0-5 ppm < ± 10% 5-100 ppm |
| Resolution | 0.1 ppm |
| Response Time | 30 Seconds |
| Sampling Method | Fan |
| Operational Temperature Range | 0 to 40°C |
| Operational RH Range | 10 to 90% |
| Warranty | 6 Month |
