Aeroqual Methane (CH4) Sensor Head 0-10000 ppm (MT)
Methane Sensor Head uses Gas Sensitive Semiconductor (GSS) technology to detect Methane gas from 0-10,000 ppm with 15% accuracy with 1 ppm resolution.
- SKU
- AQ MT
Description / Aeroqual Methane (CH4) Sensor Head 0-10000 ppm (MT)
Methane Sensor Head uses Gas Sensitive Semiconductor (GSS) technology to detect Methane from 0-10,000 ppm with +/-15% accuracy and 1 ppm resolution.
This sensor uses an active sensor technology with an internal fan to pull air across the GSS sensor at a specific flow rate for accurate gas detection. This fan will pull a fresh gas stream across the GSS sensor every 60 seconds for accurate Methane detection.
Full list of technical information and specifications for all Aeroqual sensors
Full list of Aeroqual Products
This sensor head will be a direct fit onto any Series-200, Series-300, Series-500 or Ranger Aeroqual ozone monitor. This head can be purchased as an addition to your existing monitor, or with a new base unit. To purchase with a base unit see our Aeroqual ozone monitor page. If you currently have an Aeroqual ozone monitor this sensor will be a direct fit for your current monitor.
Compare the Series 300 and 500, Aeroqual Ranger monitors:
| Compare the Aeroqual handheld devices |
|
|
|
| Interchangeable sensor head | Yes | Yes | Yes |
| Digital LCD Display | Yes | Yes | Yes |
| Min, Max, Average readings on screen | Yes | Yes | Yes |
| Field Replaceable Battery | Yes | Yes | Yes |
| Remote Sensor Capability | Yes | Yes | Yes |
| Temp and HR Sensor optional | Yes | Yes | Yes |
| External Control Outputs | Yes | Yes | Yes |
| Audible Alarm | Yes | Yes | Yes |
| High and Low Alarms | Yes | Yes | Yes |
| 0-5 VDC Analog output | Yes | Yes | Yes |
| Zero Calibration capability | Yes | Yes | Yes |
| Span Calibration capability | Yes | Yes | Yes |
| Internal Data Logging Capability | No | Yes | Yes |
|
PC connection cables and capability |
No | Yes |
Yes |
|
Built in wi-fi connection |
No | No |
Yes |
|
Hot-Swap Service |
Yes | Yes |
Yes |

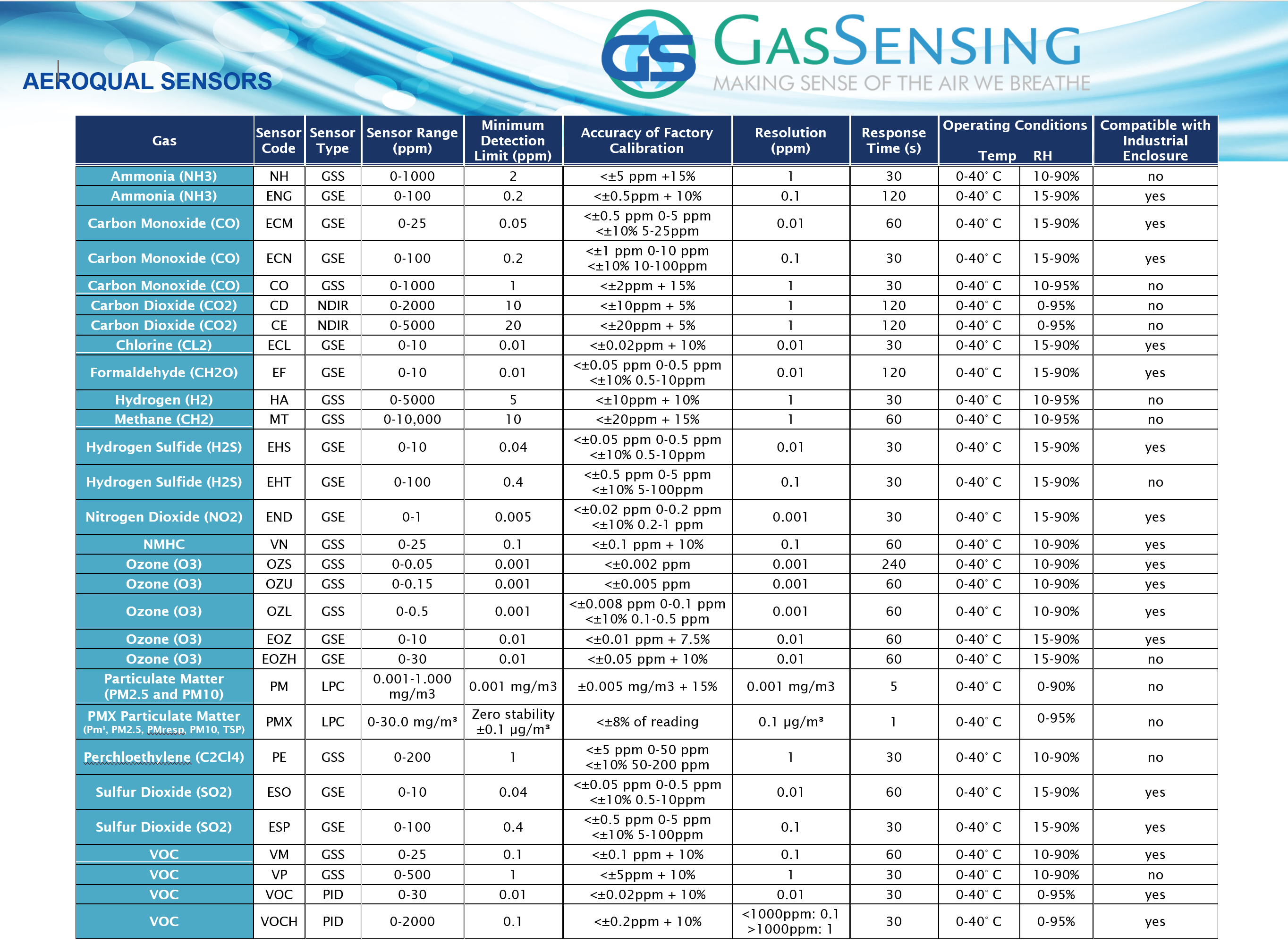

Detailed Sensor Specifications for Aeroqual ambient sensors
Click on image to expand
Calibration:
The Methane Sensor Head uses Gas Sensitive Semiconductor (GSS) technology. The Aeroqual AQ MT sensor has a detection range of 0-10,000 ppm, so the calibration gas you use must fall within this range. Refer to the table below for our recommended calibration gas options.
Range
Product
Range
Price
Multiple Ranges
Methane Calibration Gas
All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.Â
More Information
| Manufacturer | Aeroqual |
|---|---|
| Gas | Methane (CH4) |
| Sensor Type | GSS (Gas Sensitive Semiconductor) |
| Range | 0-10000 ppm |
| Maximum Exposure | 10000 ppm |
| Monitor sensor fits | S-200 / S-300 / S-500, Series-900 |
| Minimum Detection Limit | 10 ppm |
| Accuracy | < +/- 15% |
| Resolution | 1 ppm |
| Response Time | <60 s |
| Sampling Method | Fan |
| Operational Temperature Range | 0 to 40 C |
| Operational RH Range | 10 to 90% |
| Warranty | 6 Month |
