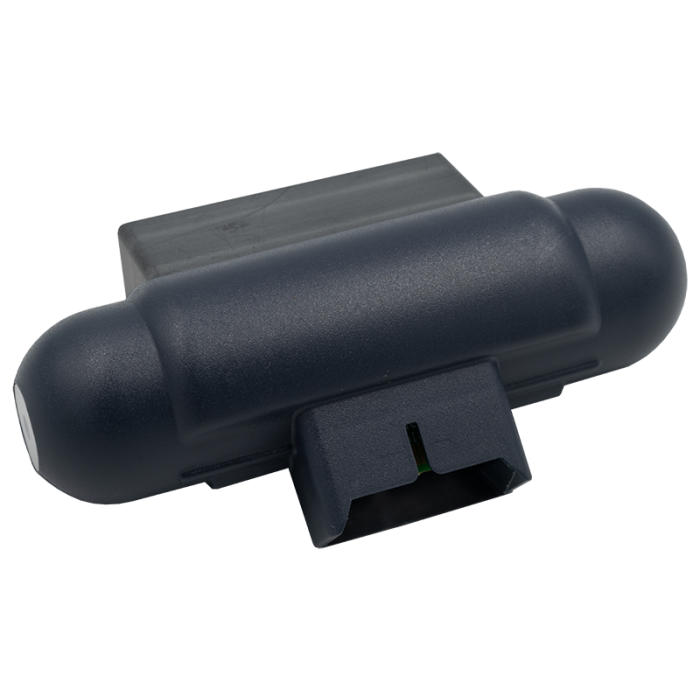

Aeroqual Carbon Dioxide (CO2) Sensor Head 0-2000 ppm (CD)
Aeroqual Carbon Dioxide (CO2) Sensor Head 0-2000 ppm (CD)
Carbon Dioxide (CO2) sensor head. Non-dispersive Infra-red (NDIR) head will measure CO2 from 0-2000 ppm with a 1 ppm resolution providing an accuracy of <± 5% of reading.
- SKU
- AQ CD
Related Products
Description / Aeroqual Carbon Dioxide (CO2) Sensor Head 0-2000 ppm (CD)
Carbon Dioxide (CO2) sensor head whose Non-dispersive Infra-red (NDIR) sensor will measure CO2 from 0-2000 ppm with a 1 ppm resolution providing an accuracy of < ± 10 ppm + 5% of reading.
This head uses an active sensor technology with an internal fan to pull air across the NDIR sensor at a specific flow rate for accurate gas detection. This fan will pull a fresh gas stream across the NDIR sensor every 120 seconds for accurate CO2 detection.
Full list of technical information and specifications for all Aeroqual sensors
Full list of Aeroqual Products
This sensor head will be a direct fit onto any Series-200, Series-300, Series-500 or Ranger Aeroqual ozone monitor. This head can be purchased as an addition to your existing monitor, or with a new base unit. To purchase with a base unit see our Aeroqual ozone monitor page. If you currently have an Aeroqual ozone monitor this sensor will be a direct fit for your current monitor.
| Compare the Aeroqual handheld devices |
|
|
|
| Interchangeable sensor head | Yes | Yes | Yes |
| Digital LCD Display | Yes | Yes | Yes |
| Min, Max, Average readings on screen | Yes | Yes | Yes |
| Field Replaceable Battery | Yes | Yes | Yes |
| Remote Sensor Capability | Yes | Yes | Yes |
| Temp and HR Sensor optional | Yes | Yes | Yes |
| External Control Outputs | Yes | Yes | Yes |
| Audible Alarm | Yes | Yes | Yes |
| High and Low Alarms | Yes | Yes | Yes |
| 0-5 VDC Analog output | Yes | Yes | Yes |
| Zero Calibration capability | Yes | Yes | Yes |
| Span Calibration capability | Yes | Yes | Yes |
| Internal Data Logging Capability | No | Yes | Yes |
|
PC connection cables and capability |
No | Yes |
Yes |
|
Built in wi-fi connection |
No | No |
Yes |
|
Hot-Swap Service |
Yes | Yes |
Yes |
Detailed Sensor Specifications for Aeroqual ambient sensors
Click on image to expand
Calibration:
This sensor is a Non-dispersive Infra-red (NDIR) sensor. The Aeroqual AQ CD sensor has a detection range of 0-2000 ppm, so the calibration gas you use must fall within this range. Refer to the table below for our recommended calibration gas options.
| Product | Range | Price |
|---|---|---|
 Carbon Dioxide Calibration Gas
|
Multiple Ranges |
$208.00
|
 Carbon Dioxide Calibration Gas - 1,000 ppm
|
1000 ppm |
$204.00
|
 Carbon Dioxide Calibration Kit
|
5000 ppm, 5.0% |
$445.00
|
 Carbon Dioxide Calibration Kit - 103L
|
1000 ppm |
$825.00
|
Carbon Dioxide Calibration Gas
Range
Carbon Dioxide Calibration Gas - 1,000 ppm
Range
Carbon Dioxide Calibration Kit
Range
Carbon Dioxide Calibration Kit - 103L
Range
Sensor Type:
There are two types of Aeroqual sensors, type 1 and type 2.
The type 1 is used with the S-200, S-300, S-500, Ranger and S-900 monitors.
The type 2 is calibrated specifically with fittings on the end allowing it to be used with the ENC enclosure and in the S930
Full list of technical information and specifications for all Aeroqual sensors
All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.Â
**Calibration Service Request Form **
|
Calibration costs do vary, see below to get an estimate:Â - In-house Calibration Fee (most electrochemical and HMOS base sensors): $150
** note that prices are subject to change per labor and parts required. |
More Information
| Manufacturer | Aeroqual |
|---|---|
| Gas | Carbon Dioxide (CO2) |
| Sensor Type | NDIR (Non-dispersive Infra-red) |
| Range | 0-2000 ppm |
| Maximum Exposure | 2000 ppm |
| Monitor sensor fits | S-200 / S-300 / S-500, Series-900, Series-930, Ranger |
| Minimum Detection Limit | 10 ppm |
| Accuracy | < ± 10 ppm + 5% |
| Resolution | 1 ppm |
| Response Time | 120 Seconds |
| Sampling Method | Fan |
| Operational Temperature Range | 0 to 40°C |
| Operational RH Range | 10 to 95% |
| Warranty | 6 Month |
