K-6909B Nitrate

This product has been discontinued.

The replacement product is on its way!


K-6909B Nitrate Kit was designed to obtain Nitrate levels from 0-675 ppm

Replacement ampoules for the K-6909B Test Kit can be found here.

Nitrate Information

Call For Price

2-5 business days

Why Choose CHEMetrics Vacuettes kits?

VACUettes ampoules are designed for highly concentrated samples. They employ a patented auto-dilution feature that eliminates the need for a time-consuming and error-prone preliminary dilution. As a result, the entire test takes only 2 to 3 minutes, with a rate of accuracy comparable to a volumetric procedure. The basic design of these 7 mm ampoules is the same as CHEMets ampoules, however, a capillary tip is attached to the tip of each ampoule.

Safe and Reliable Results:

While traditional methods often require multiple steps and thorough preparation, these test kits allow you to obtain dependable results with a few simple steps. By simplifying the testing method, Vacuettes test kits reduce the potential for operator error. Additionally, each of the ampoules contained in the test kits is vacuum sealed which helps eliminate the problem of obtaining inaccurate results from stale or unstable reagents. These reagents are stored right in the tip of each ampoule and sealed in glass, thereby minimizing direct contact with the chemicals.

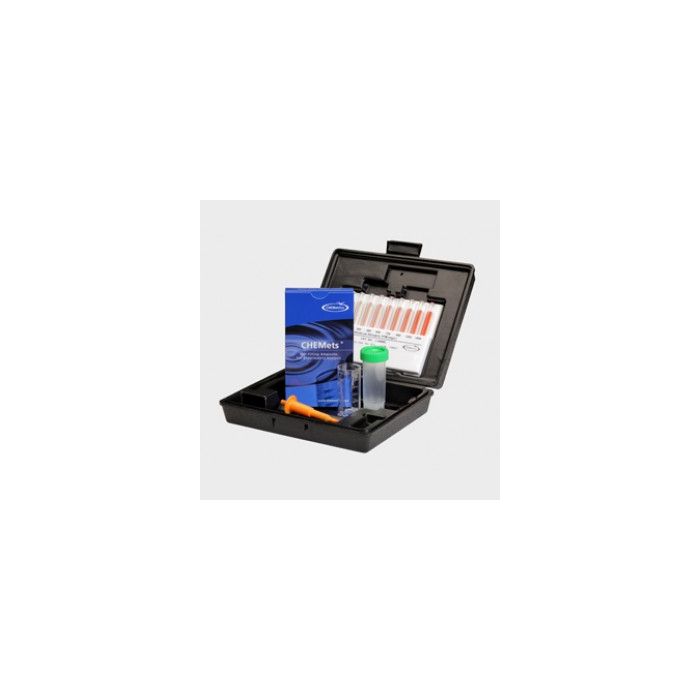

What's Included:

     -30 self-filling Ampoules


     -25 mL sample cup

     -100 uL Minipet

     -Reaction tube with lid

     -Instruction Manual



The K-6909B Nitrate Kit was designed to accurately measure the levels of Nitrate in water from 0-675 ppm. K-6909B uses the Cadmium Reduction Method. Nitrate is reduced to nitrite using cadmium as the reducing agent. The resulting nitrite concentration is then determined colorimetrically. This method is applicable to drinking and surface waters, as well as domestic and industrial wastes. Nitrite will interfere with this test. Results are expressed as ppm (mg/L) NO3-N or NO3

Nitrate is the most completely oxidized form of nitrogen. It is formed during the final stages of biological decomposition, either in wastewater treatment facilities or in natural water supplies. Low-level nitrate concentrations may be present in natural waters. However, a Maximum Contaminant Level of 10 ppm nitrate-nitrogen has been established for drinking water by the USEPA.

Shelf-life: The refill and color comparator contained in this kit have shelf-lives of 12 months

1. Place a yellow pipette tip firmly onto the end of the Minipet then depress the plunger. Immerse the tip in the sample to be tested and release the plunger. A portion of the sample will be drawn into the tip. 2. Hold the minipet over the reaction tube and depress the plunger to dispense the sample. Dilute the contents of the reaction tube to the 15 mL mark with distilled water.
3. Empty one Cadmium Foil Pack into the reaction tube. Cap the tube and shake it vigorously for exactly 3 minutes. Allow the sample to sit undisturbed for 2 minutes.  4. Pour 10 mL of the treated sample into the 25 mL sample cup. Place the ampoule, tip first, into the sample cup. Snap the tip and the ampoule will fill automatically.
5. To mix the ampoule, invert it several times,
allowing the bubble to travel from end to end. Dry the ampoule and wait 10 minutes for color development.
6. To obtain results place the ampoule between the color standards, moving it along the comparator until you can determine the closest match.

For more detailed instructions, see the link at the bottom of the page.


WARNING! This product can expose you to chemicals including mercury, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

More CHEMetrics Kits for Nitrate:

Product Number Method   Range Price
K6913 Zinc Reduction   0-1.50 ppm as N $48.00
K6903 Cadmium Reduction   0-1.50 ppm as N $50.00
K6923 Cadmium Reduction   0-7.50 ppm as N $50.00
K6933 Cadmium Reduction   0-50.0 ppm as NO3 $50.00
Chemets Kits
Product Number Method MDS Range Price
K6905 Zinc Reduction 0.3 ppm 0-3.4 ppm as N $76.00
K6904 Cadmium Reduction 0.4 ppm 0-4.5 ppm as N $82.00
K6906D Cadmium Reduction 4 ppm 0-45 ppm as N $82.00
K6906A Cadmium Reduction 20 ppm 0-225 ppm as N $82.00
K6909B Cadmium Reduction 60 ppm 0-675 ppm as N $91.00
K6909C Cadmium Reduction 240 ppm 0-2700 ppm as N $91.00



K-6909B,C Instructions

Safety Data Sheet

Cadmium Tech Sheet

Nitrate Information

More Information
Manufacturer CHEMetrics
Call For Price No
Gas Nitrate
4-20 mA Output No
Voltage Output None
Power Requirements 4 AAA Batteries
Datalogging No
Warranty 1 Year
Range 0-675 ppm
