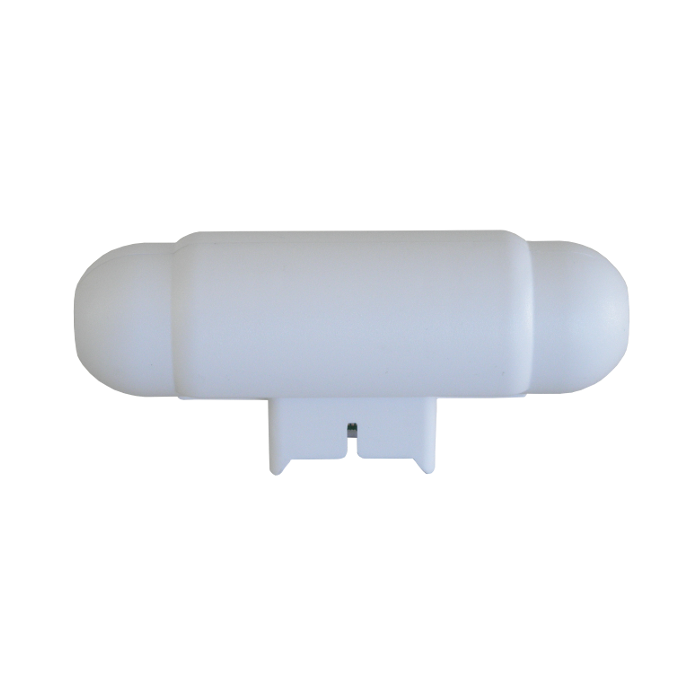

Aeroqual Chlorine (Cl2) Sensor Head 0-10 ppm (ECL)
The Aeroqual 0-10 ppm Chlorine Sensor Head is designed to provide accurate, consistent readings of the chlorine in your ambient airspace. It can serve as a replacement to your existing Ammonia head, or can add ammonia-sensing capability to your current Aeroqual monitor!
Orders for more than 1 units will take longer to ship.
- SKU
- AQ ECL
Description / Aeroqual Chlorine (Cl2) Sensor Head 0-10 ppm (ECL)
Chlorine (Cl2) sensor head. Gas Sensitive Electrochemical (GSE) head will measure Chlorine from 0-10 ppm with a 0.01 ppm resolution providing a <0.02 ppm ±10% accuracy.
This sensor uses an active sensor technology with an internal fan to pull air accoss the GSE sensor at a specific flow rate for accurate gas detection. This fan will pull a fresh gas stream across the GSE sensor every 30 seconds for accurate Chlorine detection.
Full list of technical information and specifications for all Aeroqual sensors
This sensor head will be a direct fit onto any Series-200, Series-300, Series-500 or Ranger Aeroqual ozone monitor. This head can be purchased as an addition to your existing monitor, or with a new base unit. To purchase with a base unit see our Aeroqual ozone monitor page. If you currently have an Aeroqual monitor this sensor will be a direct fit for your current monitor.
Compare the Series 300 and 500, Aeroqual Ranger monitors:
| Compare the Aeroqual handheld devices |
|
|
|
| Interchangeable sensor head | Yes | Yes | Yes |
| Digital LCD Display | Yes | Yes | Yes |
| Min, Max, Average readings on screen | Yes | Yes | Yes |
| Field Replaceable Battery | Yes | Yes | Yes |
| Remote Sensor Capability | Yes | Yes | Yes |
| Temp and HR Sensor optional | Yes | Yes | Yes |
| External Control Outputs | Yes | Yes | Yes |
| Audible Alarm | Yes | Yes | Yes |
| High and Low Alarms | Yes | Yes | Yes |
| 0-5 VDC Analog output | Yes | Yes | Yes |
| Zero Calibration capability | Yes | Yes | Yes |
| Span Calibration capability | Yes | Yes | Yes |
| Internal Data Logging Capability | No | Yes | Yes |
|
PC connection cables and capability |
No | Yes |
Yes |
|
Built in wi-fi connection |
No | No |
Yes |
|
Hot-Swap Service |
Yes | Yes |
Yes |
Detailed Sensor Specifications for Aeroqual ambient sensors
Click on image to expand
Sensor Type:
There are two types of Aeroqual sensors, type 1 and type 2.
The type 1 is used with the S-200, S-300, S-500, Ranger and S-900 monitors.
The type 2 is calibrated specifically with fittings on the end allowing it to be used with the ENC enclosure and in the S930
All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.Â
**Calibration Service Request Form **
|
Calibration costs do vary, see below to get an estimate:Â Calibration Fee: $150 Analyzer Calibration Fee: $300 PM Calibration Sensor Fee: $330 Genie Calibration Fee: $265 ATI Calibration Fee: $205 ** note that prices are subject to change per labor and parts required. |
More Information
| Manufacturer | Aeroqual |
|---|---|
| Quickbooks Stock Level | 1.000000 |
| Gas | Chlorine (Cl2) |
| Sensor Type | GSE (Gas Sensitive Electrochemical) |
| Range | 0-10 ppm |
| Maximum Exposure | 20 ppm |
| Monitor sensor fits | S-200 / S-300 / S-500, Series-900 |
| Minimum Detection Limit | 0.1 ppm |
| Accuracy | < +/- 10 % |
| Resolution | 0.01 ppm |
| Response Time | <60 s |
| Sampling Method | Fan |
| Operational Temperature Range | 0 to 40 C |
| Operational RH Range | 10 to 90% |
| Warranty | 6 Month |
