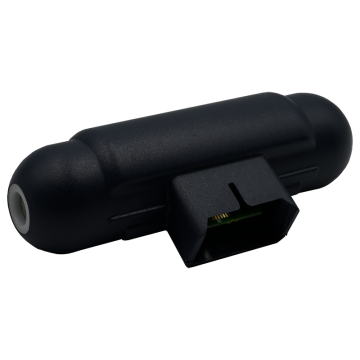

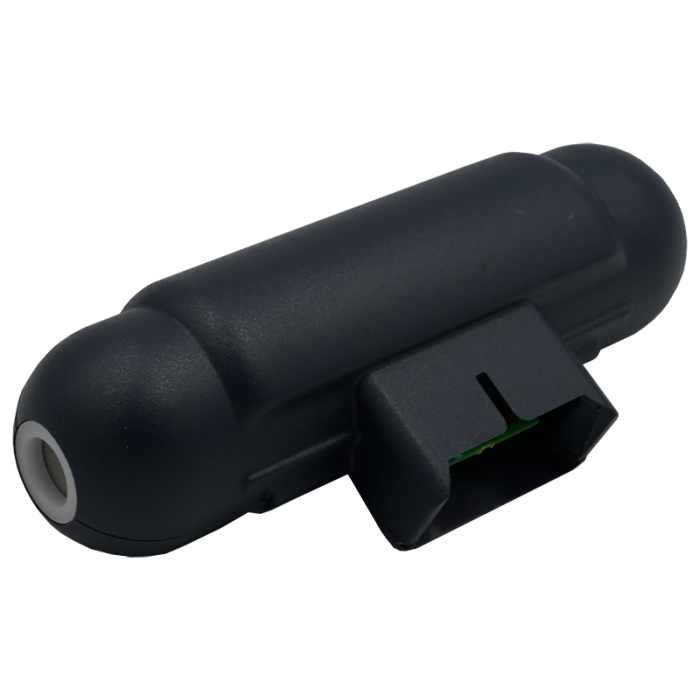

Aeroqual Formaldehyde (CH2O) Sensor Head 0-10 ppm (EF)

Aeroqual Formaldehyde (CH2O) sensor head. Its Gas Sensitive Electrochemical (GSE) technology will measure Formaldehyde from 0-10 ppm with a 0.01 ppm resolution providing a <±10 ppm accuracy (when exposed to 0.5 - 10 ppm concentration) and<± 0.05 ppm accuracy (when exposed to 0 - 0.5 ppm concentration).
- SKU
- AQ EF
Description / Aeroqual Formaldehyde (CH2O) Sensor Head 0-10 ppm (EF)
Formaldehyde (CH2O) sensor head. Gas Sensitive Electrochemical (GSE) head will measure Formaldehyde from 0-10 ppm with a 0.01 ppm resolution providing a <±10 ppm accuracy (when exposed to 0.5 - 10 ppm concentration) and<± 0.05 ppm accuracy (when exposed to 0 - 0.5 ppm concentration).
This sensor uses an active sensor technology with an internal fan to pull air across the GSS sensor at a specific flow rate for accurate gas detection. This fan will pull a fresh gas stream across the GSS sensor every 60 seconds for accurate Ozone detection in most every environment.
Full list of technical information and specifications for all Aeroqual sensors
This sensor head will be a direct fit onto any Series-200, Series-300, Series-500 or Ranger Aeroqual ozone monitor. This head can be purchased as an addition to your existing monitor, or with a new base unit. To purchase with a base unit see our Aeroqual ozone monitor page. If you currently have an Aeroqual monitor this sensor will be a direct fit for your current monitor.
Detailed Sensor Specifications for Aeroqual ambient sensors
Click on image to expand
Sensor Type:
There are two types of Aeroqual sensors, type 1 and type 2.
The type 1 is used with the S-200, S-300, S-500, Ranger and S-900 monitors.
The type 2 is calibrated specifically with fittings on the end allowing it to be used with the ENC enclosure and in the S930
All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.Â
**Calibration Service Request Form **
Calibration costs do vary, see below to get an estimate:Â Calibration Fee: $150 Analyzer Calibration Fee: $300 PM Calibration Sensor Fee: $330 Genie Calibration Fee: $265 ATI Calibration Fee: $205 ** note that prices are subject to change per labor and parts required. |
More Information
Manufacturer | Aeroqual |
---|---|
Gas | Formaldehyde (CH2O) |
Sensor Type | GSE (Gas Sensitive Electrochemical) |
Range | 0-10 ppm |
Maximum Exposure | 20 ppm |
Monitor sensor fits | S-200 / S-300 / S-500, Series-900 |
Minimum Detection Limit | 0.01 ppm |
Accuracy | < +/- 10% (from 0.5 - 10 ppm concentration) or < +/- 0.05 ppm (from 0 - 0.5 ppm concentration) |
Resolution | 0.01 ppm |
Response Time | <60 s |
Sampling Method | Fan |
Operational Temperature Range | 0 to 40 C |
Operational RH Range | 10 to 90% |
Warranty | 6 Month |
