OEM-2 Ozone Controller
OEM-2 Ozone Controller
OEM-2 Ozone Controller is great for integrated solutions or use within your ozone generator. A simple and effective method to control ozone levels, or shut down equipment in the event of an ozone leak. Available range of 0-0.1ppm.
The OEM-2 is a 12/24 VDC powered board that offers a 4-20 mA output.

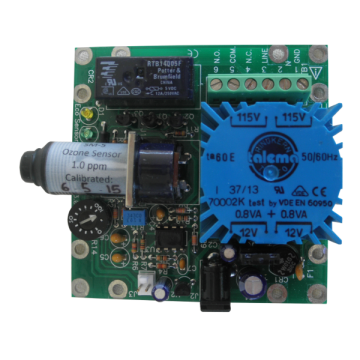

For reference, the OEM-1 is a 120 VAC powered device that offers a 0-1 VDC output.
- SKU
- oem-2
- Size
- 3.25-in wide x 3.25" long x 0.875" tall
- Buy 5 for $330.00 each and save 8%
- Buy 10 for $290.00 each and save 19%
Related Products
Description / OEM-2 Ozone Controller
Quantity Pricing:
1-4 = $360 each
5-9 = $330 each
10+ = $290 each
*Call for quantity discounts
The model OEM-2 is a system to control ozone generators and alarms based on an adjustable ozone concentration set point. It is designed to work with plug-in sensor modules for 0-0.1 ppm. These are specified when ordering by putting the ppm range after the model number. For example, a 0.1 ppm OEM-2 board system would be OEM-2-.1 and the replacement sensor module for it would be SM-1-.1. These same sensor modules also work in our OEM-1 boards, which have features such as being powered by 110/220 VAC. The sensors modules can also be located at a distance from the OEM-2 boards by 2 or 8 meter cables. These are readily available DIN M/F 5 pin extension cables.
One component of the OEM-2 system is the base board which incorporates the power supply, final signal processing, set-point controls, and the output relay. The other component is the sensor mounted with its associated electronics in a cylindrical DIN plug. This is pre-calibrated in our lab so that the sensor module and main board module together work as a calibrated system. If the sensor module is damaged, it is simply replaced by another precalibrated module.
When it comes to calibrating your OEM-2 Ozone Controller, you should replace your sensor annually.
OEM-2 Ozone Sensor Replacement:
Sensor replacement on OEM-2 is simply plug-n-play. Remove the old SM-1 and replace with new.
Downloads:
Links:
EcoSensors Calibration information
More Information
| Manufacturer | Eco Sensors |
|---|---|
| Gas | Ozone (O3) |
| Resolution | 0.01 ppm |
| Integrated Relays | Yes |
| Response Time | 8 seconds |
| Sensor type | Heated Metal Oxide (HMOS) |
| Sampling Method | Diffusion |
| Alarms | NO/NC relay for control purposes |
| Operational Temperature Range | 35 - 100 deg F |
| Operational RH Range | 0 - 85% RH |
| Power Requirements | 12 VDC |
| Size | 3.25-in wide x 3.25" long x 0.875" tall |
| Field Replaceable Battery | No |
| Warranty | 1 Year |
| Audible Alarm | No |
| Calibration | Replace with Pre-Calibrated Sensor Annually |
| Sensor Life | 1 Year |
| Range | 0-0.1 ppm |
| Unit Features | -Field Replaceable Sensor -User Settable Relay -4-20 mA Output -Optional Remote Sensor Cable |
| Sensor Range | 0-0.1 ppm |
| Sensor Range | 0-0.1 ppm (O3) |
