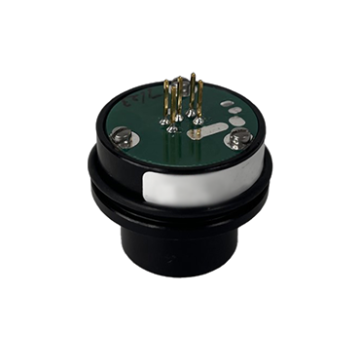

ATI Carbon Monoxide Sensor 0-200 ppm (00-1012)

Smart Sensor Modules:

0-200 ppm Carbon Monoxide sensor with a resolution of 1 ppm.

The ATI Smart Sensor is a versatile, plug-and-play gas detection solution designed for use with the D-16, F-12is, F-12D, and D-12 gas detectors. It allows for quick sensor swaps, making it ideal for industries that require continuous and reliable gas monitoring.

Carbon Monoxide Information

SKU
ATI 00-1012
  $397.00

Description / ATI Carbon Monoxide Sensor 0-200 ppm (00-1012)

0-200 ppm Carbon Monoxide sensor with a resolution of 1 ppm.

Standard Range = 0-200 ppm

Minimum Range = 0-50 ppm

Maximum Range = 0-1000 ppm

Downloadable Specification Sheet

These sensors come ready to operate in any of the above preset ranges (standard, minimum, or maximum).  When you connect the Sensing Module to the Gas Transmitter, you will be asked which range you would like to use.  We list the standard range as the sensors range, but each sensor is capable of operation in all 3 ranges.

Smart sensors are calibrated to the standard range of gas detection as outlined in the specifications above. Sensor modules are ATI's newest miniaturized smart sensor modules.  Each sensor module is actually a sensor, amplifier, and memory module in one compact package.  Because of this design, sensor modules can be calibrated independently and simply plugged into any detector for immediate use.  When installed in a detector, calibration data is loading into the microprocessor so that no adjustments are needed.  The result is that a detector can, for example, go from phosgene measurement to ammonia measurement in less than one minute.

Using the optional sensor keeper allows up to 4 sensors to be powered by the internal sensor keeper battery and keep sensors ready for use.  This ensures maximum accuracy in the shortest time frame possible.

The ATI Smart Sensors are compatible with the D-16, F-12is, F-12D, and D-12 gas detectors.

All smart sensors are constructed of glass filled polycarbonate and use an electrochemical cell for gas detection.

C16 Sensor specifications

Calibration Services:

All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. These sensors are constructed of glass filled polycarbonate and use an electrochemical cell for gas detection The ATI Carbon Monoxide 0-200 ppm (00-1012) sensor has a detection range of 0-200 ppm, so the calibration gas you use must fall within this range. Refer to the table below for our recommended calibration gas options.

Product Range Price
Carbon Monoxide Calibration Gas Small - 50 ppm
Carbon Monoxide Calibration Gas Small - 50 ppm
50ppm
$72.00
Carbon Monoxide Calibration Gas - 50 ppm
Carbon Monoxide Calibration Gas - 50 ppm
50 ppm
$130.00
Carbon Monoxide Calibration Gas
Carbon Monoxide Calibration Gas
Multiple Ranges
$185.00
Carbon Monoxide Calibration Kit Small - 17L
Carbon Monoxide Calibration Kit Small - 17L
50ppm
$343.00
Carbon Monoxide (CO) Calibration Kit
Carbon Monoxide (CO) Calibration Kit
10 ppm, 20 ppm, 25 ppm, 35 ppm, 50 ppm, 60 ppm, 100 ppm, 200 ppm, 300 ppm
$419.00
Carbon Monoxide Calibration Kit - 103L
Carbon Monoxide Calibration Kit - 103L
50 ppm
$687.00
Carbon Monoxide Calibration Gas Small - 50 ppm

Carbon Monoxide Calibration Gas Small - 50 ppm

$72.00

Range

50ppm
View Details
Carbon Monoxide Calibration Gas - 50 ppm

Carbon Monoxide Calibration Gas - 50 ppm

$130.00

Range

50 ppm
View Details
Carbon Monoxide Calibration Gas

Carbon Monoxide Calibration Gas

$185.00

Range

Multiple Ranges
View Details
Carbon Monoxide Calibration Kit Small - 17L

Carbon Monoxide Calibration Kit Small - 17L

$343.00

Range

50ppm
View Details
Carbon Monoxide (CO) Calibration Kit

Carbon Monoxide (CO) Calibration Kit

$419.00

Range

10 ppm, 20 ppm, 25 ppm, 35 ppm, 50 ppm, 60 ppm, 100 ppm, 200 ppm, 300 ppm
View Details
Carbon Monoxide Calibration Kit - 103L

Carbon Monoxide Calibration Kit - 103L

$687.00

Range

50 ppm
View Details





All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.

Calibration Service Request Form








More Information

Manufacturer ATI
Gas Carbon Monoxide (CO)
Sensor Type Electrochemical Cell
Range 0-200 ppm
Maximum Exposure 0-1000 ppm
Minimum Detection Limit 0-50 ppm
Accuracy ± 5% of value
Resolution 1 ppm
Standard Range 0-200 ppm
Minimum Range 0-50 ppm
Maximum Range 0-1000 ppm
Monitor sensor fits D16 / C16 / F12 / D12
Sensitivity 1% of sensor module range
Operational Temperature Range -25º to +55ºC
Operational RH Range 0-95% Non-condensing
Warranty 1 Year
