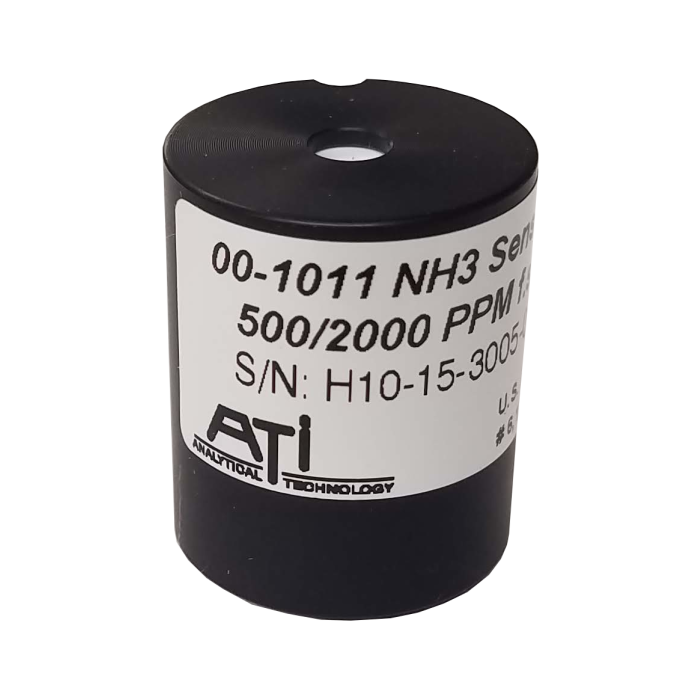

ATI Ammonia Sensor 0-1000 ppm (00-1011)
Smart Sensor Modules:
0-1000 ppm Ammonia sensor with resolution of 1 ppm.
The ATI Smart Sensor is a versatile, plug-and-play gas detection solution designed for use with the D-16, F-12is, F-12D, and D-12 gas detectors. It allows for quick sensor swaps, making it ideal for industries that require continuous and reliable gas monitoring.
Lead time for orders over 3 units: 2-3 weeks
- SKU
- ATI 00-1011
Description / ATI Ammonia Sensor 0-1000 ppm (00-1011)
0-1000 ppm Ammonia sensor with resolution of 1 ppm.
Standard Range = 0-1,000 ppm
Minimum Range = 0-500 ppm
Maximum Range = 0-2,000 ppm
These sensors come ready to operate in any of the above preset ranges (standard, minimum, or maximum). When you connect the Sensing Module to the Gas Transmitter, you will be asked which range you would like to use. We list the standard range as the sensors range, but each sensor is capable of operation in all 3 ranges.
Smart sensors are calibrated to the standard range of gas detection as outlined in the specifications above.
Sensor modules are ATI's newest miniaturized smart sensor modules. Each sensor module is actually a sensor, amplifier, and memory module in one compact package. Because of this design, sensor modules can be calibrated independently and simply plugged into any detector for immediate use. When installed in a detector, calibration data is loading into the microprocessor so that no adjustments are needed. The result is that a detector can, for example, go from phosgene measurement to ammonia measurement in less than one minute.
Using the optional sensor keeper allows up to 4 sensors to be powered by the internal sensor keeper battery and keep sensors ready for use. This ensures maximum accuracy in the shortest time frame possible.
The ATI Smart Sensors are compatible with the D-16, F-12is, F-12D, and D-12 gas detectors.
All smart sensors are constructed of glass filled polycarbonate and use an electrochemical cell for gas detection.
Click on image to expand
All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. These sensors are constructed of glass filled polycarbonate and use an electrochemical cell for gas detection The ATI Ammonia 0-1000 ppm (00-1011) sensor has a detection range of 0-1000 ppm, so the calibration gas you use must fall within this range. Refer to the table below for our recommended calibration gas options.
| Product | Range | Price |
|---|---|---|

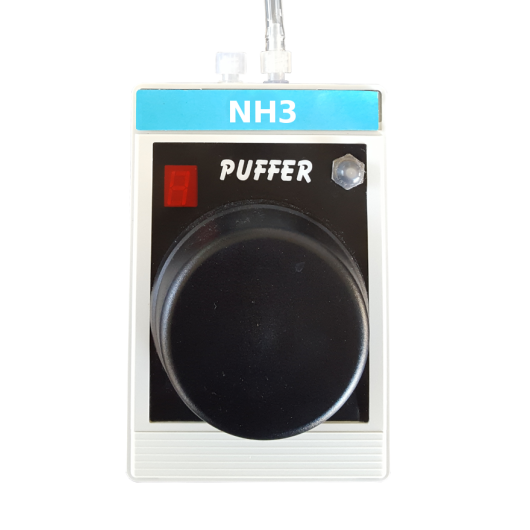

 Ammonia Puffer Test Gas Generator
|
$523.00
|
|
 Ammonia Calibration Kit
|
25 ppm, 50 ppm, 100 ppm, 250 ppm, 300 ppm |
$572.00
|
 GENie QC-1 Ammonia Calibration System
|
Multiple Ranges |
$3,165.00
|
Ammonia Puffer Test Gas Generator
Range
Ammonia Calibration Kit
Range
GENie QC-1 Ammonia Calibration System
Range
All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.Â
Calibration Service Request Form
Â
More Information
| Manufacturer | ATI |
|---|---|
| Gas | Ammonia (NH3) |
| Sensor Type | Electrochemical Cell |
| Range | 0-1000 ppm |
| Maximum Exposure | 0-2000 ppm |
| Minimum Detection Limit | 0-500 ppm |
| Accuracy | ± 5% of value |
| Resolution | 1 ppm |
| Standard Range | 0-1000 ppm |
| Minimum Range | 0-500 ppm |
| Maximum Range | 0-2000 ppm |
| Monitor sensor fits | D16 / C16 / F12 / D12 |
| Sensitivity | 1% of sensor module range |
| Operational Temperature Range | -25º to +55ºC |
| Operational RH Range | 0-95% Non-condensing |
| Warranty | 1 Year |
