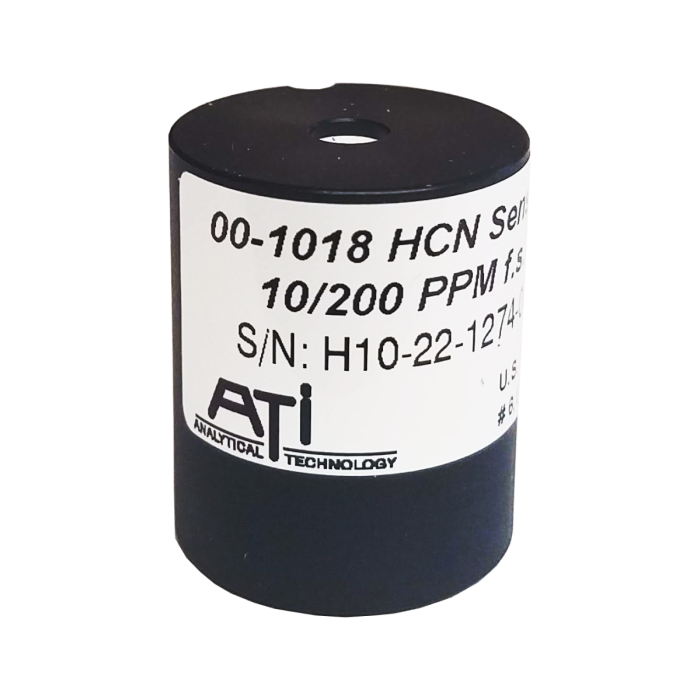

ATI Hydrogen Cyanide Sensor 0-20 ppm (00-1018)

Smart Sensor Modules:

0-20 ppm Hydrogen Cyanide sensor with a resolution of 0.1 ppm.

The ATI Smart Sensor is a versatile, plug-and-play gas detection solution designed for use with the D-16, F-12is, F-12D, and D-12 gas detectors. It allows for quick sensor swaps, making it ideal for industries that require continuous and reliable gas monitoring.

Hydrogen Cyanide Information

SKU
ATI 00-1018
  $491.00

Description / ATI Hydrogen Cyanide Sensor 0-20 ppm (00-1018)

0-20 ppm Hydrogen Cyanide sensor with a resolution of 0.1 ppm.

Standard Range = 0-20 ppm

Minimum Range = 0-10 ppm

Maximum Range = 0-200 ppm

Sensor modules are ATI's newest miniaturized smart sensor modules.  Each sensor module is actually a sensor, amplifier, and memory module in one compact package.  Because of this design, sensor modules can be calibrated independently and simply plugged into any detector for immediate use.  When installed in a detector, calibration data is loading into the microprocessor so that no adjustments are needed.  The result is that a detector can, for example, go from phosgene measurement to ammonia measurement in less than one minute.

Using the optional sensor keeper allows up to 4 sensors to be powered by the internal sensor keeper battery and keep sensors ready for use.  This ensures maximum accuracy in the shortest time frame possible.

The ATI Smart Sensors are compatible with the D-16, F-12is, F-12D, and D-12 gas detectors. All smart sensors are constructed of glass filled polycarbonate and use an electrochemical cell for gas detection.



C16 Sensor specifications



Calibration Services:

All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. These sensors are constructed of glass filled polycarbonate and use an electrochemical cell for gas detection The ATI Hydrogen Cyanide Sensor 0-20 ppm (00-1018) has a detection range of 0-20 ppm, so the calibration gas you use must fall within this range. Refer to the table below for our recommended calibration gas options.

Product Range Price
GENie EC Calibration Gas Kit
GENie EC Calibration Gas Kit
Multiple Ranges
As low as $2,547.00
Hydrogen Cyanide GENie EC Source Gas
Hydrogen Cyanide GENie EC Source Gas
0.5-5 ppm
As low as $569.00
GENie EC Calibration Gas Kit

GENie EC Calibration Gas Kit

As low as $2,547.00

Range

Multiple Ranges
View Details
Hydrogen Cyanide GENie EC Source Gas

Hydrogen Cyanide GENie EC Source Gas

As low as $569.00

Range

0.5-5 ppm
View Details



More Information

Manufacturer ATI
Gas Hydrogen Cyanide (HCN)
Sensor Type Electrochemical Cell
Range 0-20 ppm
Maximum Exposure 0-200 ppm
Minimum Detection Limit 0-10 ppm
Accuracy ± 5% of value
Resolution 0.1 ppm
Standard Range 0-20 ppm
Minimum Range 0-10 ppm
Maximum Range 0-200 ppm
Monitor sensor fits D16 / C16 / F12 / D12
Sensitivity 1% of sensor module range
Operational Temperature Range -25º to +55ºC
Operational RH Range 0-95% Non-condensing
Warranty 1 Year
