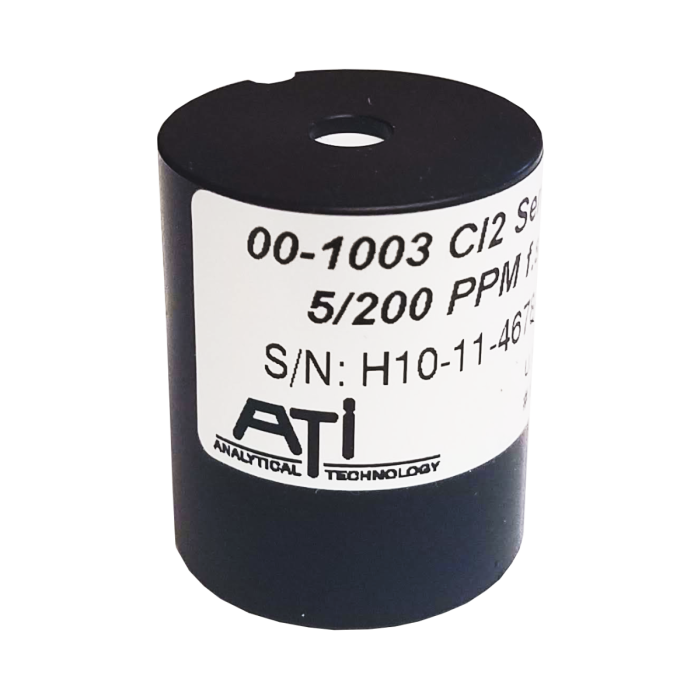

ATI Chlorine Sensor 0-20 ppm (00-1003)
ATI Chlorine Sensor 0-20 ppm (00-1003)
Smart Sensor Modules:
0-20 ppm Chlorine sensor with a resolution of 0.01 ppm
The ATI Smart Sensor is a versatile, plug-and-play gas detection solution designed for use with the D-16, F-12is, F-12D, and D-12 gas detectors. It allows for quick sensor swaps, making it ideal for industries that require continuous and reliable gas monitoring.
- SKU
- ATI 00-1003
Related Products
Description / ATI Chlorine Sensor 0-20 ppm (00-1003)
0-20 ppm Chlorine sensor with a resolution of 0.01 ppm.
Standard Range = 0-20 ppm
Minimum Range = 0-5 ppm
Maximum Range = 0-200 ppm
These sensors come ready to operate in any of the above preset ranges (standard, minimum, or maximum). When you connect the Sensing Module to the Gas Transmitter, you will be asked which range you would like to use. We list the standard range as the sensors range, but each sensor is capable of operation in all 3 ranges.
Smart sensors are calibrated to the standard range of gas detection as outlined in the specifications above. Each sensor can be calibrated to any range within the minimum or maximum range.
Sensor modules are ATI's newest miniaturized smart sensor modules. Each sensor module is actually a sensor, amplifier, and memory module in one compact package. Because of this design, sensor modules can be calibrated independently and simply plugged into any detector for immediate use. When installed in a detector, calibration data is loading into the microprocessor so that no adjustments are needed. The result is that a detector can, for example, go from phosgene measurement to ammonia measurement in less than one minute.
Using the optional sensor keeper allows up to 4 sensors to be powered by the internal sensor keeper battery and keep sensors ready for use. This ensures maximum accuracy in the shortest time frame possible.
The ATI Smart Sensors are compatible with the D-16, F-12is, F-12D, and D-12 gas detectors.
All smart sensors are constructed of glass-filled polycarbonate and use an electrochemical cell for gas detection.
| Product | Maximum Range | Minimum Range | Range | Resolution | Price |
|---|---|---|---|---|---|
 ATI Acetic Acid vapor Sensor 0-100 ppm (00-1045)
|
0-500 ppm | 0-100 ppm | 0-100 ppm | 1 ppm |
$491.00
|
 ATI Acetylene Sensor 0-500 ppm (00-1057)
|
0-2000 ppm | 0-200 ppm | 0-2000 ppm | 1 ppm |
$421.00
|
 ATI Acid Gases Sensor 0-20 ppm (00-1038)
|
0-200 ppm | 0-10 ppm | 0-20 ppm | 0.1 ppm |
$491.00
|
 ATI Alcohol Sensor 0-200 ppm (00-1043)
|
0-500 ppm | 0-50 ppm | 0-200 ppm | 1 ppm |
$421.00
|
 ATI Alcohol Sensor 0-2000 ppm (00-1044)
|
0-2000 ppm | 0-500 ppm | 0-2000 ppm | 1 ppm |
$421.00
|
 ATI Ammonia Sensor 0-1000 ppm (00-1011)
|
0-2000 ppm | 0-500 ppm | 0-1000 ppm | 1 ppm |
$605.00
|
 ATI Ammonia Sensor 0-200 ppm (00-1010)
|
0-500 ppm | 0-50 ppm | 0-200 ppm | 1 ppm |
$491.00
|
 ATI Arsine Sensor 0-10 ppm (00-1025)
|
0-200 ppm | 0-10 ppm | 0-100 ppm | 0.1 ppm |
$636.00
|
 ATI Arsine Sensor 0-1000 ppb (00-1024)
|
0-2000 ppm | 0-500 ppm | 0-1000 ppm | 1 ppb |
$636.00
|
 ATI Bromine Sensor 0-2 ppm (00-1000)
|
0-5 ppm | 0-1 ppm | 0-2 ppm | 0.01 ppm |
$421.00
|
 ATI Bromine Sensor 0-20 ppm (00-1001)
|
0-200 ppm | 0-5 ppm | 0-20 ppm | 0.1 ppm |
$405.00
|
 ATI Carbon Dioxide Sensor 0-1% (00-1886)
|
0-1.5% | 0-0.2% | 0-1% | 0.01% |
$717.00
|
 ATI Carbon Monoxide Sensor 0-200 ppm (00-1012)
|
0-1000 ppm | 0-50 ppm | 0-200 ppm | 1 ppm |
$394.00
|
 ATI Chlorine Dioxide Sensor 0-1 ppm (00-1425)
|
0-5 ppm | 0-1 ppm | 0-1 ppm | 0.01 ppm |
$491.00
|
 ATI Chlorine Dioxide Sensor 0-1000 ppm (00-1359)
|
0-1000 ppm | 0-200 ppm | 0-1000 ppm | 1.0 ppm |
$529.00
|
 ATI Chlorine Dioxide Sensor 0-2 ppm (00-1004)
|
0-5 ppm | 0-1 ppm | 0-2 ppm | 0.01 ppm |
$421.00
|
 ATI Chlorine Dioxide Sensor 0-20 ppm (00-1005)
|
0-200 ppm | 0-5 ppm | 0-20 ppm | 0.1 ppm |
$394.00
|

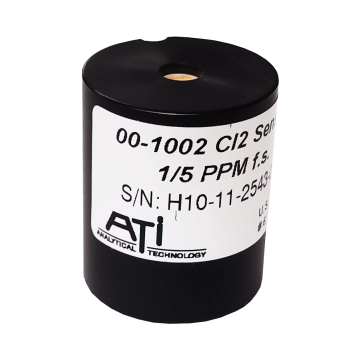

 ATI Chlorine Sensor 0-2 ppm (00-1002)
|
0-5 ppm | 0-1 ppm | 0-2 ppm | 0.01 ppm |
$421.00
|
 ATI Chlorine Sensor 0-20 ppm (00-1003)
|
0-200 ppm | 0-5 ppm | 0-20 ppm | 0.01 ppm |
$394.00
|
 ATI Diborane Sensor 0-10 ppm (00-1027)
|
0-200 ppm | 0-10 ppm | 0-10 ppm | 0.1 ppm |
$610.00
|
 ATI Diborane Sensor 0-1000 ppb (00-1026)
|
0-2000 ppm | 0-500 ppm | 0-1000 ppb | 1 ppb |
$636.00
|
 ATI Dimethylamine (DMA) Sensor 0-100 ppm (00-1450)
|
0-200 ppm | 0-100 ppm | 0-100 ppm | 1 ppm |
$556.00
|
 ATI Ethylene Oxide Sensor 0-20 ppm (00-1039)
|
0-200 ppm | 0-20 ppm | 0-20 ppm | 0.1 ppm |
$421.00
|
 ATI Flourine Sensor 0-20 ppm (00-1007)
|
0-20 ppm | 0-5 ppm | 0-20 ppm | 0.1 ppm |
$394.00
|
 ATI Fluorine Sensor 0-2 ppm (00-1006)
|
0-5 ppm | 0-1 ppm | 0-2 ppm | 0.01 ppm |
$421.00
|
 ATI Formaldehyde Sensor 0-1000 ppm (00-1349)
|
0-2000 ppm | 0-500 ppm | 0-1000 ppm | 1 ppm |
$636.00
|
 ATI Formaldehyde Sensor 0-20 ppm (00-1040)
|
0-200 ppm | 0-20 ppm | 0-20 ppm | 0.1 ppm |
$421.00
|
 ATI Germane Sensor 0-10 ppm (00-1029)
|
0-200 ppm | 0-10 ppm | 0-10 ppm | 0.1 ppm |
$610.00
|
 ATI Germane Sensor 0-1000 PPB (00-1028)
|
0-200 ppm | 0-10 ppm | 0-1000 ppb | 1 ppb |
$636.00
|
 ATI Hydrocarbon Sensor (00-1516)
|
0-500 ppm | 0-50 ppm | 0-1000 ppm | 1 ppm |
$491.00
|
 ATI Hydrogen Bromide Sensor 0-20 ppm (00-1455)
|
0-200 ppm | 0-10 ppm | 0-20 ppm | 0.1 ppm |
$491.00
|
 ATI Hydrogen Chloride Sensor 0-20 ppm (00-1017)
|
0-200 ppm | 0-10 ppm | 0-20 ppm | 0.1 ppm |
$491.00
|
 ATI Hydrogen Cyanide Sensor 0-20 ppm (00-1018)
|
0-200 ppm | 0-10 ppm | 0-20 ppm | 0.1 ppm |
$491.00
|
 ATI Hydrogen Fluoride Sensor 0-20 ppm (00-1019)
|
0-200 ppm | 0-10 ppm | 0-20 ppm | 0.1 ppm |
$491.00
|
 ATI Hydrogen Peroxide Sensor 0-1000 ppm (00-1169)
|
0-2000 ppm | 0-200 ppm | 0-1000 ppm | 1 ppm |
$610.00
|
 ATI Hydrogen Peroxide Sensor 0-20 ppm (00-1042)
|
0-100 ppm | 0-10 ppm | 0-20 ppm | 0.1 ppm |
$421.00
|
 ATI Hydrogen Selenide Sensor 0-10 ppm (00-1031)
|
0-200 ppm | 0-10 ppm | 0-10 ppm | 0.1 ppm |
$610.00
|
 ATI Hydrogen Selenide Sensor 0-1000 ppb (00-1030)
|
0-2000 ppb | 0-500 ppb | 0-1000 ppb | 1 ppb |
$636.00
|
 ATI Hydrogen Sensor 0-2000 ppm (00-1041)
|
0-2000 ppm | 0-500 ppm | 0-2000 ppm | 1 ppm |
$491.00
|
 ATI Hydrogen Sensor 0-4% (00-1013)
|
0-10% | 0-1% | 0-4% | 0.01% |
$459.00
|
 ATI Hydrogen Sulfide Sensor 0-50 ppm (00-1020)
|
0-200 ppm | 0-10 ppm | 0-50 ppm | 0.1 ppm |
$421.00
|
 ATI Hydrogen Sulfide Sensor 0-500 ppm (00-1469)
|
0-1000 ppm | 0-200 ppm | 0-500 ppm | 1 ppm |
$491.00
|
 ATI Iodine Sensor 0-2 ppm (00-1036)
|
0-5 ppm | 0-1 ppm | 0-2 ppm | 0.01 ppm |
$421.00
|
 ATI Iodine Sensor 0-20 ppm (00-1037)
|
0-200 ppm | 0-5 ppm | 0-20 ppm | 0.1 ppm |
$394.00
|
 ATI Methane Sensor 0-100% LEL (00-1883)
|
0-100% | 0-20% |
$717.00
|
||
 ATI Nitric Oxide Sensor 0-200 ppm (00-1021)
|
0-500 ppm | 0-50 ppm | 0-200 ppm | 1 ppm |
$421.00
|
 ATI Nitrogen Dioxide Sensor 0-20 ppm (00-1022)
|
0-200 ppm | 0-10 ppm | 0-20 ppm | 0.1 ppm |
$421.00
|
 ATI NOx Sensor 0-200 ppm (00-1181)
|
0-500 ppm | 0-50 ppm | 0-200 ppm | 1 ppm |
$421.00
|
 ATI Oxygen Sensor 0-25% (00-1014)
|
0-25% | 0-5% | 0-25% | 0.01% |
$394.00
|
 ATI Ozone Sensor 0-1,000 ppb (00-1163)
|
0-2,000 ppb | 0-500 ppb | 0-1000 ppb | 1 ppb |
$491.00
|
 ATI Ozone Sensor 0-1000 ppm (00-1358)
|
0-1000 ppm | 0-200 ppm | 0-1000 ppm | 1 ppm |
$529.00
|
 ATI Ozone Sensor 0-2 ppm (00-1008)
|
0-5 ppm | 0-0.01 ppm | 0-2 ppm | 0.01 ppm |
$421.00
|
 ATI Ozone Sensor 0-20 ppm (00-1009)
|
0-200 ppm | 0-0.1 ppm | 0-20 ppm | 0.1 ppm |
$394.00
|
 ATI Peracetic Acid Vapor sensor 0-2 ppm (00-1704)
|
0-5 ppm | 0-1 ppm | 0-2 ppm | 0.1 ppm |
$798.00
|
 ATI Peracetic Acid Vapor sensor 0-20 ppm (00-1705)
|
0-100 ppm | 0-10 ppm | 0-20 ppm | 1 ppm |
$744.00
|
 ATI Phosgene Sensor 0-100 ppm (00-1016)
|
0-100 ppm | 0-5 ppm | 0-10 ppm | 0.1 ppm |
$610.00
|
 ATI Phosgene Sensor 0-2ppm (00-1015)
|
0-5 ppm | 0-1 ppm | 0-2 ppm | 0.01 ppm |
$610.00
|
 ATI Phosphine Sensor 0-10 ppm (00-1033)
|
0-200 ppm | 0-10 ppm | 0-10 ppm | 0.1 ppm |
$610.00
|
 ATI Phosphine Sensor 0-1000 ppb (00-1032)
|
0-2000 ppb | 0-500 ppb | 0-1000 ppb | 1 ppb |
$636.00
|
 ATI Phosphine Sensor 0-1000 ppm (00-1034)
|
0-2000 ppm | 0-200 ppm | 0-1000 ppm | 1 ppm |
$691.00
|
 ATI Silane Sensor 0-10 ppm (00-1035)
|
0-200 ppm | 0-10 ppm | 0-10 ppm | 0.1 ppm |
$610.00
|
 ATI Sulfur Dioxide Sensor 0-20 ppm (00-1023)
|
0-200 ppm | 0-10 ppm | 0-20 ppm | 0.1 ppm |
$421.00
|
ATI Acetic Acid vapor Sensor 0-100 ppm (00-1045)
Maximum Range
Minimum Range
Range
Resolution
ATI Acetylene Sensor 0-500 ppm (00-1057)
Maximum Range
Minimum Range
Range
Resolution
ATI Acid Gases Sensor 0-20 ppm (00-1038)
Maximum Range
Minimum Range
Range
Resolution
ATI Alcohol Sensor 0-200 ppm (00-1043)
Maximum Range
Minimum Range
Range
Resolution
ATI Alcohol Sensor 0-2000 ppm (00-1044)
Maximum Range
Minimum Range
Range
Resolution
ATI Ammonia Sensor 0-1000 ppm (00-1011)
Maximum Range
Minimum Range
Range
Resolution
ATI Ammonia Sensor 0-200 ppm (00-1010)
Maximum Range
Minimum Range
Range
Resolution
ATI Arsine Sensor 0-10 ppm (00-1025)
Maximum Range
Minimum Range
Range
Resolution
ATI Arsine Sensor 0-1000 ppb (00-1024)
Maximum Range
Minimum Range
Range
Resolution
ATI Bromine Sensor 0-2 ppm (00-1000)
Maximum Range
Minimum Range
Range
Resolution
ATI Bromine Sensor 0-20 ppm (00-1001)
Maximum Range
Minimum Range
Range
Resolution
ATI Carbon Dioxide Sensor 0-1% (00-1886)
Maximum Range
Minimum Range
Range
Resolution
ATI Carbon Monoxide Sensor 0-200 ppm (00-1012)
Maximum Range
Minimum Range
Range
Resolution
ATI Chlorine Dioxide Sensor 0-1 ppm (00-1425)
Maximum Range
Minimum Range
Range
Resolution
ATI Chlorine Dioxide Sensor 0-1000 ppm (00-1359)
Maximum Range
Minimum Range
Range
Resolution
ATI Chlorine Dioxide Sensor 0-2 ppm (00-1004)
Maximum Range
Minimum Range
Range
Resolution
ATI Chlorine Dioxide Sensor 0-20 ppm (00-1005)
Maximum Range
Minimum Range
Range
Resolution
ATI Chlorine Sensor 0-2 ppm (00-1002)
Maximum Range
Minimum Range
Range
Resolution
ATI Chlorine Sensor 0-20 ppm (00-1003)
Maximum Range
Minimum Range
Range
Resolution
ATI Diborane Sensor 0-10 ppm (00-1027)
Maximum Range
Minimum Range
Range
Resolution
ATI Diborane Sensor 0-1000 ppb (00-1026)
Maximum Range
Minimum Range
Range
Resolution
ATI Dimethylamine (DMA) Sensor 0-100 ppm (00-1450)
Maximum Range
Minimum Range
Range
Resolution
ATI Ethylene Oxide Sensor 0-20 ppm (00-1039)
Maximum Range
Minimum Range
Range
Resolution
ATI Flourine Sensor 0-20 ppm (00-1007)
Maximum Range
Minimum Range
Range
Resolution
ATI Fluorine Sensor 0-2 ppm (00-1006)
Maximum Range
Minimum Range
Range
Resolution
ATI Formaldehyde Sensor 0-1000 ppm (00-1349)
Maximum Range
Minimum Range
Range
Resolution
ATI Formaldehyde Sensor 0-20 ppm (00-1040)
Maximum Range
Minimum Range
Range
Resolution
ATI Germane Sensor 0-10 ppm (00-1029)
Maximum Range
Minimum Range
Range
Resolution
ATI Germane Sensor 0-1000 PPB (00-1028)
Maximum Range
Minimum Range
Range
Resolution
ATI Hydrocarbon Sensor (00-1516)
Maximum Range
Minimum Range
Range
Resolution
ATI Hydrogen Bromide Sensor 0-20 ppm (00-1455)
Maximum Range
Minimum Range
Range
Resolution
ATI Hydrogen Chloride Sensor 0-20 ppm (00-1017)
Maximum Range
Minimum Range
Range
Resolution
ATI Hydrogen Cyanide Sensor 0-20 ppm (00-1018)
Maximum Range
Minimum Range
Range
Resolution
ATI Hydrogen Fluoride Sensor 0-20 ppm (00-1019)
Maximum Range
Minimum Range
Range
Resolution
ATI Hydrogen Peroxide Sensor 0-1000 ppm (00-1169)
Maximum Range
Minimum Range
Range
Resolution
ATI Hydrogen Peroxide Sensor 0-20 ppm (00-1042)
Maximum Range
Minimum Range
Range
Resolution
ATI Hydrogen Selenide Sensor 0-10 ppm (00-1031)
Maximum Range
Minimum Range
Range
Resolution
ATI Hydrogen Selenide Sensor 0-1000 ppb (00-1030)
Maximum Range
Minimum Range
Range
Resolution
ATI Hydrogen Sensor 0-2000 ppm (00-1041)
Maximum Range
Minimum Range
Range
Resolution
ATI Hydrogen Sensor 0-4% (00-1013)
Maximum Range
Minimum Range
Range
Resolution
ATI Hydrogen Sulfide Sensor 0-50 ppm (00-1020)
Maximum Range
Minimum Range
Range
Resolution
ATI Hydrogen Sulfide Sensor 0-500 ppm (00-1469)
Maximum Range
Minimum Range
Range
Resolution
ATI Iodine Sensor 0-2 ppm (00-1036)
Maximum Range
Minimum Range
Range
Resolution
ATI Iodine Sensor 0-20 ppm (00-1037)
Maximum Range
Minimum Range
Range
Resolution
ATI Methane Sensor 0-100% LEL (00-1883)
Maximum Range
Minimum Range
Range
Resolution
ATI Nitric Oxide Sensor 0-200 ppm (00-1021)
Maximum Range
Minimum Range
Range
Resolution
ATI Nitrogen Dioxide Sensor 0-20 ppm (00-1022)
Maximum Range
Minimum Range
Range
Resolution
ATI NOx Sensor 0-200 ppm (00-1181)
Maximum Range
Minimum Range
Range
Resolution
ATI Oxygen Sensor 0-25% (00-1014)
Maximum Range
Minimum Range
Range
Resolution
ATI Ozone Sensor 0-1,000 ppb (00-1163)
Maximum Range
Minimum Range
Range
Resolution
ATI Ozone Sensor 0-1000 ppm (00-1358)
Maximum Range
Minimum Range
Range
Resolution
ATI Ozone Sensor 0-2 ppm (00-1008)
Maximum Range
Minimum Range
Range
Resolution
ATI Ozone Sensor 0-20 ppm (00-1009)
Maximum Range
Minimum Range
Range
Resolution
ATI Peracetic Acid Vapor sensor 0-2 ppm (00-1704)
Maximum Range
Minimum Range
Range
Resolution
ATI Peracetic Acid Vapor sensor 0-20 ppm (00-1705)
Maximum Range
Minimum Range
Range
Resolution
ATI Phosgene Sensor 0-100 ppm (00-1016)
Maximum Range
Minimum Range
Range
Resolution
ATI Phosgene Sensor 0-2ppm (00-1015)
Maximum Range
Minimum Range
Range
Resolution
ATI Phosphine Sensor 0-10 ppm (00-1033)
Maximum Range
Minimum Range
Range
Resolution
ATI Phosphine Sensor 0-1000 ppb (00-1032)
Maximum Range
Minimum Range
Range
Resolution
ATI Phosphine Sensor 0-1000 ppm (00-1034)
Maximum Range
Minimum Range
Range
Resolution
ATI Silane Sensor 0-10 ppm (00-1035)
Maximum Range
Minimum Range
Range
Resolution
ATI Sulfur Dioxide Sensor 0-20 ppm (00-1023)
Maximum Range
Minimum Range
Range
Resolution
All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. These sensors are constructed of glass filled polycarbonate and use an electrochemical cell for gas detection The ATI Chlorine 0-2 ppm (00-1002) sensor has a detection range of 0-2 ppm, so the calibration gas you use must fall within this range. Refer to the table below for our recommended calibration gas options.
Range Range Range
Product
Range
Price
2 ppm, 3 ppm, 5 ppm, 10 ppm
C18-11 Chlorine Gas Generator

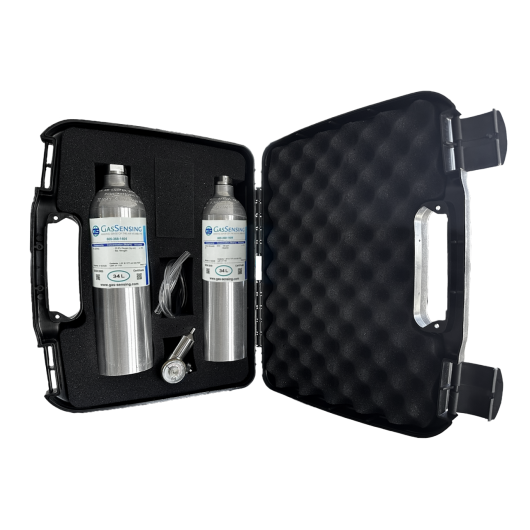

Chlorine Calibration Kit

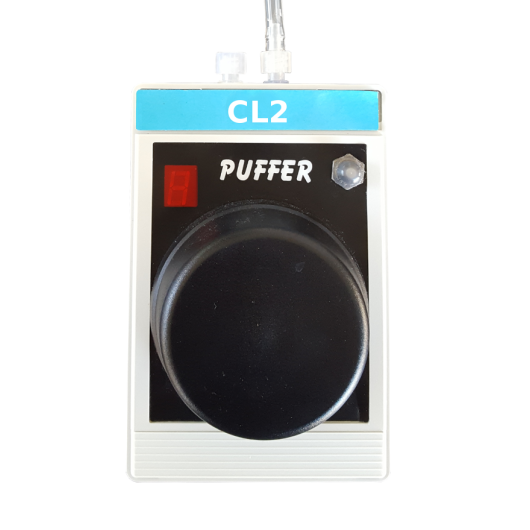

Chlorine Puffer Test Gas Generator
Â
More Information
| Manufacturer | ATI |
|---|---|
| Gas | Chlorine (Cl2) |
| Sensor Type | Electrochemical Cell |
| Range | 0-20 ppm |
| Maximum Exposure | 0-200 ppm |
| Minimum Detection Limit | 0-5 ppm |
| Accuracy | ± 5% of value |
| Resolution | 0.01 ppm |
| Standard Range | 0-20 ppm |
| Minimum Range | 0-5 ppm |
| Maximum Range | 0-200 ppm |
| Monitor sensor fits | D16 / C16 / F12 / D12 |
| Sensitivity | 1% of sensor module range |
| Operational Temperature Range | -25º to +55ºC |
| Operational RH Range | 0-95% Non-condensing |
| Warranty | 1 Year |
