ATI Nitric Oxide Sensor 0-200 ppm (00-1021)

Smart Sensor Modules:

0-200 ppm Nitric Oxide sensor with resolution of 1 ppm.

The ATI Smart Sensor is a versatile, plug-and-play gas detection solution designed for use with the D-16, F-12is, F-12D, and D-12 gas detectors. It allows for quick sensor swaps, making it ideal for industries that require continuous and reliable gas monitoring.

Nitric Oxide Information

2-3 weeks
SKU
ATI 00-1021
  $410.00

Description / ATI Nitric Oxide Sensor 0-200 ppm (00-1021)

0-200 ppm Nitric Oxide sensor with resolution of 1 ppm.

Standard Range = 0-200 ppm

Minimum Range = 0-50 ppm

Maximum Range = 0-500 ppm

Sensor modules are ATI's newest miniaturized smart sensor modules.  Each sensor module is actually a sensor, amplifier, and memory module in one compact package.  Because of this design, sensor modules can be calibrated independently and simply plugged into any detector for immediate use.  When installed in a detector, calibration data is loading into the microprocessor so that no adjustments are needed.  The result is that a detector can, for example, go from phosgene measurement to ammonia measurement in less than one minute.

Using the optional sensor keeper allows up to 4 sensors to be powered by the internal sensor keeper battery and keep sensors ready for use.  This ensures maximum accuracy in the shortest time frame possible.

The ATI Smart Sensors are compatible with the D-16, F-12is, F-12D, and D-12 gas detectors. All smart sensors are constructed of glass filled polycarbonate and use an electrochemical cell for gas detection.



Downloadable Content:

C16 Sensor specifications

All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. These sensors are constructed of glass filled polycarbonate and use an electrochemical cell for gas detection The Nitric Oxide 0-200 ppm (00-1021) sensor has a detection range of 0-200 ppm, so the calibration gas you use must fall within this range. Refer to the table below for our recommended calibration gas options.
Product Range Price
Nitric Oxide Calibration Gas
Nitric Oxide Calibration Gas
Multiple Ranges
$385.00

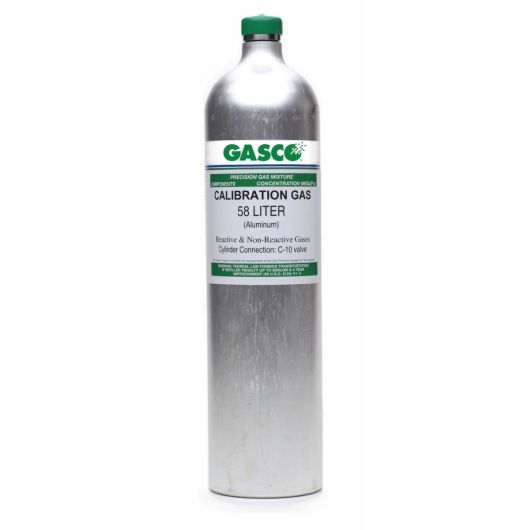

Nitric Oxide Calibration Gas - 50 ppm
Nitric Oxide Calibration Gas - 50 ppm
$357.70
Nitric Oxide Calibration Kit
Nitric Oxide Calibration Kit
25 ppm, 100 ppm, 500 ppm
$588.00
Nitric Oxide Calibration Kit - 58L
Nitric Oxide Calibration Kit - 58L
50 ppm
$851.00
Nitric Oxide Calibration Gas

Nitric Oxide Calibration Gas

$385.00

Range

Multiple Ranges
View Details
Nitric Oxide Calibration Gas - 50 ppm

Nitric Oxide Calibration Gas - 50 ppm

$357.70

Range

View Details
Nitric Oxide Calibration Kit

Nitric Oxide Calibration Kit

$588.00

Range

25 ppm, 100 ppm, 500 ppm
View Details
Nitric Oxide Calibration Kit - 58L

Nitric Oxide Calibration Kit - 58L

$851.00

Range

50 ppm
View Details


More Information

Manufacturer ATI
Gas Nitric Oxide (NO)
Sensor Type Electrochemical Cell
Range 0-200 ppm
Maximum Exposure 0-500 ppm
Minimum Detection Limit 0-50 ppm
Accuracy ± 5% of value
Resolution 1 ppm
Standard Range 0-200 ppm
Minimum Range 0-50 ppm
Maximum Range 0-500 ppm
Monitor sensor fits D16 / C16 / F12 / D12
Sensitivity 1% of sensor module range
Operational Temperature Range -25º to +55ºC
Operational RH Range 0-95% Non-condensing
Warranty 1 Year
