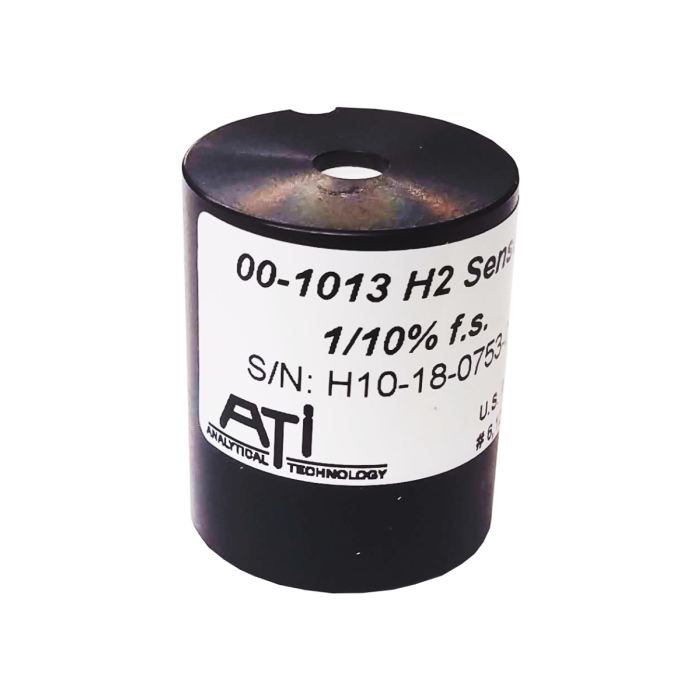

ATI Hydrogen Sensor 0-4% (00-1013)

Smart Sensor Modules:

0-4% Hydrogen sensor with a resolution of 0.01%.

Plug-in sensors store calibration data, allowing sensors to be calibrated separately from the transmitter.  This allows bench calibration (or factory calibration) of sensors to reduce the necessity for carrying calibration gas to the gas detector. The ATI Smart Sensor is a versatile, plug-and-play gas detection solution designed for use with the D-16, F-12is, F-12D, and D-12 gas detectors. It allows for quick sensor swaps, making it ideal for industries that require continuous and reliable gas monitoring.

Hydrogen Information

2-3 weeks
SKU
ATI 00-1013
  $459.00

Description / ATI Hydrogen Sensor 0-4% (00-1013)

0-4% Hydrogen sensor with a resolution of 0.01%.

     Standard Range = 0-4%

     Minimum Range = 0-1%

     Maximum Range = 0-10%

These sensors come ready to operate in any of the above preset ranges (standard, minimum, or maximum).  When you connect the Sensing Module to the Gas Transmitter, you will be asked which range you would like to use.  We list the standard range as the sensors range, but each sensor is capable of operation in all 3 ranges.

Smart sensors are calibrated to the standard range of gas detection as outlined in the specifications above. Sensor modules are ATI's newest miniaturized smart sensor modules.  Each sensor module is actually a sensor, amplifier, and memory module in one compact package.  Because of this design, sensor modules can be calibrated independently and simply plugged into any detector for immediate use.  When installed in a detector, calibration data is loading into the microprocessor so that no adjustments are needed. The result is that a detector can, for example, go from phosgene measurement to ammonia measurement in less than one minute.

Using the optional sensor keeper allows up to 4 sensors to be powered by the internal sensor keeper battery and keep sensors ready for use.  This ensures maximum accuracy in the shortest time frame possible.

The ATI Smart Sensors are compatible with the D-16, F-12is, F-12D, and D-12 gas detectors.

All smart sensors are constructed of glass-filled polycarbonate and use an electrochemical cell for gas detection.



Downloadable Content:

Model H10-18 Hydrogen Sensor Specifications



C16 Sensor specifications





Calibration Services:

All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. These sensors are constructed of glass filled polycarbonate and use an electrochemical cell for gas detection The ATI Hydrogen 0-4% (00-1013) sensor has a detection range of 0-4%, so the calibration gas you use must fall within this range. Refer to the table below for our recommended calibration gas options.

Product Range Price

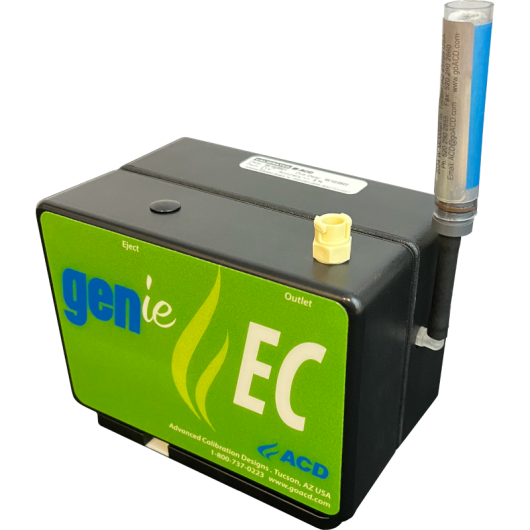

GENie EC Calibration Gas Kit
GENie EC Calibration Gas Kit
Multiple Ranges
As low as $2,547.00
Hydrogen Calibration Gas
Hydrogen Calibration Gas
Multiple Ranges
$185.00

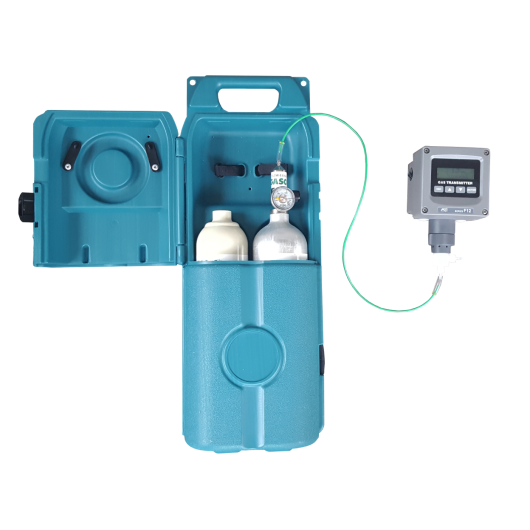

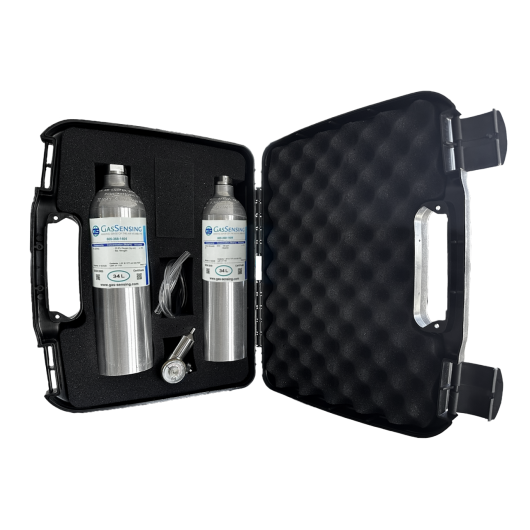

Hydrogen Calibration Kit
Hydrogen Calibration Kit
250 ppm, 500 ppm, 0.8%, 1.0%, 2.0%, 99.9%, 99.99%, 99.999%
$422.00

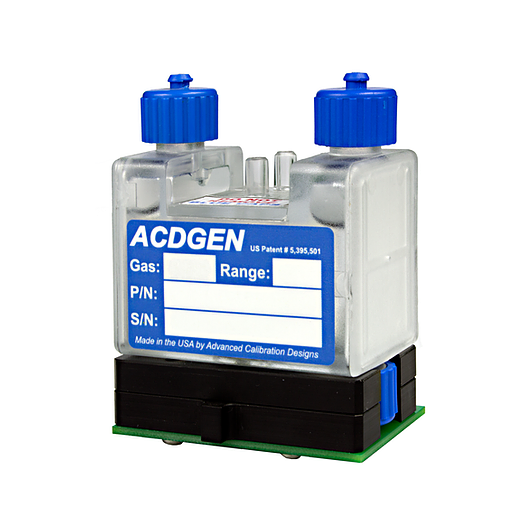

Hydrogen GENie EC Source Gas
Hydrogen GENie EC Source Gas
0.5-5 ppm
As low as $569.00

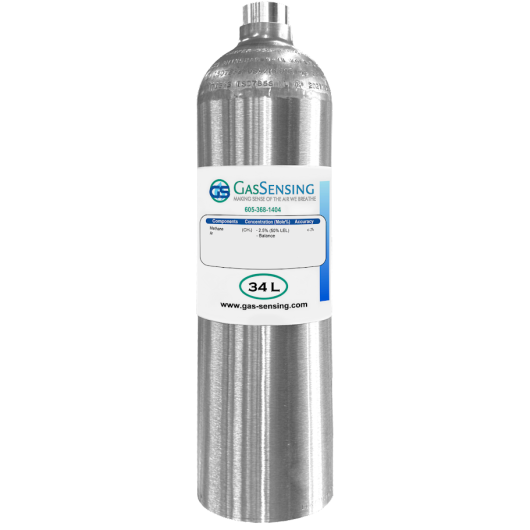

Percent Hydrogen Calibration Gas (50% LEL Hydrogen)
Percent Hydrogen Calibration Gas (50% LEL Hydrogen)
$149.40

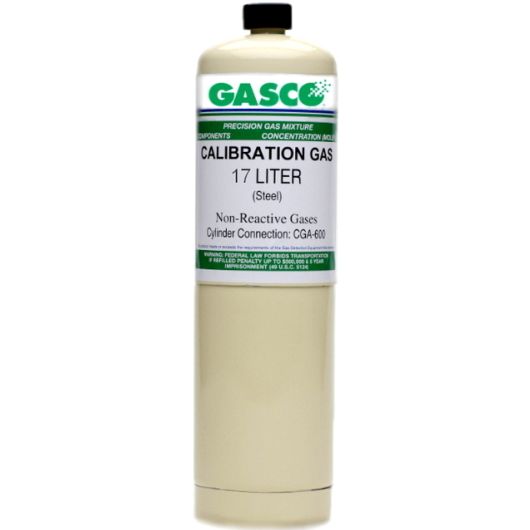

Percent Hydrogen Calibration Gas Small
Percent Hydrogen Calibration Gas Small
$93.50

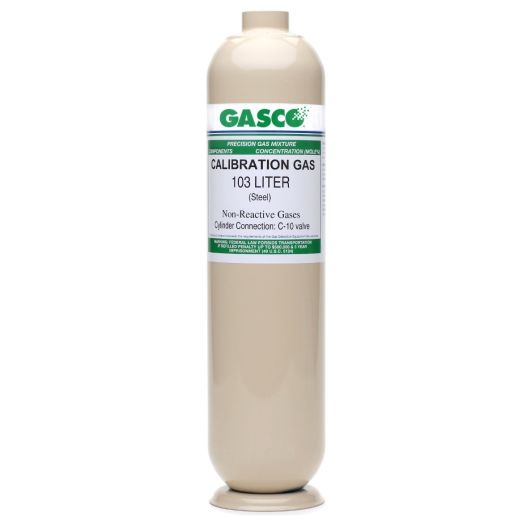

Percent Hydrogen Calibration Kit - 103L
Percent Hydrogen Calibration Kit - 103L
2% H2 Call For Price

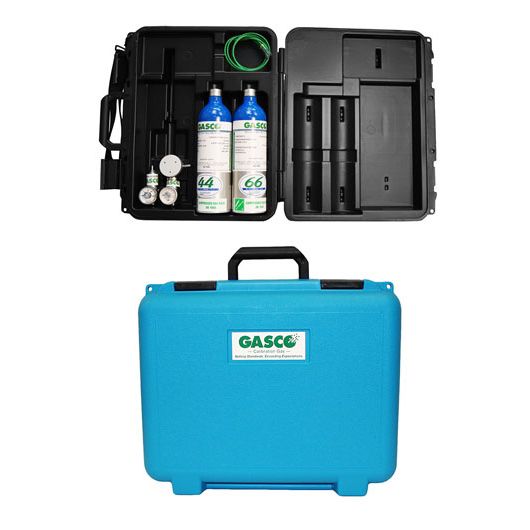

Percent Hydrogen Calibration Kit Small - 17L
Percent Hydrogen Calibration Kit Small - 17L
2% H2
$412.00
GENie EC Calibration Gas Kit

GENie EC Calibration Gas Kit

As low as $2,547.00

Range

Multiple Ranges
View Details
Hydrogen Calibration Gas

Hydrogen Calibration Gas

$185.00

Range

Multiple Ranges
View Details
Hydrogen Calibration Kit

Hydrogen Calibration Kit

$422.00

Range

250 ppm, 500 ppm, 0.8%, 1.0%, 2.0%, 99.9%, 99.99%, 99.999%
View Details
Hydrogen GENie EC Source Gas

Hydrogen GENie EC Source Gas

As low as $569.00

Range

0.5-5 ppm
View Details
Percent Hydrogen Calibration Gas (50% LEL Hydrogen)

Percent Hydrogen Calibration Gas (50% LEL Hydrogen)

$149.40

Range

View Details
Percent Hydrogen Calibration Gas Small

Percent Hydrogen Calibration Gas Small

$93.50

Range

View Details
Percent Hydrogen Calibration Kit - 103L

Percent Hydrogen Calibration Kit - 103L

Call For Price

Range

2% H2
View Details
Percent Hydrogen Calibration Kit Small - 17L

Percent Hydrogen Calibration Kit Small - 17L

$412.00

Range

2% H2
View Details


All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.

Calibration Service Request Form



More Information

Manufacturer ATI
Gas Hydrogen (H2)
Sensor Type Electrochemical Cell
Range 0-4%
Maximum Exposure 0-10%
Minimum Detection Limit 0-1%
Accuracy ± 5% of value
Resolution 0.01%
Standard Range 0-4%
Minimum Range 0-1%
Maximum Range 0-10%
Monitor sensor fits D16 / C16 / F12 / D12
Sensitivity 1% of sensor module range
Operational Temperature Range -25º to +55ºC
Operational RH Range 0-95% Non-condensing
Warranty 1 Year
