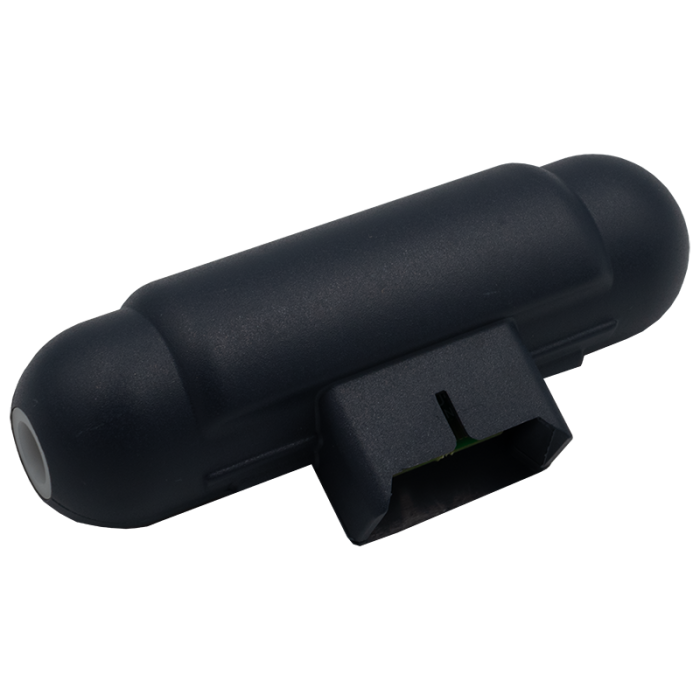

This Volatile Organic Compound (VOC) sensor head uses Photo Ionization Detector (PID) technology and will measure VOC's from 0-30 ppm at 0.01 ppm resolution while providing +/- 10% accuracy.

Full list of technical information and specifications for all Aeroqual sensors

VOC Information

Full list of Aeroqual Products

Sensor information:

Aeroqual PID Sensor Response time and specific VOC response

Aeroqual PID sensor vs GSS sensor response

Other VOC Sensors Available from Aeroqual:

VOC 0-25 ppm - GSS sensor head

VOC 0-500 ppm - GSS sensor head

VOC 0-2,000 ppm - PID sensor head

This sensor head will be a direct fit onto any Series-200, Series-300, Series-500 or Ranger Aeroqual ozone monitor.  This head can be purchased as an addition to your existing monitor, or with a new base unit.  To purchase with a base unit see our Aeroqual ozone monitor page.  If you currently have an Aeroqual ozone monitor this sensor will be a direct fit for your current monitor.

Compare the Series 300 and 500, Aeroqual Ranger monitors:

Detailed Sensor Specifications for Aeroqual ambient sensors

Click on image to expand

Sensor Type:

There are two types of Aeroqual sensors, type 1 and type 2.
The type 1 is used with the S-200, S-300, S-500, Ranger and S-900 monitors.
The type 2 is calibrated specifically with fittings on the end allowing it to be used with the ENC enclosure and in the S930

All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.

**Calibration Service Request Form **
