ATI Sulfur Dioxide Sensor 0-20 ppm (00-1023)
ATI Sulfur Dioxide Sensor 0-20 ppm (00-1023)
0-20 ppm Sulfur Dioxide sensor with a resolution of 0.1 ppm.
The ATI Smart Sensor is a versatile, plug-and-play gas detection solution designed for use with the D-16, F-12is, F-12D, and D-12 gas detectors. It allows for quick sensor swaps, making it ideal for industries that require continuous and reliable gas monitoring.
- SKU
- ATI 00-1023
Related Products
Description / ATI Sulfur Dioxide Sensor 0-20 ppm (00-1023)
0-20 ppm Sulfur Dioxide sensor with a resolution of 0.1 ppm.
Standard Range = 0-20 ppm
Minimum Range = 0-10 ppm
Maximum Range = 0-500 ppm
These sensors come ready to operate in any of the above preset ranges (standard, minimum, or maximum). When you connect the Sensing Module to the Gas Transmitter, you will be asked which range you would like to use. We list the standard range as the sensors range, but each sensor is capable of operation in all 3 ranges.
Smart sensors are calibrated to the standard range of gas detection as outlined in the specifications above. Sensor modules are ATI's newest miniaturized smart sensor modules. Each sensor module is actually a sensor, amplifier, and memory module in one compact package. Because of this design, sensor modules can be calibrated independently and simply plugged into any detector for immediate use. When installed in a detector, calibration data is loading into the microprocessor so that no adjustments are needed. The result is that a detector can, for example, go from phosgene measurement to ammonia measurement in less than one minute.
Using the optional sensor keeper allows up to 4 sensors to be powered by the internal sensor keeper battery and keep sensors ready for use. This ensures maximum accuracy in the shortest time frame possible.
The ATI Smart Sensors are compatible with the D-16, F-12is, F-12D, and D-12 gas detectors.
All smart sensors are constructed of glass filled polycarbonate and use an electrochemical cell for gas detection.
Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution Maximum Range Minimum Range Range Resolution
Product
Maximum Range
Minimum Range
Range
Resolution
Price
0-500 ppm
0-100 ppm
0-100 ppm
1 ppm
0-2000 ppm
0-200 ppm
0-2000 ppm
1 ppm
0-200 ppm
0-10 ppm
0-20 ppm
0.1 ppm
0-500 ppm
0-50 ppm
0-200 ppm
1 ppm
0-2000 ppm
0-500 ppm
0-2000 ppm
1 ppm
0-2000 ppm
0-500 ppm
0-1000 ppm
1 ppm
0-500 ppm
0-50 ppm
0-200 ppm
1 ppm
0-200 ppm
0-10 ppm
0-100 ppm
0.1 ppm
0-2000 ppm
0-500 ppm
0-1000 ppm
1 ppb
0-5 ppm
0-1 ppm
0-2 ppm
0.01 ppm
0-200 ppm
0-5 ppm
0-20 ppm
0.1 ppm
0-1.5%
0-0.2%
0-1%
0.01%
0-1000 ppm
0-50 ppm
0-200 ppm
1 ppm
0-5 ppm
0-1 ppm
0-1 ppm
0.01 ppm
0-1000 ppm
0-200 ppm
0-1000 ppm
1.0 ppm
0-5 ppm
0-1 ppm
0-2 ppm
0.01 ppm
0-200 ppm
0-5 ppm
0-20 ppm
0.1 ppm
0-5 ppm
0-1 ppm
0-2 ppm
0.01 ppm
0-200 ppm
0-5 ppm
0-20 ppm
0.01 ppm
0-200 ppm
0-10 ppm
0-10 ppm
0.1 ppm
0-2000 ppm
0-500 ppm
0-1000 ppb
1 ppb
0-200 ppm
0-100 ppm
0-100 ppm
1 ppm
0-200 ppm
0-20 ppm
0-20 ppm
0.1 ppm
0-20 ppm
0-5 ppm
0-20 ppm
0.1 ppm
0-5 ppm
0-1 ppm
0-2 ppm
0.01 ppm
0-2000 ppm
0-500 ppm
0-1000 ppm
1 ppm
0-200 ppm
0-20 ppm
0-20 ppm
0.1 ppm
0-200 ppm
0-10 ppm
0-10 ppm
0.1 ppm
0-200 ppm
0-10 ppm
0-1000 ppb
1 ppb
0-500 ppm
0-50 ppm
0-1000 ppm
1 ppm
0-200 ppm
0-10 ppm
0-20 ppm
0.1 ppm
0-200 ppm
0-10 ppm
0-20 ppm
0.1 ppm
0-200 ppm
0-10 ppm
0-20 ppm
0.1 ppm
0-200 ppm
0-10 ppm
0-20 ppm
0.1 ppm
0-2000 ppm
0-200 ppm
0-1000 ppm
1 ppm
0-100 ppm
0-10 ppm
0-20 ppm
0.1 ppm
0-200 ppm
0-10 ppm
0-10 ppm
0.1 ppm
0-2000 ppb
0-500 ppb
0-1000 ppb
1 ppb
0-2000 ppm
0-500 ppm
0-2000 ppm
1 ppm
0-10%
0-1%
0-4%
0.01%
0-200 ppm
0-10 ppm
0-50 ppm
0.1 ppm
0-1000 ppm
0-200 ppm
0-500 ppm
1 ppm
0-5 ppm
0-1 ppm
0-2 ppm
0.01 ppm
0-200 ppm
0-5 ppm
0-20 ppm
0.1 ppm
0-100%
0-20%
0-500 ppm
0-50 ppm
0-200 ppm
1 ppm
0-200 ppm
0-10 ppm
0-20 ppm
0.1 ppm
0-500 ppm
0-50 ppm
0-200 ppm
1 ppm
0-25%
0-5%
0-25%
0.01%
0-2,000 ppb
0-500 ppb
0-1000 ppb
1 ppb
0-1000 ppm
0-200 ppm
0-1000 ppm
1 ppm
0-5 ppm
0-0.01 ppm
0-2 ppm
0.01 ppm
0-200 ppm
0-0.1 ppm
0-20 ppm
0.1 ppm
0-5 ppm
0-1 ppm
0-2 ppm
0.1 ppm
0-100 ppm
0-10 ppm
0-20 ppm
1 ppm
0-100 ppm
0-5 ppm
0-10 ppm
0.1 ppm
0-5 ppm
0-1 ppm
0-2 ppm
0.01 ppm
0-200 ppm
0-10 ppm
0-10 ppm
0.1 ppm
0-2000 ppb
0-500 ppb
0-1000 ppb
1 ppb
0-2000 ppm
0-200 ppm
0-1000 ppm
1 ppm
0-200 ppm
0-10 ppm
0-10 ppm
0.1 ppm
0-200 ppm
0-10 ppm
0-20 ppm
0.1 ppm
ATI Acetic Acid vapor Sensor 0-100 ppm (00-1045)
ATI Acetylene Sensor 0-500 ppm (00-1057)
ATI Acid Gases Sensor 0-20 ppm (00-1038)
ATI Alcohol Sensor 0-200 ppm (00-1043)
ATI Alcohol Sensor 0-2000 ppm (00-1044)
ATI Ammonia Sensor 0-1000 ppm (00-1011)
ATI Ammonia Sensor 0-200 ppm (00-1010)
ATI Arsine Sensor 0-10 ppm (00-1025)
ATI Arsine Sensor 0-1000 ppb (00-1024)
ATI Bromine Sensor 0-2 ppm (00-1000)
ATI Bromine Sensor 0-20 ppm (00-1001)
ATI Carbon Dioxide Sensor 0-1% (00-1886)
ATI Carbon Monoxide Sensor 0-200 ppm (00-1012)
ATI Chlorine Dioxide Sensor 0-1 ppm (00-1425)
ATI Chlorine Dioxide Sensor 0-1000 ppm (00-1359)
ATI Chlorine Dioxide Sensor 0-2 ppm (00-1004)
ATI Chlorine Dioxide Sensor 0-20 ppm (00-1005)
ATI Chlorine Sensor 0-2 ppm (00-1002)
ATI Chlorine Sensor 0-20 ppm (00-1003)
ATI Diborane Sensor 0-10 ppm (00-1027)
ATI Diborane Sensor 0-1000 ppb (00-1026)
ATI Dimethylamine (DMA) Sensor 0-100 ppm (00-1450)
ATI Ethylene Oxide Sensor 0-20 ppm (00-1039)
ATI Flourine Sensor 0-20 ppm (00-1007)
ATI Fluorine Sensor 0-2 ppm (00-1006)
ATI Formaldehyde Sensor 0-1000 ppm (00-1349)
ATI Formaldehyde Sensor 0-20 ppm (00-1040)
ATI Germane Sensor 0-10 ppm (00-1029)
ATI Germane Sensor 0-1000 PPB (00-1028)
ATI Hydrocarbon Sensor (00-1516)
ATI Hydrogen Bromide Sensor 0-20 ppm (00-1455)
ATI Hydrogen Chloride Sensor 0-20 ppm (00-1017)
ATI Hydrogen Cyanide Sensor 0-20 ppm (00-1018)
ATI Hydrogen Fluoride Sensor 0-20 ppm (00-1019)
ATI Hydrogen Peroxide Sensor 0-1000 ppm (00-1169)
ATI Hydrogen Peroxide Sensor 0-20 ppm (00-1042)
ATI Hydrogen Selenide Sensor 0-10 ppm (00-1031)
ATI Hydrogen Selenide Sensor 0-1000 ppb (00-1030)
ATI Hydrogen Sensor 0-2000 ppm (00-1041)
ATI Hydrogen Sensor 0-4% (00-1013)
ATI Hydrogen Sulfide Sensor 0-50 ppm (00-1020)
ATI Hydrogen Sulfide Sensor 0-500 ppm (00-1469)
ATI Iodine Sensor 0-2 ppm (00-1036)
ATI Iodine Sensor 0-20 ppm (00-1037)
ATI Methane Sensor 0-100% LEL (00-1883)
ATI Nitric Oxide Sensor 0-200 ppm (00-1021)
ATI Nitrogen Dioxide Sensor 0-20 ppm (00-1022)
ATI NOx Sensor 0-200 ppm (00-1181)
ATI Oxygen Sensor 0-25% (00-1014)
ATI Ozone Sensor 0-1,000 ppb (00-1163)
ATI Ozone Sensor 0-1000 ppm (00-1358)
ATI Ozone Sensor 0-2 ppm (00-1008)
ATI Ozone Sensor 0-20 ppm (00-1009)
ATI Peracetic Acid Vapor sensor 0-2 ppm (00-1704)
ATI Peracetic Acid Vapor sensor 0-20 ppm (00-1705)
ATI Phosgene Sensor 0-100 ppm (00-1016)
ATI Phosgene Sensor 0-2ppm (00-1015)
ATI Phosphine Sensor 0-10 ppm (00-1033)
ATI Phosphine Sensor 0-1000 ppb (00-1032)
ATI Phosphine Sensor 0-1000 ppm (00-1034)
ATI Silane Sensor 0-10 ppm (00-1035)
ATI Sulfur Dioxide Sensor 0-20 ppm (00-1023)
All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. These sensors are constructed of glass filled polycarbonate and use an electrochemical cell for gas detection The ATI Sulfur Dioxide 0-20 ppm (00-1023) sensor has a detection range of 0-20 ppm, so the calibration gas you use must fall within this range. Refer to the table below for our recommended calibration gas options.
| Product | Range | Price |
|---|---|---|
 Sulfur Dioxide Calibration Gas
|
Multiple Ranges |
$220.00
|
 Sulfur Dioxide Calibration Gas - 10 ppm
|
$288.50
|
|
 Sulfur Dioxide Calibration Kit
|
5 ppm, 10 ppm, 15 ppm, 20 ppm, 25 ppm |
$472.00
|
 Sulfur Dioxide Calibration Kit - 58L
|
10 ppm |
$909.00
|
Sulfur Dioxide Calibration Gas
Range

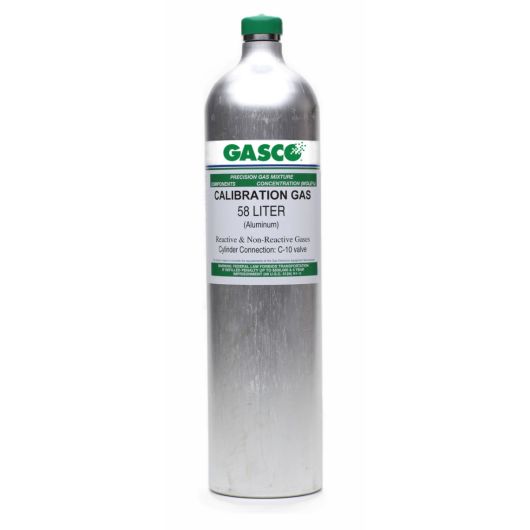

Sulfur Dioxide Calibration Gas - 10 ppm
Range
Sulfur Dioxide Calibration Kit
Range

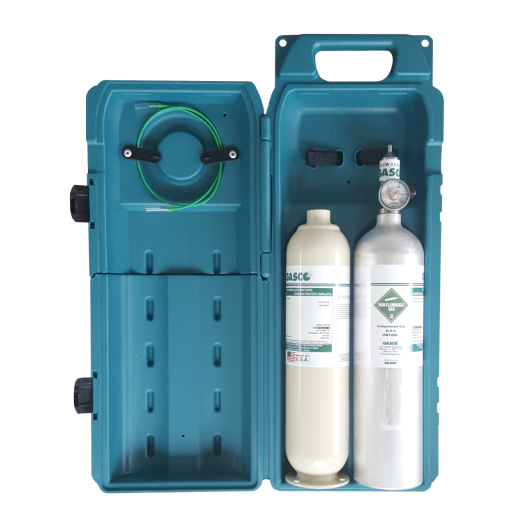

Sulfur Dioxide Calibration Kit - 58L
Range
All sensors require a yearly calibration to ensure your gas measurements are accurate and performing within manufacturer standards. This page is desiccated to the individual manufacturers we represent and their specific calibration procedures.Â
Calibration Service Request Form
Â
Â
More Information
| Manufacturer | ATI |
|---|---|
| Gas | Sulfur Dioxide (SO2) |
| Sensor Type | Electrochemical Cell |
| Range | 0-20 ppm |
| Maximum Exposure | 0-500 ppm |
| Minimum Detection Limit | 0-10 ppm |
| Accuracy | ± 5% of value |
| Resolution | 0.1 ppm |
| Standard Range | 0-20 ppm |
| Minimum Range | 0-10 ppm |
| Maximum Range | 0-200 ppm |
| Monitor sensor fits | D16 / C16 / F12 / D12 |
| Sensitivity | 1% of sensor module range |
| Operational Temperature Range | -25º to +55ºC |
| Operational RH Range | 0-95% Non-condensing |
| Warranty | 1 Year |
